Search results for: 'L/2@800-1000nm'

Home
Search results for: 'L/2@800-1000nm'

Crystalline Quartz Waveplates

Grouped product items
SKU	Wavelength, nm	Retardation	Specifications	Stock Qty	Price	Add to cart
9326682	815	L/2	Crystalline Quartz Waveplates L/2@815nm AR coatings: AR/AR @ 815 nm Clear Aperture: 25.4 Configuration: Optically contacted Material: Crystalline Quartz Mount: Unmounted Retardation order: Zero order Retardation tolerance: ±λ/500 @ 20 °C Retardation: λ/2 Surface quality, S-D: 20-10 Wavelength, nm: 815 Wedge / Parallelism error: < 10 arcsec	2	€180.00
9650375 NEW	800	L/2	Crystalline Quartz Waveplates L/2@800nm Surface quality, S-D: 20-10 Wavelength, nm: 800 Transmitted wavefront distortion, PV: <λ/8 @ 632.8 nm Retardation tolerance: +/- λ/300@ 20 °C Retardation order: Low order Mount: 25mm +0/-0.1 mm x 4 +/- 0.1 AR coatings: AR/AR (R<0.25 %) @ 800 nm LIDT: >5J/cm2 Material: Crystalline Quartz Clear Aperture: >18 Retardation: λ/2	2	€110.00
9413521	800	L/2	Crystalline Quartz Waveplates L/2@800nm AR coatings: AR (R<0.25%) on each surface Clear Aperture: >10 LIDT: >500 MW/cm2 Material: Crystalline Quartz Retardation order: Low order Retardation tolerance: ±λ/300 @ 20 °C Retardation: λ/2 Surface quality, S-D: 20-10 Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm Wavelength, nm: 800 Wedge / Parallelism error: <3 arcsec	26	€150.00
9323672	854	L/2	Crystalline Quartz Waveplates L/2@854nm AR coatings: AR/AR @ 854 nm Clear Aperture: 18 Configuration: Air spaced LIDT: 5 J/cm² for 10 ns pulses @ 1064 nm Material: Crystalline Quartz Mount: 25.4mm Retardation order: Zero order Retardation tolerance: ±λ/500 @ 20 °C Retardation: λ/2 Surface quality, S-D: 20-10 Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm Wavelength, nm: 854 Wedge / Parallelism error: < 3 arcsec	1	€210.00
9320982	810	L/2	Crystalline Quartz Waveplates L/2@810nm AR coatings: R<0.2% each surface Clear Aperture: 18 LIDT: 5 J/cm² for 10 ns pulses @ 1064 nm Material: Crystalline Quartz Mount: 25.4mm Retardation order: Zero order Retardation tolerance: ±λ/500 @ 20 °C Retardation: λ/2 Surface quality, S-D: 20-10 Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm Wavelength, nm: 810 Wedge / Parallelism error: < 3 arcsec	0	€263.00	Out of stock
9513631	980	L/2	Crystalline Quartz Waveplates L/2@980nm AR coatings: (R<0.2%) on each surface Clear Aperture: >18 LIDT: >10 J/cm² for 10 ns pulses @ 1064 nm Material: Crystalline Quartz Mount: Ø25.4 x 6 mm black anodized metal mount Parallelism error: <3 arcsec Retardation order: Zero order Retardation tolerance: λ/300 @ 20 °C Retardation: λ/2 Surface quality, S-D: 20-10 Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm Wavelength, nm: 980	1	€210.00

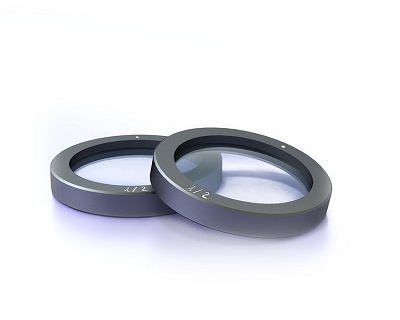

Achromatic (Broadband) waveplates

Grouped product items
SKU	Wavelength, nm	Retardation	Specifications	Stock Qty	Price	Add to cart
9401170	620-1300	L/2	Achromatic (Broadband) Waveplates L/2@620-1300nm Clear Aperture: >10 Coatings: AR (R<0.5%) on each surface LIDT: >5 J/cm² @ 1064 nm, 10 ns Material: Crystalline quartz and MgF2 Mount: Mounted in 15 mm diameter mount Retardation tolerance: ±λ/30 @ 20°C Retardation: λ/2 Surface quality, S-D: 40-20 Transmitted wavefront distortion, PV: <λ/4 @ 632.8 nm Wavelength, nm: 620-1300 Wedge / Parallelism error: <30 arcsec	3	€400.00
9026362	700-1000	L/2	Achromatic (Broadband) Waveplates L/2@700-1000nm AR coatings: BBAR coated Clear Aperture: >12 LIDT: >5J/cm² @ 1064 nm, 10 ns, 10 Hz Material: Crystalline quartz and MgF2 Mount: Mounted in Ø25.4 mm black anodized metal mount Retardation tolerance: ±λ/100 @ 20 °C Retardation: λ/2 Surface quality, S-D: 40-20 Transmitted wavefront distortion, PV: <λ/4 @ 632.8 nm Wavelength, nm: 700-1000 Wedge / Parallelism error: <30 arcsec	1	€165.00
9008870	630-1300	L/2	Achromatic (Broadband) Waveplates L/2@630-1300nm AR coatings: BBAR coated on each surface Clear Aperture: >12.7 LIDT: >5 J/cm² @ 1064 nm, 10 ns Material: Crystalline quartz and MgF2 Mount: Mounted in Ø25.4 mm black anodized metal mount Retardation tolerance: ±λ/30 @ 20°C Retardation: λ/2 Surface quality, S-D: 40-20 Transmitted wavefront distortion, PV: <λ/8 @ 632.8 nm Wavelength, nm: 630-1300 Wedge / Parallelism error: <30 arcsec	3	€465.00

High Energy Waveplates

Grouped product items
SKU	Wavelength, nm	Retardation	Specifications	Stock Qty	Price	Add to cart
9325532	800	L/2	High Energy Waveplates L/2@800nm AR coatings: R<0.2% each surface Clear Aperture: >18 Configuration: Optically bonded on UVFS (C7980) substrate LIDT: >15 J/cm2 for 10 ns pulses @ 1064 nm Material: Crystalline Quartz Mount: Mounted in 25.4mm diameter mount Retardation order: 0 Retardation tolerance: ±λ/500 @ 20 °C Retardation: λ/2 Surface quality, S-D: 20-10 Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm Wavelength, nm: 800 Wedge / Parallelism error: < 10 arcsec	5	€350.00
9430403	980	L/2	High Energy Waveplates L/2@980nm Acceptance angle, °: 11 AR coatings: AR(R<0.2%) on each surface Clear Aperture: >18 LIDT: >20 J/cm² @ 1064 nm; 10 ns; 10 Hz Material: Crystalline quartz or MgF2 Mount: Ø25.4 x 6 mm black anodized aluminum Retardation order: 0 Retardation tolerance: λ/300 @ 20 °C Retardation: λ/2 Surface quality, S-D: 20-10 Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm Wavelength, nm: 980 Wedge / Parallelism error: <3 arcsec	1	€350.00
9379247	800	L/2	High Energy Waveplates L/2@800nm Acceptance angle, °: 11 AR coatings: R<0.2% @ 800 nm on each surface Clear Aperture: >18 Configuration: Optically bonded on UVFS (C7980) substrate LIDT: >20 J/cm² @ 1064 nm; 10 ns; 10 Hz Material: Crystalline Quartz Mount: Ø25.4 x 6 mm black anodized aluminum Retardation order: 0 Retardation tolerance: λ/300 @ 20 °C Retardation: λ/2 Surface quality, S-D: 20-10 Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm Wavelength, nm: 800 Wedge / Parallelism error: <3 arcsec	1	€350.00

Low Order Dual Wavelength Waveplates

Grouped product items
SKU	Wavelength, nm	Retardation	Specifications	Stock Qty	Price	Add to cart
9538133	800 400	L/4 L/2	Low Order Dual Wavelength Waveplates L/4@800nm+L/2@400nm Wavelength, nm: 800 AR coatings: R<0.5% @ 800 + 400 nm on each surface Clear Aperture: >18 LIDT: >5 J/cm² @ 1064 nm; 10 ns; 10 Hz Material: Crystalline Quartz Mount: Ø25.4 x 6 mm black anodized aluminum Parallelism error: <30 arcsec Retardation: λ/4 @ 800 nm + λ/2 @ 400 nm Retardation order: Multiple order Retardation tolerance: λ/80 @ 20 °C Surface quality, S-D: 20-10 Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm	3	€205.00
9538073	800 400	L/2 L/4	Low Order Dual Wavelength Waveplates L/2@800nm+L/4@400nm Wavelength, nm: 800 AR coatings: R<0.5% @ 800 + 400 nm on each surface Clear Aperture: >18 LIDT: >5 J/cm² @ 1064 nm; 10 ns; 10 Hz Material: Crystalline Quartz Mount: Ø25.4 x 6 mm black anodized aluminum Parallelism error: <30 arcsec Retardation: λ/2 @ 800 nm + λ/4 @ 400 nm Retardation order: Multiple order Retardation tolerance: λ/100 @ 20 °C Surface quality, S-D: 20-10 Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm	3	€205.00
9537963	800 400	L L/2	Low Order Dual Wavelength Waveplates L@800nm+L/2@400nm Wavelength, nm: 400 AR coatings: R<0.5% @ 800 + 400 nm on each surface Clear Aperture: >18 LIDT: >5 J/cm² @ 1064 nm; 10 ns; 10 Hz Material: Crystalline Quartz Mount: Ø25.4 x 6 mm black anodized aluminum Parallelism error: <30 arcsec Retardation: λ @ 800 nm + λ/2 @ 400 nm Retardation order: Multiple order Retardation tolerance: λ/90 @ 20 °C Surface quality, S-D: 20-10 Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm	1	€205.00
