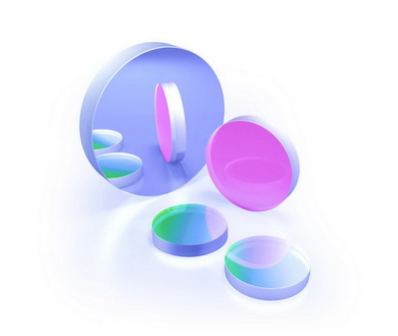

HR Laser Line Mirrors

Is a formal quotation necessary to order?

If so, please fill the following form. Do not forget to specify SKUs of the items and Your billing information:

Loading...
Page: first prev next last
Grouped product items
SKU Specifications Stock Qty Price Add to cart
9000150
Adhesion and durability: Per MIL-C-675A
Thickness, mm: 15 (±0.1)
Angle of Incidence (AOI), °: 45
Material: BK7
Clear Aperture: >85
Surface quality, S-D: 40-20
Required documents: Reflectivity curve
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1: HR Rs>99.5%@750-850nm, Rp>98.5%@750-850nm, GDD<100fs2
S2: NA
Damage threshold: > 1 J/cm2 @ 300 ps, 10 Hz
Dimensions, mm: Ø85 (+0.0/-0.1)
4
€266.00
9001140
Angle of Incidence (AOI), °: 45°
Clear aperture: >90 %
Coating adhesion and durability: Per MIL-C-675A
Coatings on S1: HR(Rs>99.5/ Rp>98.5%)@266 nm
Coatings on S2: uncoated
Dimensions, mm: Ø38.1 (+0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: λ/8@ 633 nm
Material: UVFS
Our ref: MI-266-38.1-5-45-UV
Surface quality, S-D: 20-10
Thickness, mm: 5 (±0.1)
1
€78.00
9001610
Angle of Incidence (AOI), °: 45
Central wavelength, nm: 970-990
Protective chamfers: 0,1-0,2mm@45deg on all facets;
Chips: <0,1 mm.
Clear Aperture: 100%
Dimensions, mm: 10x12
Material: UVFS C7980 0F
Other surfaces: uncoated, grinded, not polished;
Reflectivity, %: HRp>99.3%, HRs>99.8%
S1 Flatness, PV: λ/8@ 633 nm
S1 Surface quality, S-D: 20-10
S1: surface cut at 45 deg (+/-3arcmin)
Thickness, mm: 3
72
€42.00
9011101
Adhesion and durability: Per MIL-C-675C
Angle of Incidence (AOI), °: 45
Circumference finish: fine grounding
Clear Aperture: >90
Coatings on S1: HR(Rs>99.8%;Rp>98.5%)@750-850nm
Damage threshold: > 1J/cm2 @ 300 ps 10Hz 800 nm
Dimensions, mm: 80 x 25 (+0.0/-0.5)
Group Delay Dispersion: < ± 100 fs2
Material: BK7
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 20-10
S2: fine grounding
Thickness, mm: 20 (±0.2)
Wedge / Parallelism error: <5 arcmin
2
€47.00
9011941
Chips: <0,2 mm
Clear aperture: 3.9 mm x 1,2mm (as per drawing)
Coatings:
Dimensions A x B x C, mm: 4.10 mm (+0/-0.1 mm) x 1.50 (+/-0.05 mm)
S1 Flatness, PV IR S2 Flatness, PV: <λ/2@ 632.8 nm
LIDT: >5 kW/cm^2 @ 1064 nm
Material: N-BK7
Parallelism error: <1 arcmin
S1: HR(Rp>99%)@ 900-950 nm, AOI=45deg
S2: uncoated
Surface quality, S1/S2: 40-20 S-D
Thickness, mm: 1.0 (±0.1 mm)
7
€4.00
9025512
Side surfaces: uncoated, grinded, not polished
Thickness, mm: 5 (+/-0.1) mm
S2: uncoated, grinded, not polished
S1: HR@1010-1050nm, AOI 0-10 deg, HRs >99.8%, HRp >99.8%
Material: UVFS JGS1
Dimensions A x B x C, mm: 7x12 (+0.0/-0.1) mm
Protective chamfers: 0.1-0.2mm@45deg on all facets
3
€28.00
9302040
Angle of Incidence (AOI), °: 45
Central wavelength, nm: 852
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5/>99.0
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 852
Wedge / Parallelism error: <1 arcmin
4
€52.00
9302090
Angle of Incidence (AOI), °: 45
Central wavelength, nm: 360-440
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness, mm: 8
Wavelength, nm: 360-440
Wedge / Parallelism error: <5 arcmin
2
€211.00
9302210
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0.05/-0.10)
Dimensions, mm: 40
Material: UVFS (C7980)
Reflectivity, %: >99.3
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1054-1074
Wedge / Parallelism error: <1 arcmin
1
€103.00
9302290
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness, mm: 3
Wavelength, nm: 550-595
Wedge / Parallelism error: <1 arcmin
1
€46.00
9302320
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 1
Wavelength, nm: 632.8
Wedge / Parallelism error: <1 arcmin
1
€46.00
9302330
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 780
Wedge / Parallelism error: <1 arcmin
1
€40.00
9302380
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 5.5
Material: BK7
ROC S1, mm: -3400
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness, mm: 2
Wavelength, nm: 1535
Wedge / Parallelism error: <1 arcmin
4
€94.00
9302550
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 397
Wedge / Parallelism error: <1 arcmin
1
€56.00
9302670
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1064-1120
Wedge / Parallelism error: <1 arcmin
1
€46.00
9302790
Angle of Incidence (AOI), °: 45
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 790
Wedge / Parallelism error: <1 arcmin
1
€59.00
9302850
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 7 x 12
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
5
€36.00
9302920
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness, mm: 3
Wavelength, nm: 266
Wedge / Parallelism error: <1 arcmin
5
€68.00
9303040
Angle of Incidence (AOI), °: 0
Chips: <0.1 mm
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.25)
Dimensions, mm: 50.8
Material: BK7
Protective chamfers: <0.5 mm x 45°
Reflectivity, %: >99/>99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 532
Wedge / Parallelism error: <1 arcmin
1
€68.00
9303110
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.8/>99.3
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 527-532
Wedge / Parallelism error: <1 arcmin
2
€51.00
9303130
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€35.00
9303230
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 76.2
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
1
€130.00
9303300
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.25)
Dimensions, mm: 50
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 527-532
Wedge / Parallelism error: <1 arcmin
3
€63.00
9303390
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 12.5
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness, mm: 2
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€40.00
9303430
Angle of Incidence (AOI), °: 0
Chips: <0.1 mm
Clear aperture: >90
Dimensions, mm: 20
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-5
Thickness, mm: 5
Wavelength, nm: 380-420
Wedge / Parallelism error: <1 arcmin
1
€36.00
9303490
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 3.175
Wavelength, nm: 266
Wedge / Parallelism error: <1 arcmin
5
€58.00
9303540
Angle of Incidence (AOI), °: 15
Chips: <0.1 mm
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 805-825
Wedge / Parallelism error: <1 arcmin
7
€46.00
9303640
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 852
Wedge / Parallelism error: <1 arcmin
5
€52.00
9303650
Angle of Incidence (AOI), °: 45
Central wavelength, nm: 1550
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV IR S2 Flatness, PV: <λ/8
Surface quality, S-D: 20/10
Thickness, mm: 6
30
€36.00
9318991
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 254
Wedge / Parallelism error: <1 arcmin
1
€62.00
9319311
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25
Material: UVFS
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 975
Wedge / Parallelism error: <1 arcmin
2
€60.00
9319981
Angle of Incidence (AOI), °: 44-46
Central wavelength, nm: 1030
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 30 x 30
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
2
€79.00
9320642
Angle of Incidence (AOI), °: 45
Clear aperture: >80
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1020-1080
Wedge / Parallelism error: <1 arcmin
1
€49.00
9320752
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99
S1 Surface quality, S-D: 40-20
Thickness, mm: 3
Wavelength, nm: 980
Wedge / Parallelism error: <1 arcmin
1
€46.00
9320812
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1540-1550
Wedge / Parallelism error: <30 arcsec
3
€62.00
9320842
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Coatings: S1:HR@532+(R=97.5±0.5%)@755.
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: 97.5
S1 Surface quality, S-D: 20-10
S2: AR@755nm
Thickness, mm: 5
Wavelength, nm: 532/755
Wedge / Parallelism error: <1 arcmin
1
€295.00
9320902
Angle of Incidence (AOI), °: 0-30
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 2
Wavelength, nm: 970-990
Wedge / Parallelism error: <1 arcmin
5
€45.00
9321502
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness, mm: 2
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€52.00
9321522
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 20 x 40
Material: BK7
Reflectivity, %: >99
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1550
Wedge / Parallelism error: <1 arcmin
1
€133.00
9322132
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.6
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 480
Wedge / Parallelism error: <1 arcmin
1
€69.00
9322162
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.6
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 480
Wedge / Parallelism error: <1 arcmin
1
€56.00
9322172
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 780
Wedge / Parallelism error: <1 arcmin
1
€83.00
9322192
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 780
Wedge / Parallelism error: <1 arcmin
5
€52.00
9322232
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 780
Wedge / Parallelism error: <1 arcmin
1
€69.00
9322742
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€30.00
9323322
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 50
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 527-532
Wedge / Parallelism error: <1 arcmin
1
€63.00
9323862
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.2
Dimensions, mm: 20
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: +0/-0.2
Thickness, mm: 5
Wavelength, nm: 780-820
Wedge / Parallelism error: <1 arcmin
18
€46.00
9324272
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 40-20
Thickness, mm: 2
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€30.00
9324342
Angle of Incidence (AOI), °: 22.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.7
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€83.00
9324992
Angle of Incidence (AOI), °: 22.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
2
€65.00
9325632
Angle of Incidence (AOI), °: 22.5
Clear aperture: >90
Dimensions, mm: 25
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1550
Wedge / Parallelism error: <1 arcmin
1
€62.00
9325662
Angle of Incidence (AOI), °: 45
Central wavelength, nm: 1550
Clear aperture: >90
Comments: -
Comments: -
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Protective chamfers:
ROC S1, mm: -
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Shape: Round
Material: BK7
S1 Flatness, PV IR S2 Flatness, PV: <λ/8
Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Configuration: Flat/Flat
Wavelength, nm: 1550
Wedge / Parallelism error: <1 arcmin
Wedge / Parallelism error: No wedge
7
€58.00
9326852
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
10
€30.00
9326932
Angle of Incidence (AOI), °: 45
Chips: <0.1 mm
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12 x 15
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.3/>99.7
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
9
€40.00
9327202
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
ROC S1, mm: -2800
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 1064
5
€56.00
9327402
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 2000
Wedge / Parallelism error: <1 arcmin
2
€68.00
9327412
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 2000
Wedge / Parallelism error: <1 arcmin
1
€62.00
9327822
Angle of Incidence (AOI), °: 45
Central wavelength, nm: 750-850
Clear aperture: >90
Dimensions tolerance, mm: +/-0.2
Dimensions, mm: 30
Material: BK7
Reflectivity, %: >99
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 750-850
Wedge / Parallelism error: <1 arcmin
2
€150.00
9327832
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 50.8
Material: BK7
Reflectivity, %: >99.5
Thickness, mm: 8
Wavelength, nm: 527-532
Wedge / Parallelism error: <1 arcmin
1
€63.00
9327912
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25
Material: UVFS
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
8
€75.00
9328112
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 30
Material: BK7
Reflectivity, %: Rp>99.5
Thickness, mm: 6
Wavelength, nm: 1064+532
Wedge / Parallelism error: <1 arcmin
25
€50.00
9328142
Angle of Incidence (AOI), °: 45
Chips: <0.1 mm
Clear aperture: >90
Dimensions, mm: 30
Material: UVFS
Reflectivity, %: >80/>99.5
S1 Flatness, PV IR S2 Flatness, PV: <λ/8
Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 632 + 1064
Wedge / Parallelism error: <1 arcmin
67
€44.00
9328542
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 38.1
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 8
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
10
€70.00
9328802
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€96.00
9328812
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 343
Wedge / Parallelism error: <1 arcmin
3
€96.00
9328872
Angle of Incidence (AOI), °: 0-45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 767
Wedge / Parallelism error: <1 arcmin
4
€46.00
9328912
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€30.00
9329752
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38.1
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
1
€56.00
9330053
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
ROC S1, mm: -1500
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1064
1
€68.00
9330073
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
ROC S1, mm: -2100
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
3
€68.00
9330093
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
ROC S1, mm: -2500
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1064
2
€68.00
9331003
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 76.2
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 8
Wavelength, nm: 920-990
Wedge / Parallelism error: <1 arcmin
1
€160.00
9331593
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.2
Dimensions, mm: 20 x 40
Material: UVFS
Reflectivity, %: Rs>99.7 / Rp>99.2 / Ravg>99.4
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1520-1580
Wedge / Parallelism error: <1 arcmin
2
€110.00
9331603
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 1520-1580
Wedge / Parallelism error: <1 arcmin
1
€73.00
9331633
Angle of Incidence (AOI), °: 45
Clear aperture: <90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 2100
Wedge / Parallelism error: <1 arcmin
2
€170.00
9333053
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 35
Material: BK7
ROC S1, mm: -30
Reflectivity, %: >99.6
S1 Surface quality, S-D: 20-10
Thickness, mm: 8.2
Wavelength, nm: 780-800
3
€140.00
9334023
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.5
Material: BK7
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 1010-1060
Wedge / Parallelism error: <1 arcmin
1
€35.00
9334033
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.5
Material: BK7
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1010-1060
Wedge / Parallelism error: <1 arcmin
1
€35.00
9334043
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.5
Material: BK7
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1010-1060
Wedge / Parallelism error: <1 arcmin
1
€55.00
9334663
Angle of Incidence (AOI), °: 45
Central wavelength, nm: 1064
Dimensions, mm: 50.8
Dimensions A x B x C, mm: 50.8
Material: UVFS
Reflectivity, %: >99.7
S1 Flatness, PV IR S2 Flatness, PV: <λ/8
Surface quality, S-D: 20-10
Thickness, mm: 6
2
€106.00
9334923
Reflectivity, %: HR(R>99.8%)@ 1020 - 1070 nm
Shape: D-shape
S1 Flatness, PV IR S2 Flatness, PV: λ/10@633nm.
Angle of Incidence (AOI), °: 45
Material: BK7
Surface quality, S-D: 20-10
Dimensions, mm: 25.4 x 12.7 x 6.35
13
€35.00
9334993
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1030
4
€24.00
9335483
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: +/-0.5
Dimensions, mm: 25.4
Material: BK7
ROC S1, mm: -2800
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 6.2
Wavelength, nm: 1064
1
€74.00
9335513
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: ±0.25
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 10-5
Thickness, mm: 3
Wavelength, nm: 330-350
Wedge / Parallelism error: <1 arcmin
9
€98.00
9336063
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38 x 50
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 980
Wedge / Parallelism error: <1 arcmin
1
€244.00
9336113
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25 x 25
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 980
Wedge / Parallelism error: <1 arcmin
1
€113.00
9336323
Angle of Incidence (AOI), °: 45
Comments: -
Dimensions, mm: Ø12.7
Material: BK7
Reflectivity, %: Rsp>99%
Surface quality, S-D: 20-10
Wavelength, nm: 1030
33
€19.00
9336593
Angle of Incidence (AOI), °: 22.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25
Material: UVFS
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
2
€75.00
9336703
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: ±0.25
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 3
Wavelength, nm: 343-355
Wedge / Parallelism error: <1 arcmin
5
€98.00
9337633
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 338-348
Wedge / Parallelism error: <1 arcmin
1
€67.00
9337933
Angle of Incidence (AOI), °: 22.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25
Material: UVFS
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
2
€60.00
9338153
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 50.8
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 8
Wavelength, nm: 589
Wedge / Parallelism error: <1 arcmin
1
€122.00
9338323
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 10 x 15
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.95
S1 Surface quality, S-D: 20-5
Thickness, mm: 6
Wavelength, nm: 1030
10
€180.00
9339453
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.56/>99.3
S1 Surface quality, S-D: 40-20
Thickness, mm: 6.35
Wavelength, nm: 1010-1070
Wedge / Parallelism error: <1 arcmin
1
€52.00
9339773
Clear Aperture: >90
Coatings:
Dimensions, mm: Ø25.4 (+0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Material: UVFS
Protective chamfers: <0.3 mm x 45°
S1: HR (Rs>99.8%/Rp>97%/Rr>98%) @ 975-1030 nm, AOI = 45°
S2: uncoated
Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
Wedge / Parallelism error: <1 arcmin
11
€70.00
9339873
NEW
Clear aperture: >90 %
Coatings:
Dimensions, mm: 12.7 (+0/-0.1)
Material: FS (Corning 7980 0F)
Parallelism error: <1 arcmin
Protective chamfers: <0.3 mm x 45°
S1: HRs(Rs>99.8 %) @ 343 nm, AOI = 45°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 633nm
Surface quality, S-D: 10-5
Thickness, mm: 6 (±0.1)
29
€50.00
9339883
Clear Aperture: >90
Coatings:
Dimensions, mm: Ø12.7 (+0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Material: UVFS
Protective chamfers: <0.3 mm x 45°
S1: HR (Rsp > 99.6%) @ 1030 nm, AOI = 12.5° ±5°
S2: uncaoted
Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
Wedge / Parallelism error: <1 arcmin
28
€60.00
9340404
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: Ø12.7 (+0/-0.1) x 3 (±0.1)
Material: BK7
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Wavelength, nm: 1047-1064
6
€45.00
9340544
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness, mm: 3
Wavelength, nm: 976
5
€46.00
9342154
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 21.5
Material: Sapphire
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 60-40
Thickness, mm: 6.35
Wavelength, nm: 2940
Wedge / Parallelism error: <1 arcmin
10
€350.00
9342694
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 500-530
Wedge / Parallelism error: <1 arcmin
1
€119.00
9343554
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.25
Thickness, mm: 5
Wavelength, nm: 257-275
2
€114.00
9343924
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€51.00
9344524
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 20
Material: UVFS
Reflectivity, %: >99.7
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 198-214
Wedge / Parallelism error: <1 arcmin
1
€107.00
9344534
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 20
Material: UVFS
Reflectivity, %: 93-95
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 198-214
Wedge / Parallelism error: <1 arcmin
1
€107.00
9345404
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 370-410
Wedge / Parallelism error: <1 arcmin
2
€175.00
9345794
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.7
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 975
4
€65.00
9346764
Angle of Incidence (AOI), °: 45
Clear aperture: >85
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€46.00
9346914
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25
Material: BK7
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: +0/-0.1
Thickness, mm: 6
Wavelength, nm: 1064+532
Wedge / Parallelism error: <1 arcmin
1
€70.00
9346924
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38.1
Material: UVFS
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 343
1
€170.00
9347124
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38.1
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030+515
Wedge / Parallelism error: <1 arcmin
2
€190.00
9347134
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 461
Wedge / Parallelism error: <1 arcmin
1
€48.00
9347144
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 461
Wedge / Parallelism error: <1 arcmin
3
€38.00
9347174
Clear aperture: > 90%
Coatings:
Diameter, mm: 25.4 mm (+0/-0.1mm)
LIDT: > 15J/cm2@1064nm, 8ns, 50 Hz
Material: UVFS (C7980)
Protective chamfers: 0.2 - 0.3mm x 45deg
S1(marked with an arrow): HRs(Rs>99.8%, Rp>99.6%)@1030nm, AOI=45deg
S2: Uncoated
S1 Flatness, PV IR S2 Flatness, PV: L/8 @ 633nm
Surface quality: 20-10 S-D
Thickness, mm: 3 mm (+/-0.1mm)
7
€59.00
9347304
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€100.00
9347464
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: UVFS
Reflectivity, %: >99.7
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
1
€140.00
9347474
Angle of Incidence (AOI), °: 22.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 2035
Wedge / Parallelism error: <1 arcmin
1
€125.00
9347524
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.8/>99.3
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 461
Wedge / Parallelism error: <1 arcmin
5
€41.00
9347804
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 20
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 60-40
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
1
€26.00
9347834
NEW
Clear Aperture: >90%
Coatings:
Diameter, mm: 12.7 (+0/-0,1mm)
Material: BK7
S1: HR(R>99.5%)@1550 nm, AOI=45deg
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Surface quality: 20-10 S-D
Thickness, mm: 6 (+/-0,1mm)
12
€45.00
9347844
Angle of Incidence (AOI), °: 45
Chips: <0.1 mm
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.2 mm x 45°
Reflectivity, %: >99.7
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1550
Wedge / Parallelism error: <1 arcmin
1
€34.00
9348624
Angle of Incidence (AOI), °: 45
Chips: <0.1 mm
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Protective chamfers: 0.1-0.2 mm x 45°
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1020-1070
Wedge / Parallelism error: <30 arcec
3
€54.00
9348644
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1020-1070
Wedge / Parallelism error: <30 arcec
2
€54.00
9348724
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1020-1070
Wedge / Parallelism error: <30 arcsec
10
€48.00
9350515
Angle of Incidence (AOI), °: 45
Central wavelength, nm: 380-420
Dimensions, mm: Ø20
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-5
S1 Flatness, PV IR S2 Flatness, PV: <λ/10
Surface quality, S-D: 20-5
Thickness, mm: 5
Wavelength, nm:
44
€29.00
9350775
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.5
Dimensions, mm: 80
Material: BK7
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±1
Thickness, mm: 10
Wavelength, nm: 750-850
Wedge / Parallelism error: <5 arcmin
2
€210.00
9350785
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.5
Dimensions, mm: 80
Material: BK7
Reflectivity, %: >99
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±1
Thickness, mm: 10
Wavelength, nm: 750-850
Wedge / Parallelism error: <5 arcmin
1
€195.00
9350925
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rp>99
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1030
10
€19.00
9351615
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
22
€67.00
9351675
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 10
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 338-347
Wedge / Parallelism error: <1 arcmin
32
€43.00
9351695
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: UVFS
Reflectivity, %: >99.7
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
5
€106.00
9352105
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 20
Material: UVFS
Reflectivity, %: >99.8/>99.3
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
2
€67.00
9352445
Angle of Incidence (AOI), °: 3.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 355+532+1064
Wedge / Parallelism error: <30 arcec
6
€95.00
9353515
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0.1/-0.5
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6.35
Wavelength, nm: 532
Wedge / Parallelism error: <1 arcmin
1
€71.00
9353595
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.7
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1550
Wedge / Parallelism error: <1 arcmin
43
€45.00
9354135
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0.5/-0.1
Dimensions, mm: 38
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 532
Wedge / Parallelism error: <1 arcmin
3
€40.00
9354145
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0.5/-0.1
Dimensions, mm: 38
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 532
Wedge / Parallelism error: <1 arcmin
1
€51.00
9354575
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 30 x 60
Material: BK7
Reflectivity, %: >99
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness, mm: 10
Wavelength, nm: 1550
1
€175.00
9354965
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 10 x 10
Material: BK7
Reflectivity, %: >99
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 3
Wavelength, nm: 1550
Wedge / Parallelism error: <1 arcmin
1
€123.00
9354985
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 70 x 17
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 15
Wavelength, nm: 940
Wedge / Parallelism error: <1 arcmin
1
€340.00
9354995
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 100 x 25
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness, mm: 20
Wavelength, nm: 940
Wedge / Parallelism error: <1 arcmin
1
€470.00
9355035
Angle of Incidence (AOI), °: 45
Chips: <0.1 mm
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25 x 20
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
1
€87.00
9356155
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
2
€30.00
9356285
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 9.53
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
1
€70.00
9356835
Angle of Incidence (AOI), °: 0
Clear aperture: 84
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 40 x 15
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: 5 arcmin
1
€64.00
9358435
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: +/- 0.2
Thickness, mm: 12
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€330.00
9359055
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
ROC S1, mm: -100
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 870
Wedge / Parallelism error: <1 arcmin
1
€275.00
9359545
Angle of Incidence (AOI), °: 42-48
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6.35
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
19
€55.00
9359815
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
9
€48.00
9359825
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 10
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 507-520+1015-1040
Wedge / Parallelism error: <1 arcmin
9
€43.00
9371067
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 515
Wedge / Parallelism error: <1 arcmin
1
€51.00
9371117
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 2
Wavelength, nm: 515
Wedge / Parallelism error: <1 arcmin
1
€41.00
9371167
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 527-532
Wedge / Parallelism error: <1 arcmin
1
€53.00
9372137
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 10
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 507-520
Wedge / Parallelism error: <1 arcmin
1
€36.00
9372727
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.7
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1550
Wedge / Parallelism error: <1 arcmin
3
€58.00
9372807
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 10
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 338-347
Wedge / Parallelism error: <1 arcmin
3
€43.00
9373977
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 9.53
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
3
€80.00
9374827
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 257
Wedge / Parallelism error: <1 arcmin
1
€135.00
9375247
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1047-1064
Wedge / Parallelism error: <1 arcmin
5
€46.00
9375477
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 343-355
Wedge / Parallelism error: <1 arcmin
3
€170.00
9375537
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
ROC S1, mm: +400
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 2
Wavelength, nm: 800
1
€113.00
9376277
Dimensions, mm: 10(+0,0/-0,1)x15(+0,0/-0,1)x5(+/-0,1)mm;
S1: HRp@507-520nm, HRp>99,4%, i=43-47, high damage threshold;
S2: uncoated, grounded, not polished
15
€36.00
9376637
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50 x 30
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.8, >99.5
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1020-1070
Wedge / Parallelism error: <1 arcmin
1
€110.00
9376647
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50 x 25
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.8, >99.5
S1 Flatness, PV: <λ @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1020 - 1070
Wedge / Parallelism error: <1 arcmin
1
€110.00
9377127
Angle of Incidence (AOI), °: 0-15
Clear aperture: >90
Comments: D-shape. IBS coating
Dimensions, mm: 12.7 x 11.2
Material: UVFS
Reflectivity, %: >99.5/>99.0
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
17
€32.00
9377247
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 589
Wedge / Parallelism error: <1 arcmin
1
€40.00
9377287
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-5
Thickness, mm: 5
Wavelength, nm: 1015-1045
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
12
€60.00
9377297
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 1015-1040
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
1
€30.00
9377477
Angle of Incidence (AOI), °: 0-45
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 365
Wedge / Parallelism error: <1 arcmin
1
€75.00
9377487
Angle of Incidence (AOI), °: 0-45
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 365
Wedge / Parallelism error: <1 arcmin
1
€55.00
9377557
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 40
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 3
Wavelength, nm: 500-530
Wedge / Parallelism error: <30 arcec
1
€70.00
9377647
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15
Material: UVFS
Protective chamfers: <0.2 mm x 45°
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 515-532
Wedge / Parallelism error: <1 arcmin
20
€28.00
9377837
Angle of Incidence (AOI), °: 0-15
Chips: <0.1 mm
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: 0.1-0.3 x 45°
Reflectivity, %: >99.95
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-5
Thickness, mm: 5
Wavelength, nm: 1000-1060
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
14
€15.00
9377867
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV: <λ/10
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 338-348
Wedge / Parallelism error: <1 arcmin
18
€55.00
9377997
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 76.2
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 8
Wavelength, nm: 532
Wedge / Parallelism error: <1 arcmin
1
€168.00
9378067
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 20
Material: UVFS
ROC S1, mm: -500
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
22
€55.00
9378077
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: <0.25 mm x 45°
ROC S1, mm: -100
Reflectivity, %: >99.9
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
1
€63.00
9378097
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.5
Dimensions, mm: 12.7
Material: UVFS
ROC S1, mm: -100
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
2
€63.00
9378137
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.5
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 30 arcsec
2
€45.00
9378167
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: 0.1-0.3 mm x 45°
ROC S1, mm: -350
Reflectivity, %: >99.95
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 1010-1050
14
€63.00
9378347
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: 0.1-0.3 mm x 45°
ROC S1, mm: -200
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
8
€275.00
9378357
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.5
Dimensions, mm: 12.7
Material: UVFS
ROC S1, mm: -350
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
2
€45.00
9379517
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 45 x 45
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 6.35
Wavelength, nm: 248
Wedge / Parallelism error: <1 arcmin
2
€80.00
9379647
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 10 x 10
Material: UVFS
Reflectivity, %: >99.2
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 266-280
Wedge / Parallelism error: <1 arcmin
4
€60.00
9379657
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 10 x 10
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 532-561
Wedge / Parallelism error: <1 arcmin
2
€60.00
9379697
Clear Aperture: >90
Coatings:
Dimensions, mm: Ø30.0 (+0/-0.1)
Material: UVFS
Parallelism error: <1arcmin
Protective chamfers: <0.3 mm x 45°
S1: HR(R>99.8%) @ 970-980 nm, AOI = 45°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: λ/8 @ 633 nm
Surface quality, S-D: 20-10
Thickness, mm: 5.0 (+/-0.1)
2
€143.00
9407310
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.2
Dimensions, mm: 5 x 10
Material: UVFS (Corning 7980 0F)
Protective chamfers: <0.3 mm x 45°
Reflectivity, %: >99.9
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.5
Thickness, mm: 30
Configuration: Scraper mirror
Wavelength, nm: 1005-1055
1
€500.00
9408970
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 380-420
Wedge / Parallelism error: <1 arcmin
1
€112.00
9419461
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
6
€47.00
9419571
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
ROC S1, mm: -100
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
15
€47.00
9428692
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 40 x 20
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.2
Thickness, mm: 5
Wavelength, nm: 1020-1090
1
€95.00
9428702
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 40 x 20
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.2
Thickness, mm: 5
Wavelength, nm: 1020-1090
2
€95.00
9591549
NEW
Protective chamfers: <0.3 mm x 45°
Thickness, mm: 6 (±0.1)
S2: uncoated
S1(^): HRsp>99.6% @ 1030 nm, AOI= 0° ±5°
Clear Aperture: >90
S1 Flatness, PV: <λ/8 @ 632.8 nm
Material: UVFS (Corning 7980 0F)
Dimensions, mm: Ø12.7 (+0/-0.1)
Coatings:
S1 Surface quality, S-D: 20-10
16
€50.00
9592479
Clear Aperture: >90%
Coating Adhesion and Durability: Per MIL-C-675A
LIDT: >20 J/cm2 for 20 ns pulses @ 1064 nm
Material: BK7
S1: HR (Rsp>99.5%) @ 1064 nm, AOI=45°
S2: -
Size, mm: Ø25.4 (+0/-0.1) x 3 (±0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/10 @ 632.8 nm (before coating)
Surface quality: 10-5 S-D (before coating)
3
€85.00
9608180
NEW
Clear aperture: > 90%
Coatings:
Dimensions, mm: Ø19 (+0/-0.1)
LIDT: 5 J/cm² @ 355 nm, 8 ns, 50 Hz
Material: FS (Corning 7980 0F)
Parallelism error: <1 arcmin
Protective chamfers: <0.3 mm x 45°
S1: HRp>99.8% @ 343 nm, AOI = 45°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 633nm
Surface quality, S-D: 20-20
Thickness, mm: 6 (±0.1)
2
€50.00
9608510
NEW
Parallelism error: <1 arcmin
Thickness, mm: 6 mm (+/-0.1 mm)
S2 Surface quality, S-D: commercially polished
S1 Surface quality, S-D: 20-10 S-D
S1 Flatness, PV: S2: uncoated
Protective chamfers: 0.2-0.3 mm x 45 deg
Material: FS
Diameter, mm: 12.7 mm (+0/-0.1 mm)
Coatings:
Clear aperture: >90 %
S1(^ IBS): HRsp>99.9%@ 1010-1050 nm, AOI=45 deg
13
€50.00
9608630
Parallelism error: <1 arcmin
Thickness, mm: 6 mm (+/-0.1 mm)
S2 Surface quality, S-D: commercially polished
S1 Surface quality, S-D: 20-10 S-D
S1 Flatness, PV: Clear aperture: >90 %
Protective chamfers: 0.2-0.3 mm x 45°
Material: FS
Diameter, mm: 12.7 mm (+0/-0.1 mm)
Coatings:
S1(IBS): HRsp>99.9%@ 505-525 nm, (>99.95%@ 515 nm), AOI=45°
S2: uncoated
14
€4,224.00
9610421
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Surface quality, S-D: 20-10
S2: uncoated
S1: HR (R>99.5%) @ 729 nm, AOI = 45°
Thickness, mm: 6 (±0.1)
Protective chamfers: <0.25 mm x 45°
Dimensions, mm: Ø12.7 (+0/-0.1)
Coatings:
Clear Aperture: >90
Parallelism error: <1 arcmin
Material: BK7
5
€55.00
9379877
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 60 x 30
Material: BK7
Protective chamfers: <0.25 mm x 45°
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€140.00
9380198
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 45 x 70
Material: UVFS
Reflectivity, %: >98
S1 Surface quality, S-D: 40-20
S1 Flatness, PV IR S2 Flatness, PV: <λ/4
Thickness, mm: 6.35
Wavelength, nm: 248
2
€110.00
9390279
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
ROC S1, mm: -3500
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1064
2
€72.00
9390289
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
ROC S1, mm: -3200
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1064
1
€72.00
9390359
Angle of Incidence (AOI), °: 40-50
Comments: S2: grounded.
Dimensions tolerance, mm: +0.0/-0.1
Dimensions, mm: 10x10
Material: UVFS
Protective chamfers: 0.1-0.3mm@45° on S1 and S2
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV: λ/6 - λ/8 on 8x8 mm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: +/-0.1
Thickness, mm: 3
Wavelength, nm: 1020 - 1040
Wedge / Parallelism error: <1 arcmin
54
€18.00
9390449
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-5
Thickness, mm: 5
Wavelength, nm: 1015-1040
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
9
€60.00
9390539
Angle of Incidence (AOI), °: 0-10
Chips: <0.1 mm
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.95
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
42
€20.00
9391539
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 4.8
Wavelength, nm: 1550
Wedge / Parallelism error: <1 arcmin
10
€58.00
9391579
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 976
Wedge / Parallelism error: <1 arcmin
5
€75.00
9391589
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 20
Material: BK7
ROC S1, mm: -300
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 976
2
€115.00
9391809
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 8
Material: UVFS
ROC S1, mm: -2500
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1064
2
€42.00
9391819
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 8
Material: UVFS
ROC S1, mm: -2500
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 1064
1
€42.00
9392409
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 729
Wedge / Parallelism error: <1 arcmin
1
€67.00
9392679
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 10-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
17
€59.00
9392689
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
3
€59.00
9392759
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
5
€59.00
9393079
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.5
Dimensions, mm: 25.4
Material: BK7
Protective chamfers: <0.25 mm x 45°
ROC S1, mm: -3000
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±1
Thickness, mm: 3
Wavelength, nm: 1064
2
€72.00
9393199
Angle of Incidence (AOI), °: 30
Clear aperture: >90
Dimensions, mm: 50
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 355
3
€69.00
9393249
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.5
Dimensions, mm: 76.2
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±1
Thickness, mm: 10
Wavelength, nm: 532
Wedge / Parallelism error: <1 arcmin
3
€106.00
9393259
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38.1
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 8
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
4
€44.00
9394109
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 30 x 30
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1535-1565
Wedge / Parallelism error: <1 arcmin
1
€123.00
9394309
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.25
Dimensions, mm: 50
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 60-40
Thickness tolerance, mm: ±0.25
Thickness, mm: 5
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
1
€86.00
9394319
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.25
Dimensions, mm: 50
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.25
Thickness, mm: 5
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
1
€108.00
9394329
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.25
Dimensions, mm: 50
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.25
Thickness, mm: 5
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
5
€108.00
9394439
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.5
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1064
1
€60.00
9395229
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12x15
Material: UVFS (Viosil SQ)
Protective chamfers: 0.1-0.3 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
1
€40.00
9395389
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: 0.1-0.3 mm x 45°
Reflectivity, %: >99.9
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 20-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
21
€47.00
9395539
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 1050-1250
Wedge / Parallelism error: <1 arcmin
3
€45.00
9395889
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
12
€47.00
9396939
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38.1
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
1
€130.00
9398979
Clear aperture: >90%
Coatings: e-Beam
Dimensions A x B x C, mm: 30.0 mm x 60.0 mm (+0.0/-0.2 mm)
Your part: #00000950
Material: BK7
Parallelism error: <5 arcmin
Protective chamfers: <0.25 mm x 45°
S1: HR(R>99.5%)@1030 nm, AOI= 0°
S2: uncoated
S1 Flatness, PV: <λ/10@633 nm (Per Ø27.0 mm diameter)
S1 Surface quality, S-D: 40/20 S/D
S2 Surface quality, S-D: grinded
Thickness, mm: 10.0 mm (+/-0.2 mm)
11
€123.00
9399049
Angle of Incidence (AOI), °: 22.5
Clear aperture: >90
Dimensions, mm: 20 x 40
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€38.00
9399099
Configuration: -
S1 Flatness, PV:
S1 Surface quality, S-D:
Shape: -
Material: -
S1 Flatness, PV IR S2 Flatness, PV: -
Surface quality, S-D: -
Reflectivity, %: >99.5/>99.0
Thickness, mm: -
Wavelength, nm:
Wedge / Parallelism error: <0.5 deg
Thickness tolerance, mm:
Clear aperture:
Wedge / Parallelism error: -
ROC S1, mm: -
Central wavelength, nm: -
Comments: -
Comments: -
Dimensions tolerance, mm:
Dimensions, mm: 25.4x2
Dimensions, mm: 6.35
Material: MgF2
Protective chamfers:
Angle of Incidence (AOI), °: -
2
€120.00
9399309
Angle of Incidence (AOI), °: 0
Clear aperture: 88
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1047-1064
Wedge / Parallelism error: <1 arcmin
2
€52.00
9401390
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
10
€55.00
9401400
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.5
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
51
€29.00
9401440
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.5
Dimensions, mm: 12.7
Material: UVFS
ROC S1, mm: -200
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
11
€38.00
9401790
Angle of Incidence (AOI), °: 22.5
Clear aperture: >90
Dimensions, mm: 20 x 40
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€48.00
9402330
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1030
26
€19.00
9403230
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.2
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 800
Wedge / Parallelism error: <1 arcmin
1
€49.00
9403240
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 800
Wedge / Parallelism error: <1 arcmin
1
€39.00
9403250
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 800
Wedge / Parallelism error: <1 arcmin
2
€39.00
9403290
Angle of Incidence (AOI), °: 22.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
5
€65.00
9403300
Coatings:
Dimensions, mm: Ø25.4 (+0/-0.1) x 3 (±0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 @ 632.8 nm
Material: UVFS
S1: HR(Ravg>99.8%) @ 955-995 nm, AOI=45°
S2: Uncoated
Surface quality, S-D: 40-20
7
€69.00
9403390
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.2
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1515
Wedge / Parallelism error: <1 arcmin
2
€41.00
9403440
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 15 x 40
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.7
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <30 arcsec
12
€114.00
9403680
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.5
Dimensions, mm: 12.7
Material: UVFS
ROC S1, mm: -1500
Reflectivity, %: >99.95
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: ET: 5
Wavelength, nm: 1010-1050
3
€65.00
9403700
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.5
Dimensions, mm: 12.7
Material: UVFS
ROC S1, mm: -2500
Reflectivity, %: >99.95
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
1
€81.00
9404300
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 671
1
€42.00
9404460
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.7
S1 Surface quality, S-D: 20-10
Thickness, mm: 3
Wavelength, nm: 1010-1040
Wedge / Parallelism error: <1 arcmin
13
€52.00
9404470
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.7
S1 Surface quality, S-D: 40-20
Thickness, mm: 3
Wavelength, nm: 1010-1040
Wedge / Parallelism error: <1 arcmin
2
€40.00
9405260
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: <0.25 mm x 45°
ROC S1, mm: -25
Reflectivity, %: >99.7
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 2
Wavelength, nm: 780
2
€216.00
9405550
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.2
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
1
€68.00
9405560
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
1
€43.00
9405580
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38.1
Material: UVFS
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
1
€95.00
9405600
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 390-400
Wedge / Parallelism error: <1 arcmin
24
€33.00
9405610
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 390-400
Wedge / Parallelism error: <1 arcmin
1
€26.00
9406000
Angle of Incidence (AOI), °: 76.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >95
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 10-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 244
Wedge / Parallelism error: <1 arcmin
2
€93.00
9406260
Angle of Incidence (AOI), °: 15
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >98.5
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 10-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 244
Wedge / Parallelism error: <1 arcmin
2
€85.00
9406280
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 50.8
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 780-820
Wedge / Parallelism error: <1 arcmin
6
€155.00
9406530
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: BK7
Reflectivity, %: >99.6
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 8
Wavelength, nm: 671
Wedge / Parallelism error: <1 arcmin
1
€100.00
9406590
NEW
Clear aperture: >90 %
Coatings:
Diameter, mm: 12.7 (+0/-0.1)
LIDT: >8 J/cm^2 @1064 nm 10 ns
Material: FS (Viosil SQ)
Parallelism error: <1 arcmin
Protective chamfers: <0.3 mm x 45°
S1: HRs(Rs>99.8 %)@1030 nm, AOI=45°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 633nm
Surface quality, S-D: 20-10
Thickness, mm: 6.0 (+/-0.1)
18
€50.00
9406650
Angle of Incidence (AOI), °: 20-40
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: 0.1-0.3 mm x 45°
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
10
€50.00
9406810
Angle of Incidence (AOI), °: 0-12.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: +0/-0.1
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <30 arcsec
7
€50.00
9407510
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38.1
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
2
€180.00
9407790
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 780-820
Wedge / Parallelism error: <1 arcmin
1
€70.00
9407810
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.95
S1 Surface quality, S-D: 20-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
1
€60.00
9407880
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
20
€29.00
9407960
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: ±0.1
Dimensions, mm: 20 x 12
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 8
Wavelength, nm: 1535-1570
Wedge / Parallelism error: <1 arcmin
2
€43.00
9409180
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: +0/-1
Dimensions, mm: Ø50.8
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/2 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: +2/-0
Thickness, mm: 6
Wavelength, nm: 527-532
Wedge / Parallelism error: <1 arcmin
3
€63.00
9409190
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 527-532
Wedge / Parallelism error: <1 arcmin
1
€63.00
9409200
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-10
Thickness, mm: 6
Wavelength, nm: 527-532
Wedge / Parallelism error: <1 arcmin
1
€50.00
9409260
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 532
Wedge / Parallelism error: <1 arcmin
1
€35.00
9409760
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
ROC S1, mm: -1500
Reflectivity, %: >99.5/>90
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 755
Wedge / Parallelism error: <1 arcmin
2
€75.00
9410211
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 800
Wedge / Parallelism error: <1 arcmin
1
€56.00
9410521
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 1020-1070
Wedge / Parallelism error: <30 arcec
3
€68.00
9410531
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 1020-1070
Wedge / Parallelism error: <30 arcec
1
€85.00
9410971
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Flatness, PV: <λ @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1020-1070
Wedge / Parallelism error: <30 arcec
1
€85.00
9410981
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 50.8
Material: UVFS
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/2 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1020-1070
Wedge / Parallelism error: <30 arcsec
3
€155.00
9411181
Angle of Incidence (AOI), °: 55
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 10-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
1
€91.00
9411421
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 30 x 20
Material: UVFS
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 40-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 976
Wedge / Parallelism error: <1 arcmin
1
€55.00
9411431
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 30 x 20
Material: UVFS
Reflectivity, %: >99.6
S1 Surface quality, S-D: 20-40
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 976
Wedge / Parallelism error: <1 arcmin
1
€44.00
9411481
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6.35
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1arcmin
1
€100.00
9411491
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6.35
Wavelength, nm: 505-525
Wedge / Parallelism error: <1arcmin
2
€100.00
9411501
Clear Aperture: >90
Coatings:
Dimensions, mm: Ø25.4 (+0.0/-0.1)
LIDT: >7 J/cm² @1064 nm, 10 ns
Material: BK7
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
S1: HR(Rp>99.3 %, Rs>99.8%)@ 729 nm, AOI = 45°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
8
€94.00
9411511
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 729
Wedge / Parallelism error: <1 arcmin
3
€75.00
9411561
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1047-1064
Wedge / Parallelism error: <1 arcmin
4
€52.00
9411611
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <3 arcmin
1
€65.00
9411621
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <3 arcmin
1
€55.00
9411641
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <3 arcmin
1
€55.00
9412021
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.5
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >98.5
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±1
Thickness, mm: 5
Wavelength, nm: 355
Wedge / Parallelism error: <1 arcmin
2
€35.00
9412281
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 40
Material: UVFS
Reflectivity, %: >99.4
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1020-1090
Wedge / Parallelism error: <30 arcsec
2
€80.00
9412371
Angle of Incidence (AOI), °: 20-40
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
10
€50.00
9412381
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38 x 23.5
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 10
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
6
€140.00
9412901
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 27
Material: UVFS
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 7
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
1
€138.00
9412911
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 27
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 7
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
1
€110.00
9413671
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
ROC S1, mm: -1000
Reflectivity, %: >99.7
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 755
1
€94.00
9413681
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
ROC S1, mm: -1000
Reflectivity, %: >99.7
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 755
1
€94.00
9413921
NEW
S1 Surface quality, S-D: 20-10
Reflectivity, %: >99.5/>99.0
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 1064+532
Configuration: Flat/Flat
Thickness, mm: 3
Angle of Incidence (AOI), °: 45
Material: N-BK7
Dimensions, mm: Ø25
Dimensions tolerance, mm: +0.0/-0.1
Clear Aperture: >90
Thickness tolerance, mm: +/-0.1
4
€89.00
9414111
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rs>99.5; Rp>98.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Wavelength, nm: 250-266
12
€188.00
9414151
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1030
13
€19.00
9414161
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-20
Thickness, mm: 5
Wavelength, nm: 1030
29
€19.00
9414781
Angle of Incidence (AOI), °: 45
Clear aperture: 80
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 515
Wedge / Parallelism error: <1 arcmin
1
€70.00
9414791
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 40-10
Thickness, mm: 5
Wavelength, nm: 515
Wedge / Parallelism error: <1 arcmin
1
€70.00
9414931
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38 x 23.5
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 10
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
3
€140.00
9415241
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
2
€115.00
9415251
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
1
€92.00
9415561
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1053-1064
Wedge / Parallelism error: <1 arcmin
7
€40.00
9415571
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-20
Thickness, mm: 5
Wavelength, nm: 1053-1064
Wedge / Parallelism error: <1 arcmin
2
€32.00
9415641
Angle of Incidence (AOI), °: 10
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 615-640
1
€85.00
9415821
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030-1070
Wedge / Parallelism error: <1 arcmin
1
€106.00
9415831
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-10
Thickness, mm: 6
Wavelength, nm: 1030-1070
Wedge / Parallelism error: <1 arcmin
2
€106.00
9415841
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1030-1070
Wedge / Parallelism error: <1 arcmin
2
€106.00
9416391
Angle of Incidence (AOI), °: 20-40
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 60-40
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
1
€40.00
9417251
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0/‐0.5
Dimensions, mm: 180
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99
S1 Surface quality, S-D: 40-20
S2 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±1
Thickness, mm: 10
Wavelength, nm: 750-850
3
€710.00
9417361
Protective chamfers: <0.25 mm x 45°
Wedge / Parallelism error: <5 arcmin
Wavelength, nm: 1064
Thickness, mm: 6
Thickness tolerance, mm: ±1
S2 Surface quality, S-D: 40-20
S1 Surface quality, S-D: 40-20
Reflectivity, %: >99.5
Material: UVFS
Dimensions, mm: 25.4
Dimensions tolerance, mm: +0/-0.5
Clear aperture: >90
Angle of Incidence (AOI), °: 0
ROC S1, mm: -3000
5
€75.00
9417371
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >98.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±1
Thickness, mm: 6
Wavelength, nm: 355
5
€35.00
9417901
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50 x 50
Material: UVFS
Protective chamfers: 0.1-0.3 mm x 45°
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
67
€80.00
9417911
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50 x 50
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
4
€80.00
9417921
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50 x 50
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
1
€80.00
9418991
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 30
Material: UVFS
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 976
Wedge / Parallelism error: <1 arcmin
3
€68.00
9419001
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 30
Material: UVFS
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 976
Wedge / Parallelism error: <1 arcmin
1
€68.00
9419221
Angle of Incidence (AOI), °: 45
Dimensions, mm: Ø12.7
Material: BK7
Reflectivity, %: Rsp>99,2%
Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 1030
287
€34.00
9419231
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1030
2
€24.00
9419611
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 20
Material: UVFS
Protective chamfers: 0.1-0.3 mm x 45°
Reflectivity, %: >99.9
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
6
€75.00
9419711
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-40
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 515-532
Wedge / Parallelism error: <1 arcmin
1
€56.00
9419811
Angle of Incidence (AOI), °: 30
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 30
Material: UVFS
Protective chamfers: 0.1-0.3 mm x 45°
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 7
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
4
€53.00
9419821
Angle of Incidence (AOI), °: 30
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 30
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 7
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
2
€53.00
9420122
Protective chamfers: 0,1-0,2mm@45deg on all facets;
Dimensions A x B x C, mm: 10(+0,0/-0,05)x12(+0,0/-0,05)x3(+/-0,1) mm;
Material: UVFS C7980 0F;
Other surfaces: uncoated, grinded, not polished;
4
€45.00
9420172
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 10 x 12
Material: UVFS
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 970-990
4
€56.00
9420182
Angle of Incidence (AOI), °: 30
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 30
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 7
Wavelength, nm: 1010-1050
6
€26.00
9420222
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 7 x 10
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 970-990
2
€25.00
9420332
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 7 x 15
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 970-990
5
€25.00
9420342
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 7 x 15
Material: UVFS
Reflectivity, %: >99.5/>99.0
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 970-990
3
€25.00
9420452
Angle of Incidence (AOI), °: 0-15
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Protective chamfers: 0.1-0.3 mm x 45°
Reflectivity, %: >99.9
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
7
€69.00
9420472
Angle of Incidence (AOI), °: 0-15
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
3
€69.00
9420922
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 515
Wedge / Parallelism error: <1 arcmin
1
€52.00
9420932
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-40
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 515
Wedge / Parallelism error: <1 arcmin
1
€52.00
9421532
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm:
Wavelength, nm: 1020-1040
13
€79.00
9422402
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-40
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 671
Wedge / Parallelism error: <1 arcmin
1
€48.00
9422422
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 60-40
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 671
Wedge / Parallelism error: <1 arcmin
1
€48.00
9422542
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 25
Material: UVFS
Protective chamfers: 0.1-0.3 mm x 45°
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 7
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
4
€50.00
9422552
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 25
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 7
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
9
€50.00
9422682
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 25
Material: UVFS
Reflectivity, %: >99.8
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 7
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
1
€50.00
9422692
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 25
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 7
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
1
€45.00
9422702
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 25
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 7
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
10
€50.00
9422812
S1(^): HRsp>99.5% @ 1030nm, AOI=0-12.5°
Coatings:
S1 Flatness, PV IR S2 Flatness, PV: λ/8 @ 633 nm
Surface quality, S-D: 20-10
S2: uncoated
Thickness, mm: 6 (±0.1)
Parallelism error: <30 arcsec
Dimensions, mm: Ø12.7 (+0/-0.1)
Clear Aperture: >90%
Material: UVFS (Corning 7980 0F)
Protective chamfers: <0.3 mm x 45°
24
€42.00
9422822
Angle of Incidence (AOI), °: 0-12.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: +0/-0.1
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <30 arcsec
7
€44.00
9422832
Angle of Incidence (AOI), °: 0-12.5
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <30 arcsec
21
€44.00
9422992
Clear Aperture: >90
Coatings:
Dimensions, mm: Ø12.7 (+0/-0.1mm)
Material: UVFS
Protective chamfers: <0.3 mm x 45°
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
S1: HR(Rsp>99.6%)@1030nm AOI=0° ±5°
S2: uncoated
Thickness, mm: 5 (±0.1mm)
Wedge / Parallelism error: <1 arcmin
2
€43.00
9423052
Angle of Incidence (AOI), °: -
Central wavelength, nm: -
Clear aperture:
Comments: -
Comments: -
Dimensions tolerance, mm:
Dimensions, mm: 25.4x2
Dimensions, mm: 6.35
Material: MgF2
Protective chamfers:
ROC S1, mm: -
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV:
S1 Surface quality, S-D:
Shape: -
Material: -
S1 Flatness, PV IR S2 Flatness, PV: -
Surface quality, S-D: -
Thickness tolerance, mm:
Thickness, mm: -
Configuration: -
Wavelength, nm:
Wedge / Parallelism error: <0.5 deg
Wedge / Parallelism error: -
1
€490.00
9423142
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
1
€63.00
9423242
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-60
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
10
€63.00
9424022
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 250-266
Wedge / Parallelism error: <1 arcmin
4
€15.00
9424482
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 38 x 23.5
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 10
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
1
€140.00
9425842
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.2
S1 Flatness, PV: <λ/5 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1047-1064
Wedge / Parallelism error: <1 arcmin
3
€81.00
9425852
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.2
S1 Flatness, PV: <λ/5 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness, mm: 6
Wavelength, nm: 1047-1064
Wedge / Parallelism error: <1 arcmin
1
€65.00
9425862
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.2
S1 Flatness, PV: <λ/5 @ 632.8 nm
S1 Surface quality, S-D: 60-40
Thickness, mm: 6
Wavelength, nm: 1047-1064
Wedge / Parallelism error: <1 arcmin
1
€65.00
9426312
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1940
Wedge / Parallelism error: <1 arcmin
2
€700.00
9426562
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness, mm: 5
Wavelength, nm: 400
Wedge / Parallelism error: <1 arcmin
3
€70.00
9426592
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness, mm: 6
Wavelength, nm: 1047-1064
Wedge / Parallelism error: <1 arcmin
7
€65.00
9426612
Angle of Incidence (AOI), °: 45
Clear aperture: >89
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 5
Wavelength, nm: 800
Wedge / Parallelism error: <1 arcmin
2
€70.00
9426962
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1047-1064
Wedge / Parallelism error: <1 arcmin
2
€52.00
9427672
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.2
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 343-355
Wedge / Parallelism error: <1 arcmin
1
€68.00
9428272
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness, mm: 5
Wavelength, nm: 1020-1070
Wedge / Parallelism error: <30 arcec
2
€68.00
9428322
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030
155
€24.00
9428332
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030
6
€24.00
9428352
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030
8
€24.00
9428362
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1030
4
€24.00
9428372
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1030
2
€24.00
9428712
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 40 x 20
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-10
Thickness tolerance, mm: ±0.2
Thickness, mm: 5
Wavelength, nm: 1020-1090
1
€228.00
9429192
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS (Corning 7980 0F)
Protective chamfers: 0.1-0.3 mm x 45°
ROC S1, mm: -250
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
1
€81.00
9429202
NEW
Angle of Incidence (AOI), °: 0-10
Central wavelength, nm: 1030
Comments: Coating on 100% of he surface!!. GVD<20fsec2 (IBS)chamfers on both faces:(0.1-0.3mm)@45°;
Dimensions, mm: 12.7x5
Material: UVFS
Reflectivity, %: HRp>99.9%. HRs>99.9%(IBS)
S1 Flatness, PV: λ/6 on CA10mm
Surface quality, S-D: 20-5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg
1
€50.00
9429212
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
1
€63.00
9429222
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
15
€63.00
9429232
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 60-40
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
7
€63.00
9429252
Angle of Incidence (AOI), °: 40-50
Comments: S2-grounded
Dimensions, mm: 10x10
Material: UVFS
Protective chamfers: 0.1-0.3mm@45° on S1 and S2
Reflectivity, %: HRp>99.8%; HRs>99.8%.
S1 Flatness, PV: λ/6-λ/8 on 8x8mm
S1 Surface quality, S-D: 20-10
Thickness, mm: 3
Wavelength, nm: 1010-1050
9
€22.00
9429262
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions, mm: 9.8 x 9.8
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 3.1
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
23
€24.00
9429272
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions, mm: 10 x 10
Material: UVFS
Reflectivity, %: >99.5/>99.0
S1 Surface quality, S-D: 20-20
Thickness, mm: 3
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
5
€24.00
9429292
Angle of Incidence (AOI), °: 40-50
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 10 x 10
Material: UVFS
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
2
€24.00
9429922
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25
Material: BK7
Protective chamfers: <0.25 mm x 45°
ROC S1, mm: -4000
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 750-850
4
€46.00
9430643
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Dimensions, mm: Ø25.4
Material: N-BK7
Reflectivity, %: Rs>99.5/Rp>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Thickness, mm: 6
Wavelength, nm: 527-532
20
€65.00
9430653
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-40
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1000-1070
Wedge / Parallelism error: <30 arcsec
1
€124.00
9431523
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: Ø50.8
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 8
Wavelength, nm: 670
Wedge / Parallelism error: <1 arcmin
1
€88.00
9431533
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 670
Wedge / Parallelism error: <1 arcmin
1
€65.00
9431553
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
Reflectivity, %: >99.2
S1 Surface quality, S-D: 20-20
Thickness, mm: 6
Wavelength, nm: 670
Wedge / Parallelism error: <1 arcmin
2
€50.00
9431603
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 370
Wedge / Parallelism error: <30 arcsec
2
€68.00
9431683
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.2
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 343-355
Wedge / Parallelism error: <1 arcmin
1
€68.00
9431693
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.6
S1 Surface quality, S-D: 10-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1064
Wedge / Parallelism error: <50 arcsec
1
€55.00
9431713
Angle of Incidence (AOI), °: 45
Clear aperture: 100
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 17 x 20
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 980
Wedge / Parallelism error: <0.5 deg
1
€78.00
9431723
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 20 x 17
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 3
Wavelength, nm: 980
1
€78.00
9432373
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.2
Dimensions, mm: 20 x 40
Material: UVFS
Reflectivity, %: >99.2
S1 Flatness, PV: <λ/4 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1000-1064
Wedge / Parallelism error: <1 arcmin
2
€285.00
9432653
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 12.7
Material: UVFS (Corning 7980 0F)
Protective chamfers: 0.1-0.2 mm x 45°
Reflectivity, %: >99.9
S1 Flatness, PV: <λ/6 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
9
€60.00
9432663
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
1
€60.00
9432673
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 40-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
1
€60.00
9432703
Angle of Incidence (AOI), °: 0-45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 792
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
1
€136.00
9432913
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Angle of Incidence (AOI), °: 45
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 400-700
Surface quality, S-D: 20-40
Reflectivity (s+p)/2, %: >99.0
Material: BK7
Dimensions, mm: ∅25.4 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >90
Protective chamfers: <0.25 mm x 45°
1
€60.00
9433963
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.2
Dimensions, mm: 20
Material: BK7
ROC S1, mm: -3000
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.2
Thickness, mm: 6
Wavelength, nm: 1064
1
€43.00
9434153
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 76.2
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Surface quality, S-D: 40-20
S2 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 8
Wavelength, nm: 527-532
1
€85.00
9434273
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 10
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 507-520
Wedge / Parallelism error: <1 arcmin
3
€37.00
9434283
Angle of Incidence (AOI), °: 43-47
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 15 x 10
Material: UVFS
Reflectivity, %: >99.8
S1 Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 507-520
Wedge / Parallelism error: <1 arcmin
3
€37.00
9434403
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
8
€60.00
9434413
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
3
€60.00
9434423
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: 0.5 deg (+/-5arcmin)
2
€60.00
9435103
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 20
Material: UVFS
ROC S1, mm: -500
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
4
€115.00
9435113
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 20
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
4
€115.00
9435123
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0/-0.05
Dimensions, mm: 20
Material: UVFS
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
1
€115.00
9435153
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 12.7
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
9
€25.00
9435293
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1030
Wedge / Parallelism error: <1 arcmin
1
€56.00
9435403
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 50.8
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-20
S2 Surface quality, S-D: 20-20
Thickness, mm: 6
Wavelength, nm: 1047-1064
Wedge / Parallelism error: <1 arcmin
2
€50.00
9435423
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 25.4
Material: UVFS
Reflectivity, %: >99.7
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1020-1070
Wedge / Parallelism error: <30 arcec
2
€68.00
9435443
Angle of Incidence (AOI), °: 22.5
Clear aperture: >90
Dimensions, mm: 20 x 40
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-10
Thickness, mm: 6
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
77
€40.00
9435613
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Dimensions tolerance, mm: (+0/-0.1)
Dimensions, mm: 30
Material: BK7
Reflectivity, %: >99.5
S1 Surface quality, S-D: 60-20
Thickness tolerance, mm: +0/-0.1
Thickness, mm: 6
Wavelength, nm: 527-532
Wedge / Parallelism error: <1 arcmin
1
€38.00
9435823
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 20
Material: UVFS
ROC S1, mm: -500
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
7
€88.00
9435833
Angle of Incidence (AOI), °: 0-10
Clear aperture: >90
Dimensions tolerance, mm: +0.0/-0.05
Dimensions, mm: 20
Material: UVFS
ROC S1, mm: -500
Reflectivity, %: >99.9
S1 Surface quality, S-D: 20-5
Thickness tolerance, mm: ±0.1
Thickness, mm: 5
Wavelength, nm: 1010-1050
Wedge / Parallelism error: <1 arcmin
13
€88.00
9435973
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: 25.4
Material: BK7
ROC S1, mm: -2420
Reflectivity, %: >99.5
S1 Surface quality, S-D: 20-20
Thickness, mm: 7
Wavelength, nm: 1064
Wedge / Parallelism error: <1 arcmin
3
€76.00
9500760
Centration error: <1 arcmin
Clear aperture: >90 %
Coatings:
Diameter, mm: 12.7 mm (+0/-0.1 mm)
Material: FS
Protective chamfers: 0.2-0.3 mm x 45°
S1: HR(R>99.2%)@ 650-1000 nm, AOI=0°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/8@ 632.8 nm
Surface quality, S1/S2: 20-10 S-D
Thickness, mm: 3 mm (+/-0.1 mm)
8
€43.00
9501790
Parallelism error: <1 arcmin
Thickness, mm: 6 (±0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 633nm
S2: uncoated
S1(^): HRs>99.8% @ 1030 nm, AOI = 45°
Protective chamfers: <0.3 mm x 45°
Material: UVFS (Corning 7980 0F)
LIDT: >8 J/cm² @ 1064 nm, 10 ns
Dimensions, mm: Ø12.7 (+0/-0.1)
Coatings:
Clear Aperture: >90
S1 Surface quality, S-D: 20-10
151
€20.00
9502480
Protective chamfers: <0.3 mm x 45°
Thickness, mm: 6 (±0.1)
S1 Flatness, PV IR S2 Flatness, PV: λ/8 @ 633 nm
S2: uncoated
Clear Aperture: >90
S1 Surface quality, S-D: 20-10
Parallelism error: <30 arcsec
Material: FS (Corning 7980 0F)
Dimensions, mm: Ø12.7 (+0/-0.1)
Coatings:
S1(^): HRsp>99.6% @ 1030 nm, AOI = 22.5° ± 5°
16
€20.00
9505180
Diameter, mm: 50.0 (+0/-0.1)
S1: Commercial polish
Thickness, mm: 6.0 (±0.1)
Surface quality: 20-10 S-D
Surface finish:
S2: HR (R > 99.5%) @ 355 nm, AOI = 45°
S2: Flatness: λ/10 @ 633 nm
Parallelism, arcmin: <5
Protective chamfers: protective
LIDT: > 4 J/cm² @ 355 nm, 10 ns, 10 Hz
Material: UVFS (Viosil SQ)
Coatings:
S1: -
1
€150.00
9506140
Parallelism error: <1 arcmin
Wavelength, nm: 1047-1064
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Material: BK7
Dimensions, mm: Ø25.4 (+0/-0.1) x 6 (±0.01)
Clear Aperture: >90
Angle of Incidence (AOI), °: 0
Reflectivity, %: >99.5
10
€72.00
9508320
Angle of Incidence (AOI), °: 0
Clear Aperture: >90
Dimensions, mm: 12.7
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 6.35
Wavelength, nm: 755
Wedge / Parallelism error: <0.5 deg
1
€310.00
9508340
Coatings: S1: HR(>99.8%)@ 1030, AOI=0deg;
Dimensions A x B x C, mm: 12.7x3mm;
net weight: 20g/pc;
Orientation: D-cut;
1
€30.00
9508410
NEW
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Reflectivity, %: Rs>99.5; Rp>98.5
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Wavelength, nm: 250-266
Parallelism error: <1 arcmin
100
€50.00
9508420
NEW
Parallelism error: <1 arcmin
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity, %: Rs>99.5; Rp>99.0
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Clear aperture: >90
Angle of Incidence (AOI), °: 45
Wavelength, nm: 343-355
Protective chamfers: <0.25 mm x 45°
36
€50.00
9508450
NEW
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Wavelength, nm: 515
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity, %: Rs>99.5; Rp>99.0
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Clear aperture: >90
Angle of Incidence (AOI), °: 45
Parallelism error: <1 arcmin
3
€50.00
9508540
NEW
Protective chamfers: <0.25 mm x 45°
Wavelength, nm: 1020-1070
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity, %: Rs>99.6; Rp>99.0
Parallelism error: <1 arcmin
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Angle of Incidence (AOI), °: 45
Clear aperture: >90
86
€50.00
9508620
Protective chamfers: <0.25 mm x 45°
Angle of Incidence (AOI), °: 45
S1 Surface quality, S-D: 20-10
Wavelength, nm: 250-266
S1 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity, %: Rs>99.6; Rp>99.0
Parallelism error: <1 arcmin
Material: UVFS
Clear Aperture: >90
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
84
€99.00
9508700
NEW
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rs>99.5; Rp>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Wavelength, nm: 780
1
€50.00
9508760
Parallelism error: <1 arcmin
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity, %: Rs>99.5; Rp>99.0
Wavelength, nm: 1550
Material: BK7
Dimensions, mm: Ø25.4 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
Protective chamfers: <0.25 mm x 45°
7
€94.00
9510671
NEW
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Wavelength, nm: 780
1
€50.00
9510711
NEW
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Wavelength, nm: 1030
18
€50.00
9510901
NEW
Material: UVFS
Wavelength, nm: 1030
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/5 @ 632.8 nm
Reflectivity, %: Rs>99.7; Rp>99.3
Parallelism error: <1 arcmin
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Clear aperture: >90
Angle of Incidence (AOI), °: 45
Protective chamfers: <0.25 mm x 45°
2
€50.00
9510951
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Coatings:
Dimensions tolerance, mm: +0/-0.1
Dimensions, mm: Ø50.8
Material: UVFS
Parallelism error: <3 arcmin
Protective chamfers: <0.3 mm x 45°
S1 Flatness, PV: <λ/2 @ 632.8 nm
S1 Surface quality, S-D: 20-10
S1: HR(Rs>99.5%) @ 343 nm
S2: Uncoated
Thickness tolerance, mm: ±0.1
Thickness, mm: 8
9
€280.00
9511011
NEW
Material: UVFS
Wavelength, nm: 266
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity, %: >99.5
Protective chamfers: <0.25 mm x 45°
Parallelism error: <1 arcmin
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 0
2
€50.00
9511091
NEW
Angle of Incidence (AOI), °: 0
Clear Aperture: >90
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: >99.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Wavelength, nm: 780
1
€50.00
9511121
NEW
Reflectivity, %: >99.5
Clear Aperture: >90
Wavelength, nm: 1030
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Parallelism error: <1 arcmin
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Angle of Incidence (AOI), °: 0
Protective chamfers: <0.25 mm x 45°
3
€77.00
9511181
Protective chamfers: <0.25 mm x 45°
S1 Surface quality, S-D: 20-10
Wavelength, nm: 1550
S1 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity, %: >99.5
Parallelism error: <1 arcmin
Material: BK7
Dimensions, mm: Ø25.4 (+0/-0.1) x 6 (±0.1)
Angle of Incidence (AOI), °: 0
Clear Aperture: >90
5
€94.00
9511511
NEW
Protective chamfers: 0.2-0.3 mm x 45°
S2: uncoated
S2 Surface quality: polished
S1(IBS, arrow marks): HRsp>99.9%@ 532 nm, AOI=45 deg
Wavelength, nm: 532
S1 Flatness, PV: <λ/10 @ 632.8 nm
Paralellism error: <1 arcmin
Material: UVFS
LIDT: 10 J/cm², 1064 nm, 10 ns, 50 Hz
Dimensions, mm: Ø12.7 (+0/-0.1) x 6.35 (±0.1)
Coatings:
Clear Aperture: >90
S1 Surface quality, S-D: 20-10
Part Code: O-M-HR45-532-D13T6RI
13
€50.00
9521532
S1: HR@1010-1050nm, AOI 0-10 deg, HRs >99.8%, HRp >99.8%
Side surfaces: uncoated, grinded, not polished
Thickness, mm: 5 (+/-0.1) mm
S2: uncoated, grinded, not polished
Protective chamfers: 0.1-0.2mm@45deg on all facets
Dimensions A x B x C, mm: 7x12 (+0.0/-0.1) mm
Material: UVFS JGS1
49
€28.00
9524052
NEW
Material: UVFS
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 250-270
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
GDD, fs²: s-pol: ±10; p-pol: ±20
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90%
AOI, °: 45
Reflectivity (average), %: >99.0
2
€97.00
9524272
NEW
Material: UVFS
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 1000-1060
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
GDD, fs²: s-pol: ±10; p-pol: ±20
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90%
AOI, °: 0
Reflectivity (average), %: >99.5
3
€97.00
9524432
NEW
Material: UVFS
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 760-840
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
GDD, fs²: s-pol: ±10; p-pol: ±20
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90%
AOI, °: 45
Reflectivity (average), %: >99.5
Protective chamfers: <0.25 mm x 45°
2
€80.00
9524462
NEW
Material: UVFS
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 1000-1060
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
GDD, fs²: s-pol: ±10; p-pol: ±20
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90%
AOI, °: 0
Reflectivity (average), %: >99.5
1
€50.00
9524522
NEW
Material: UVFS
Wavelength, nm: 760-840
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Wedge / Parallelism error: <1 arcmin
GDD, fs²: s-pol: ±10; p-pol: ±20
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >90%
AOI, °: 45
Reflectivity (average), %: >99.5
Protective chamfers: <0.25 mm x 45°
1
€50.00
9524532
NEW
Material: UVFS
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 760-840
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
GDD, fs²: s-pol: ±10; p-pol: ±20
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >90%
AOI, °: 0
Reflectivity (average), %: >99.5
1
€50.00
9524552
NEW
Material: UVFS
Wavelength, nm: 500-532
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Wedge / Parallelism error: <1 arcmin
GDD, fs²: s-pol: ±10; p-pol: ±20
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >90%
AOI, °: 0
Reflectivity (average), %: >99.5
Protective chamfers: <0.25 mm x 45°
1
€50.00
9524562
NEW
Material: UVFS
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 500-532
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
GDD, fs²: s-pol: ±10; p-pol: ±20
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >90%
AOI, °: 45
Reflectivity (average), %: >99.5
1
€50.00
9526122
NEW
Edge thickness, mm: 6 mm (±0.1mm)
Wedge / Parallelism error: <5arcmin
Surface quality: 40-20 S-D
S2: Uncoated
S1: Rs>99.9%; Rp>99,9%@ 1550 + 1950 nm, AOI=0-22.5deg
ROC (S1): -50 mm +/-0.4%
S1 Flatness, PV IR S2 Flatness, PV: λ/8 @ 632.8 nm
Diameter, mm: 8 mm (+0/-0.1mm)
Coatings:
Clear aperture: >90%
Material: Corning 7979 Infrared
11
€221.00
9526932
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Wavelength, nm: 1550
Surface quality, S-D: 20-10
Reflectivity, %: Rs>99.98, Rp>99.93
Material: BK7
Dimensions, mm: ∅25.4 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45°
Wedge / Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
9
€50.00
9528342
Dimensions A x B x C, mm: 10x15 (+0.0/-0.1) mm;
Side surfaces: uncoated, grinded, not polished;
Thickness, mm: 5 (+/-0.1) mm;
S2: uncoated, grinded, not polished;
Material: UVFS JGS1;
Protective chamfers: 0.1-0.3mm@45deg on all facets.
S1: HR@1010-1050nm, AOI 40-50 deg, HRp >99.8%, HRs >99.8%,
3
€30.00
9531783
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/4 @ 632.8 nm
Wedge / Parallelism error: <5 arcmin
Thickness, mm: 6 (±0.1)
Surface quality, S-D: 40-20
S2: AR(Rs<0.25%)@750-850nm
S1: PR(Rs=20%±3%)@750-850 AOI 45°
Material: BK7
Dimensions, mm: Ø50.8 (+0/-0.5)
Damage threshold: > 2.5J/cm2 @ 300 ps 10Hz 800 nm
Coating:
Clear Aperture: >90
Required documents: Reflectivity curves faces A(S1), Arrow pointing on face A(S1)
2
€236.00
9533103
NEW
Wavelength, nm: 780-820
Wedge / Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Surface quality, S-D: 20-10
Reflectivity, %: >99.8
S1 Flatness, PV IR S2 Flatness, PV: <λ/7 @ 632.8 nm
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Average GDD, fs²: -150±50
Angle of Incidence, °: 0-10
Material: UVFS
1
€50.00
9536043
Length, mm: 3 (±0.05)
Surface quality, S-D: 20-10
TWD, PV: λ/8 @ 632.8 nm
Protective chamfers: 0.2 mm x 45 deg (+0.1-0x±5)
Parallelism error: <20 arcsec
Material: FS
S1 Flatness, PV IR S2 Flatness, PV: <λ/10 @ 632.8 nm
Dimensions, mm: 8 x 8 (±0.1)
Coatings on S2: Rs<0.2%@[532-660nm]
Coatings on S1: Ts>95%@[532-660nm]
Angle of Incidence (AOI), °: 45
LIDT: >1 MW/cm2 CW @ 1064 nm
Clear Aperture: >90%
63
€47.00
9544424
Coatings:
Dimensions, mm: Ø50.8 (+0.0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
LIDT: 3.5 J/cm2 @532nm; 10ns; 50Hz
Material: UVFS
Parallelism error: <2arcmin
S1: HR(Ravg>99.5%)@343nm, AOI 45°
S2: unpolished (fine grind)
Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
1
€143.00
9544534
Clear Aperture: >90
Coatings:
Dimensions, mm: Ø25.4 (+0.0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: λ/8 @ 633 nm
LIDT: >3J/cm2 for 10ns pulses @1064nm
Material: BK7
Parallelism error: < 0.5 deg
Side1: HR(R>99.0%)@800 nm, AOI=45 deg
Side2: uncoated/grinded
Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
2
€70.00
9544544
Angle of Incidence (AOI), °: 45
Coating adhesion and durability: Per MIL-C-675A
Coatings:
Dimensions, mm: Ø25.4 (+0.0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Material: UVFS
S1: HR(R>99.5%)@1030nm + HT(T>95%)@635nm
S2: AR(R<0.25%)@635nm+1030nm
Surface quality, S-D: 20-10
Thickness, mm: 5 (±0.1)
1
€198.00
9544554
Angle of Incidence (AOI), °: 45
Coating adhesion and durability: Per MIL-C-675A
Coatings:
Dimensions, mm: Ø50.8 (+0.0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Material: UVFS
S1: HR(R>99.5%)@1030nm + HT(T>95%)@635nm
S2: AR(R<0.25%)@635nm+1030nm
Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
1
€264.00
9544564
Angle of Incidence (AOI), °: 45
Coating adhesion and durability: Per MIL-C-675A
Coatings:
Dimensions, mm: Ø25.4 (+0.0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Material: UVFS
S1: HR(R>99.5%)@515nm + HT(T>95%)@635nm
S2: AR(R<0.25%)@635nm+515nm
Surface quality, S-D: 20-10
Thickness, mm: 5 (±0.1)
1
€383.00
9544584
Clear Aperture: >90
Coatings:
Dimensions, mm: Ø25.4 (+0.0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
LIDT: 3.5 J/cm2 @532nm; 10ns; 50Hz
Material: BK7
S1: HR(Ravg>99.0%)@800nm, AOI 45°
S2: AR(R<0.25%)@800nm
Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
1
€140.00
9545624
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rs>99.5; Rp>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Wavelength, nm: 800
21
€70.00
9547154
Clear aperture: >90%
Diameter, mm: 12.7 mm (+0.0/-0.1 mm)
Material: UVFS
Protective chamfers: <0.25 mm x 45°
S1: HR(Rp>99.5%)@ 1053 nm - 1064 nm, AOI = 45°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/8@633 nm (before coating <λ/10@633 nm)
Surface quality, S1/S2: 20/10 S/D (before coating, after coating some elements may be 40/20)
Thickness, mm: 5.0 mm (+/-0.1 mm)
Wedge / Parallelism error: 30 arcmin (+/-5 arcmin)
4
€38.00
9547894
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Coating adhesion and durability: Per MIL-C-675A
Coatings:
Dimensions, mm: Ø25.4 ( +0.0/-0.1) x 3 (±0.1)
S1 Flatness, PV IR S2 Flatness, PV: λ/8 @ 633 nm
LIDT: > 15 mJ/cm2 10 ns@ 1064 nm
Material: UVFS
Side1: HR(Rs > 99.8 %)@ 1030 nm
Side2: uncoated
Surface quality, S-D: 20-10
2
€70.00
9552915
Clear Aperture: >90
Coatings:
Dimensions, mm: Ø12.7 (+0/-0.1mm)
Material: UVFS
Protective chamfers: <0.3 mm x 45°
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
S1: HR(Rsp>99.6%)@1030nm AOI=0° ±5°
S2: uncoated
Thickness, mm: 5 (±0.1mm)
Wedge / Parallelism error: <1 arcmin
10
€48.00
9554085
NEW
Coatings: S1: HR (R >99.8%) @ 760-860nm + AR (R<1%) @532nm, AOI=0deg
Dimensions tolerance, mm: +/-0.1 mm
Dimensions A x B x C, mm: 20x20mm (+0/-0.1 mm)
Parallelism error: <30 arcsec
S2: AR (R<0.1%) @532nm, AOI=0deg
S1 Flatness, PV IR S2 Flatness, PV: λ/6 @ 632.8 nm
Surface quality: 40-20 S-D
Thickness, mm: 2 mm (±0.1 mm)
2
€50.00
9556025
NEW
Angle of Incidence (AOI), °: -
Central wavelength, nm: -
Clear aperture:
Comments: -
Comments: -
Dimensions tolerance, mm:
Dimensions, mm: 25.4x2
Dimensions, mm: 6.35
Material: MgF2
Protective chamfers:
ROC S1, mm: -
Reflectivity, %: >99.5/>99.0
S1 Flatness, PV:
S1 Surface quality, S-D:
Shape: -
Material: -
S1 Flatness, PV IR S2 Flatness, PV: -
Surface quality, S-D: -
Thickness tolerance, mm:
Thickness, mm: -
Configuration: -
Wavelength, nm:
Wedge / Parallelism error: <0.5 deg
Wedge / Parallelism error: -
1
€50.00
9558125
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Dimensions, mm: Ø38.1 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rs>99.5; Rp>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Wavelength, nm: 1030
2
€98.00
9558565
NEW
Group Delay Dispersion: < ± 100fs²
Thickness, mm: 6 (±0.25)
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/4 @ 632.8 nm
Required documents: Reflectivity curve
Protective chamfers: <0.5 mm x 45°
Material: BK7
Damage threshold: >1J/cm² @ 300ps, 10Hz
Coatings on S2: uncoated
Coatings on S1: HR(Rs>99.5%; Rp>98.5%) @ 750-850nm
Clear Aperture: >90
Centration error: <10 arcmin
Angle of Incidence (AOI), °: 45
Adhesion and durability: Per MIL-C-675A
Dimensions, mm: Ø30 (+0/-0.25)
2
€40.00
9558805
NEW
Surface figure S1: <λ/4 @ 632.8 nm, λ/10 RMS
Wedge / Parallelism error: <10 arcmin
Thickness, mm: 6 (±1)
Surface figure S2: <λ/4 @ 632.8 nm, λ/10 RMS
S2: > 100J/cm2 @ 10ns 10Hz 532nm
S2 Coating: AR(Rs<0.3%, Rp<0.7%)@ 532 nm
S1 LDT: > 5J/cm2 @ 10ns 10Hz 532nm
Required documents: Reflectivity curve for face A and B
Material: UVFS
Dimensions, mm: Ø50.8 (+0/-1)
Adhesion and durability: Per MIL-C-675C
Clear Aperture: >90
Circumference finish: fine grounding
Angle of Incidence (AOI), °: 45
S1 Coating: HR(Rs>99.5%, Rp>99%)@ 532 nm
Surface quality, S-D: 20-10
2
€50.00
9560876
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rs>99.5; Rp>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Wavelength, nm: 380-400
1
€92.00
9561736
Clear aperture: >90%
D-cut height: 6.35mm +/-0.1mm
Diameter, mm: 12.7mm +0/-0.1mm
S1 Flatness, PV IR S2 Flatness, PV: L/6 @ 633nm
Parallelism error: <1acrmin.
Polished: 20-10 S-D;
S1:
S2:
Surface quality: 20-10
Thickness, mm: 3mm +/-0.1mm
3
€68.00
9561806
Centration error: <1 arcmin
Clear aperture: >90 %
Coatings: (E-Beam)
Diameter, mm: 25.4 mm (+0.0/-0.1 mm)
Edge thickness, mm: 2.0 mm (+/-0.1 mm)
Material: UVFS
Protective chamfers: <0.25 mm x 45°
ROC S1, mm: +1828.0 mm (+/-0.5%)
S1: HR(R>99.5%)@1030 nm, AOI=0°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/[email protected] nm
Surface quality, S1/S2: 20/10 S/D (after coating may reduce to 40/20 S/D)
1
€152.00
9561826
Centration error: <1 arcmin
Clear aperture: >90 %
Coatings: (E-Beam)
Diameter, mm: 25.4 mm (+0.0/-0.1 mm)
Edge thickness, mm: 2.0 mm (+/-0.1 mm)
Material: UVFS
Protective chamfers: <0.25 mm x 45°
ROC S1, mm: +2285.0 mm (+/-1.0%)
S1: HR(R>99.5%)@1030 nm, AOI=0°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/[email protected] nm
Surface quality, S1/S2: 20/10 S/D (after coating may reduce to 40/20 S/D)
1
€152.00
9561926
NEW
Thickness, mm: 5
Comments: -
Reflectivity, %: >99.5
Wavelength, nm: 1030
Angle of Incidence (AOI), °: 0
Dimensions, mm: 15x45
Material: UVFS
7
€50.00
9563746
NEW
Angle of Incidence (AOI), °: 0
Clear aperture: >90
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rs>99.6; Rp>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Wavelength, nm: 1020-1070
1
€85.00
9565146
Reflectivity, %: Rs>99.8/Rp>99.6
Thickness, mm: 6
Wavelength, nm: 1030
S1 Surface quality, S-D: 20-20
S1 Flatness, PV: <λ/8 @ 632.8 nm
Material: UVFS Corning 7980 0F
Dimensions, mm: Ø25.4
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Wedge / Parallelism error: <1 arcmin
Protective chamfers: <0.3 mm x 45°
34
€25.00
9565996
NEW
Coatings on S1: AR@1064nm (R<0,25%), i=0 deg
Coatings on S2: HR@532nm (R>99%) + R=96,75(+-1,75%)@1064nm(R=95-98,5%), i=0 deg
Comments: ROC: -30 mm (+-1%)
Dimensions, mm: Ø25
Material: UVFS
Material: UVFS
Surface quality, S-D: 20-10
Thickness, mm: 6
Transmitted wavefront distortion, PV: <λ/10 @ 632.8 nm
Wedge / Parallelism error: <0.5 deg
1
€50.00
9570767
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Coatings on S1: HR(R>99.5%)@689nm
Coatings on S2: uncoated
Dimensions, mm: Ø12.7 (+0.0/-0.1)
Material: BK7
Protective chamfers: <0.25 mm x 45°
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
Wedge / Parallelism error: <1 arcmin
1
€36.00
9570797
Angle of Incidence (AOI), °: 0
Clear Aperture: >90
Coatings on S1: HR(R>99.7%)@689nm
Coatings on S2: uncoated
Dimensions, mm: Ø12.7 (+0.0/-0.1)
Material: BK7
Protective chamfers: <0.25 mm x 45°
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
Wedge / Parallelism error: <1 arcmin
2
€42.00
9573367
NEW
Surface quality, S-D: 10-5 (before coating; 20-10 after coating)
Thickness, mm: 2 (±0.15)
S1 Flatness, PV IR S2 Flatness, PV: 3/ 0.2(0.1)
Substrate:
S1: HR(R>99 %) @ 532 nm, (s+p)/2 + HR(R> 99%) @ 1064 nm, (s+p)/2, AOI=45°
Material: N-BK7
Dimensions, mm: Ø10 (+0/-0.1)
Coatings:
S2: not coated (grounded)
10
€50.00
9573377
NEW
Material: N-BK7
Thickness, mm: 1.5 (±0.1)
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: 3/1(0.2)
Chamfer: <0.3mm
S1: HR(R>95%) @ 620- 670 nm, (s+p)/2 , AOI =45°
Dimensions, mm: Ø7 (+0/-0.1)
Coating:
S2: grinded
22
€50.00
9577007
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rs>99.6; Rp>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 40-20
Wavelength, nm: 1020-1070
1
€94.00
9577027
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rs>99.6; Rp>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 60-10
Wavelength, nm: 1020-1070
1
€94.00
9577447
NEW
Clear aperture: >90%
Coatings: E-Beam
Diameter, mm: 25.4 mm (+0.0/-0.1 mm)
Your part: -
Material: UVFS
Parallelism error: <30 arcsec
Protective chamfers: <0.25 mm x 45°
S1: HR(Rp>99.0%)@730 nm - 910 nm, AOI=45°, Low GDD
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/6@633 nm (Before coating λ/8@633 nm)
Surface quality, S1/S2: 20/10 S/D
Thickness, mm: 5.0 mm (+/-0.1 mm)
1
€50.00
9577707
Adhesion and durability: Per MIL-C-675C
Angle of Incidence (AOI), °: 45
Circumference finish: fine grounding
Clear Aperture: >90
Coatings on S1: HR(Rs>99.5%; Rp>98%)@750-850nm
Damage threshold: > 1J/cm2 @ 300 ps 10Hz 800 nm
Dimensions, mm: Ø100 (+0.0/-0.5)
S1 Flatness, PV IR S2 Flatness, PV: DISCREPANCY
Group Delay Dispersion: < ± 100 fs2
Material: BK7 or Silica
Operating condition: under vacuum 10-6 mBar
Protective chamfers: <0.5 mm x 45°
S2: Commercial polishing
Surface quality, S-D: 20-10
Thickness, mm: 15 (+0.0/-0.5)
Wedge / Parallelism error: <5 arcmin
1
€390.00
9578277
NEW
Clear aperture: >90%
Coatings: E-Beam
Diameter, mm: 12.7 mm (+0.0/-0.1 mm)
Your part: -
Material: UVFS
Parallelism error: <30 arcsec
Protective chamfers: <0.25 mm x 45°
S1: HR(Rp>98.5%)@400 nm – 450 nm, AOI=45°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/6@633 nm (Before coating λ/8@633 nm)
Surface quality, S1/S2: 20/10 S/D
Thickness, mm: 5.0 mm (+/-0.1 mm)
1
€50.00
9578287
S1: HR ( R > 99.5% ) @ 355 nm
Wavelength, nm: 355
Surface quality, S-D: 20-10
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Dimensions, mm: Ø12.7 (+0/‐0.1) x 6 (±0.1)
Coatings:
Material: UVFS
Clear Aperture: 90
Angle of Incidence (AOI), °: 13 ±5°
23
€45.00
9578297
NEW
S1: Low GDD HR (Rs>97%) @ 225 - 350 nm, AOI=45°
Wedge / Parallelism error: <5 arcsec
Surface quality, S-D: 10-5
S2: Uncoated
Clear Aperture: 90
Material: UVFS
Dimensions, mm: Ø25.4 x 5
Coatings:
Protective chamfers: <0.25 mm x 45 deg
S1 Flatness, PV IR S2 Flatness, PV: λ/8 @ 632.8 nm
1
€130.00
9578637
Clear aperture: >90%
Diameter, mm: 25.4 mm
Material: BK7
S1: HR (Rs>99.5%, Rp>99.0%) @ 527-532nm. AOI=45°
S2: Uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Surface quality: 20-20 S-D
Thickness, mm: 6 mm
4
€59.00
9579007
Angle of Incidence (AOI), °: 45
Clear Aperture: 82
Dimensions tolerance, mm: +0/-0.1
Dimensions, mm: Ø25.4
Material: BK7
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rs>99.5; Rp>99.0
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-10
Thickness tolerance, mm: ±0.1
Thickness, mm: 6
Wavelength, nm: 1047-1064
Wedge / Parallelism error: <1 arcmin
2
€68.00
9579117
Angle of Incidence (AOI), °: 45
Coating adhesion and durability: Per MIL-C-675A
Coatings:
Dimensions, mm: Ø25.4 (+0.0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Material: UVFS
S1: HR(R>99.2%)@343nm + HT(T>95%)@635nm
S2: AR(R<0.25%)@635nm+343nm
Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
1
€105.00
9580558
Angle of Incidence (AOI), °: 45°
Clear aperture: >90 %
Coating adhesion and durability: Per MIL-C-675A
Coatings on S1: HR(Rs>99.5/Rp>98.5%)@266 nm
Coatings on S2: uncoated
Dimensions, mm: Ø38.1 (+0/-0.1)
S1 Flatness, PV IR S2 Flatness, PV: λ/8@ 633 nm
Material: UVFS
Our ref: MI-266-38.1-5-45-UV
Surface quality, S-D: 20-20
Thickness, mm: 5 (±0.1)
2
€95.00
9580568
Adhesion and durability: Per MIL-C-675C
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Damage threshold: > 1J/cm2 @ 300 ps 10Hz 800 nm
Dimensions, mm: Ø127 (+0/-1)
Group Delay Dispersion: < ± 100 fs2
Material: BK7
NOTE: R<99% @ 730-750nm
Parallelism error: < 5 arcmin
Reflectivity, %: >99
Required documents: Reflectivity curve Face A (S1)
S1 Flatness, PV: <λ @ 632.8 nm
S1 Surface quality, S-D: 20-10
S2: Fine grounding, uncoated
Thickness, mm: 10 (±1)
Wavelength, nm: 730-870
1
€440.00
9581598
Dimensions, mm: Ø25.4 (+0/-0.6)
Material: UVFS
Wedge / Parallelism error: <30 arcmin
S1 Surface quality, S-D: 40-20
S1 Flatness, PV: <λ/4 @ 632.8 nm
ROC S1, mm: -2000 (±3%)
Adhesion and durability: Per MIL-C-675C
Angle of Incidence (AOI), °: 8
Damage threshold: > 0.3J/cm² 800nm
Coatings on S1: HR(R<99%)@750-850nm
Clear Aperture: >90
Circumference finish: fine grounding
Group Delay Dispersion (P pol.): < 50 fs² @ 750-850 nm
Edge Thickness, mm: 5 (±1)
Center Thickness, mm: 4.96 (±1)
2
€270.00
9584318
NEW
S1: HRp>99.5% @ 515 nm, AOI = 45°
Thickness, mm: 6 (±0.1)
Surface quality, S-D: 20-10
S2: uncoated
Protective chamfers: <0.3 mm x 45°
Parallelism error: <1 arcmin
Material: FS (Corning 7980 0F)
LIDT: 15 J/cm² @ 1064 nm, 10 ns, 10 Hz
Dimensions, mm: Ø19 (+0/-0.1)
Coatings:
Clear aperture: > 90%
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 633 nm
1
€50.00
9584838
NEW
S1: HR(Rs>99.5%) @ 343 nm, IBS
Protective chamfers: <0.25 mm x 45˚
Thickness, mm: 10
Thickness tolerance, mm: ±0.1
S2 Surface quality, S-D: 20-10
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/2 @ 632.8 nm
Material: UVFS Corning 7980 0F
Dimensions, mm: Ø50.8
Angle of Incidence (AOI), °: 45
Dimensions tolerance, mm: +0/-0.1
S2: Uncoated, polished
Coatings:
Clear Aperture: >90
Parallelism error: <3 arcmin
23
€280.00
9585138
NEW
Clear Aperture: >90%
Coatings:
Diameter, mm: 12.7 (+0/-0,1mm)
LIDT: >5-7 J/cm2 for 10 ns pulses @1064nm
Material: BK7
S1: HR(R>99.5%)@1550 nm, AOI=45deg
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Surface quality: 20-30 S-D
Thickness, mm: 4,8 (+/-0,1mm)
8
€50.00
9585248
NEW
Clear aperture: >90%
Coatings: E-Beam
Diameter, mm: 12.7 mm (+0.0/-0.1 mm)
Your part: -
Material: UVFS
Parallelism error: <30 arcsec
Protective chamfers: <0.25 mm x 45°
S1: HR(Rp>99%)@1700 nm, AOI=45°, Low GDD, optimized for p-pol.
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/6@633 nm (Before coating λ/8@633 nm)
Surface quality, S1/S2: 20/10 S/D
Thickness, mm: 5.0 mm (+/-0.1 mm)
2
€50.00
9585258
NEW
Clear aperture: >90%
Coatings: E-Beam
Diameter, mm: 25.4 mm (+0.0/-0.1 mm)
Your part: -
Material: UVFS
Parallelism error: <30 arcsec
Protective chamfers: <0.25 mm x 45°
S1: HR(Rp>99%)@1700 nm, AOI=45°, Low GDD, optimized for p-pol.
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/6@633 nm (Before coating λ/8@633 nm)
Surface quality, S1/S2: 20/10 S/D
Thickness, mm: 5.0 mm (+/-0.1 mm)
2
€50.00
9585468
NEW
S1: HRs(Rs>99.8 %)@1030 nm, AOI=45°
S2: uncoated
Thickness, mm: 6.0 (+/-0.1 mm)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8@633nm
Parallelism error: <1 arcmin
Clear aperture: >90 %
Material: FS (Viosil SQ)
Coatings:
LIDT: >8 J/cm^2 @1064 nm 10 ns
Surface quality: 20-10 S-D
Protective chamfers: <0.3 mm x 45°
Diameter, mm: 12.7 (+0/-0.1 mm)
60
€50.00
9590899
NEW
Center thickness, mm: 6
Clear aperture: > 90%
Coatings:
Diameter, mm: 25,4
S1 Flatness, PV IR S2 Flatness, PV: λ/3 @ 632.8 nm
S1 Flatness, PV IR S2 Flatness, PV: L/8 @ 632.8 nm
Material: BK7
Protective chamfers: 0.25 x 45°
ROC S1, mm: -1000
ROC2, mm: ∞
S1: PR (99,9S2: AR (R<0,5%) @ 400 – 550 nm, AOI=0 deg (flat side)
Surface quality: 20-10 S-D
Wedge / Parallelism error: <1 arcmin
2
€50.00
9590959
Angle of Incidence (AOI), °: 0-45
Clear Aperture: >90
Coatings:
Diameter tolerance, mm: +0/-0.1
Dimensions, mm: Ø25.4
S1 Flatness, PV IR S2 Flatness, PV: <λ/6-λ/8 @ 632.8 nm
Material: UVFS
Protective chamfers: <0.25 mm x 45°
S1: HR(R>99.5%) @ 355 nm
S2: uncoated
Surface quality, S-D: 40-20
Thickness tolerance, mm: ±0.1
Thickness, mm: 6.35
Wedge / Parallelism error: <1 arcmin
3
€76.00
9593429
NEW
Center thickness, mm: 6
Centration error: <1 arcmin
Clear aperture: > 90%
Coatings:
Diameter, mm: 25,4
S1 Flatness, PV IR S2 Flatness, PV: L/8 @ 632.8 nm
Material: BK7
Protective chamfers: 0.25 x 45°
ROC S1, mm: ∞
ROC2, mm: ∞
Surface quality: 20 - 10 S-D
1
€50.00
9594109
NEW
Clear Aperture: >90
Coatings:
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
S1: HR(Rs>99.9%,Rp>99.8%, GDDsp<20 fs^2) @ 1010-1050 nm, AOI=45 deg, MS
S2: uncoated
S1 Flatness, PV: <λ/8@ 632.8 nm on each 6 mm diameter area in clear aperture
S2 Surface quality, S-D: commercially polished
S1 Surface quality, S-D: 20-20 S-D
10
€50.00
9594289
NEW
Clear aperture: >90%
Coatings on S1: HR>99%@ 2050nm, AOI 45deg
S1 Flatness, PV IR S2 Flatness, PV: L/3 - L/5
LIDT: >10J/cm2@2050nm, 10ns, 10Hz
Material: UVFS
Parallelism error: <3 arcmin
Size, mm: Ø25.4 x 6 mm
Surface quality: 20-40 SD
2
€50.00
9594399
NEW
Clear aperture: >90%
Coatings on S1: HR>99%@ 2050nm, AOI 0 deg
S1 Flatness, PV IR S2 Flatness, PV: L/3 - L/5
LIDT: >10J/cm2@2050nm, 10ns, 10Hz
Material: UVFS
Parallelism error: <3 arcmin
Size, mm: Ø25.4 x 6 mm
Surface quality: 20-40 SD
2
€50.00
9595959
NEW
Material: BK7
Surface quality, S-D: 40-20
Thickness, mm: 6 (±0.1)
S2: commercial polishing
Dimensions, mm: Ø30 (+0/-0.25)
Coatings on S1: HR(Rs>99.8%; Rp>99.3%)@532nm
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Chamfer: <0.5mm @45°
Circumference finish: Fine grounding
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Wedge / Parallelism error: <10 arcmin
13
€50.00
9596069
NEW
Material: BK7
Thickness, mm: 6 (+0/-0.25)
Surface quality, S-D: 40-20
Protective chamfers: <0.5mm@45°
Parallelism error: <10 arcmin
LIDT: >5J/cm2 @ 10ns; 10Hz
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Dimensions, mm: Ø40 (+0/-0.25)
Coatings on S1: HR(Rs>99.8%; Rp>99.3%)@532nm
Clear aperture: >90
Angle of Incidence (AOI), °: 45
Circumference finish: fine grounding
1
€50.00
9597419
NEW
Clear Aperture: >90
Coatings:
Dimensions, mm: Ø12.7 (+0/-0.1)
Material: UVFS
Protective chamfers: <0.3 mm x 45°
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
S1: HR(Rsp>99.6%) @ 1030 nm AOI= 0° ±5°
S2: uncoated
Thickness, mm: 6 (±0.1)
1
€50.00
9599729
NEW
Parellelism error: <1 arcmin
Thickness, mm: 1 (±0.1 mm)
S2 Surface quality, S-D: fine grinded
S1 Surface quality, S-D: 20-10 S-D after coatings
S1 Flatness, PV IR S2 Flatness, PV: S2: uncoated
Protective chamfers only on 5 mm side: 0.1-0.15 mm x 45 deg
Material: BK7
Dimensions, mm: 19 x 5 (+0/-0.1 mm)
Coatings:
Clear Aperture: 100 %
Chips: <0.1 mm
S1(^): HR (Rs>99.7% Rp>99.3 %) @ 980 nm, AOI=45°
6
€50.00
9600620
NEW
Clear aperture: 100% (gali apgaruoti šoninės 5mm briaunos)
Material: UVFS
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Substrate thickness: 5 mm
Surface quality: 20-10 S-D, po garinimo 40/20
Protective chamfers: <0.25 mm x 45 deg
High LIDT: >10J/cm2@1064, 10ns, 10Hz
Drawing: 205-10061
Coated area: 17.64 mm x 30 mm (side without cut)
Bevel: 45 deg +/-1 deg
Coatings per surface:
1
€50.00
9601920
Protective chamfers: 0.1-0.3mm@45deg on all facets.
Dimensions A x B x C, mm: 20x15 (+0.0/-0.1) mm;
Material: UVFS JGS1;
S1: HRs(>99.8%)@1030nm, AOI 50deg
S2: uncoated, grinded;
Side surfaces: uncoated, grinded, not polished;
Thickness, mm: 7 (+/-0.1) mm;
1
€103.00
9602660
NEW
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Material: UVFS
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
Reflectivity, %: Rs>99.5; Rp>98.5
S1 Flatness, PV: <λ/8 @ 632.8 nm
S1 Surface quality, S-D: 20-20
Wavelength, nm: 266
2
€50.00
9606600
NEW
S1 Flatness, PV: S1 Surface quality, S-D: 20-10 S-D
S2 Surface quality, S-D: commercially polished
S1(^): HR(Rs>99.7% Rp>99.3%) @ 980 nm, AOI=45°
Clear aperture: >90 %
Parallelism error: <1 arcmin
Dimensions A x B x C, mm: 25 mm x 25 mm (+0/-0.1 mm)
S2: uncoated
Material: FS
Thickness, mm: 6 mm (+/-0.1 mm)
1
€50.00
9607570
Parallelism error: <1 arcmin
Wavelength, nm: 1030
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1) x 6 (±0.1)
Clear aperture: >90
Angle of Incidence (AOI), °: 45
Reflectivity, %: Rs>99.5; Rp>99.0
2
€65.00
9611891
NEW
S1(^): HRs>99.8% @ 1030 nm, AOI = 31.6°
S1 Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 633nm
Clear Aperture: >90
Parallelism error: <1 arcmin
Coatings:
Material: UVFS (Corning 7980 0F)
LIDT: >8 J/cm² @ 1064 nm, 10 ns
S2: uncoated
Dimensions, mm: Ø12.7 (+0/-0.1)
Protective chamfers: <0.3 mm x 45°
37
€50.00
9612531
NEW
Thickness, mm: 6 mm (+/-0.1 mm)
S1 Flatness, PV:
S2 Surface quality, S-D: commercially polished
Diameter, mm: 12.7 mm (+0/-0.1 mm)
S1 Surface quality, S-D: 20-10 S-D
S1(IBS, arrow marks): HRsp>99.9%@ 1010-1050 nm, AOI=0-10 deg (>99.99%@ 1030 nm @ AOI=0 deg)
Protective chamfers: 0.2-0.3 mm x 45 deg
Material: FS
Coatings:
S2: uncoated
Parallelism error: <1 arcmin
Clear aperture: >90 %
12
€50.00
9612551
NEW
S1(IBS, arrow marks): HRsp>99.9%@ 505-525 nm, AOI=0-10 deg (>99.95%@ 515 nm, AOI=0 deg)
Thickness, mm: 6 mm (+/-0.1 mm)
S2 Surface quality, S-D: commercially polished
S1 Surface quality, S-D: 20-10 S-D
S2: uncoated
Protective chamfers: 0.2-0.3 mm x 45 deg
Parallelism error: <1 arcmin
Material: FS
Diameter, mm: 12.7 mm (+0/-0.1 mm)
Coatings:
Clear aperture: >90 %
S1 Flatness, PV:
13
€50.00
9612571
NEW
S2: uncoated
S1(IBS): HRsp>99.9%@ 1010-1050 nm, AOI=0-10° (>99.99%@ 1030 nm @ AOI=0°)
S2 Surface quality, S-D: commercially polished
S1 Surface quality, S-D: 20-10 S-D
Surface flatness (plano), S1: Protective chamfers: 0.2-0.3 mm x 45 deg
Material: FS
Edge thickness, mm: 6 mm (+/-0.1 mm)
Diameter, mm: 12.7 mm (+0/-0.1 mm)
Coatings:
Clear aperture: >90 %
Centration error: <3 arcmin
Surface irregularity (curved), S1: ROC S1, mm: +150 mm +/-0.5%
1
€50.00
9616141
NEW
Parallelism error: <1 arcmin
S1 Surface quality, S-D: 20-20
S1 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
Wavelength, nm: 1020-1070
Material: UVFS
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
Reflectivity, %: Rs>99.7; Rp>99.0
16
€50.00
9616841
NEW
ROC2, mm: ∞
Surface quality: 30 - 20 S-D
ROC S1, mm: ∞
Protective chamfers: 0.25 x 45°
S1 Flatness, PV IR S2 Flatness, PV: L/8 @ 632.8 nm
Diameter, mm: 25,4
Coatings:
Clear aperture: > 90%
Centration error: <1 arcmin
Center thickness, mm: 6
Material: BK7
1
€50.00
9618661
NEW
Surface flatness S1: <λ/4 @ 632 nm
Thickness, mm: 1 (±0.1)
S2 Surface quality, S-D: commercially polished (80-50 S-D)
S1 Surface quality, S-D: 20-20 S-D
S1: HR(Rs>99.5%,Rp>99%) @ 355 nm, AOI=45°
Protective chamfers: <0.1 mm x 45°
Material: UVFS (Corning 7980 0F)
Dimensions, mm: 15 x 6 (+0/-0.1)
S2: uncoated
Coatings:
Clear Aperture: >90
1
€50.00
9618671
NEW
S1: HR(Rs>99.5%,Rp>99%) @ 355 nm, AOI=45°
Thickness, mm: 1 (±0.1)
S2 Surface quality, S-D: commercially polished (80-50 S-D)
S1 Surface quality, S-D: 20-10 S-D
S2: uncoated
Protective chamfers: <0.1 mm x 45°
Material: UVFS (Corning 7980 0F)
Dimensions, mm: 15 x 6 (+0/-0.1)
Coatings:
Clear Aperture: >90
Surface flatness S1: <λ/4 @ 632 nm
1
€50.00
9619461
NEW
S1: HR>99,5%@ 750-850 Low GDD, AOI=45 deg
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 6 (±0.1)
Surface quality, S-D: 20-10 after coating
Protective chamfers: 0.1-0.3 mm x 45°
Material: UVFS
GDD, fs²: s-pol: ±20; p-pol: ±50
Dimensions, mm: Ø50.8 (+0/-0.1)
Chips: <0.1 mm
Clear Aperture: >90%
2
€50.00
9620292
NEW
S1 Flatness, PV IR S2 Flatness, PV: λ/4@633 nm (Before coating λ/10@633 nm)
Surface quality, S1/S2: 20/10 S/D
S2: uncoated
S1: HR(Rs>99.5%)@1900 nm – 2200 nm, AOI=45°
Paralleslism error: <5 arcmin
Material: UVFS (Corning 7908 0F)
Your part: #
Clear aperture: >90%
Edge thickness, mm: 3.0 mm (+/-0.1 mm)
Diameter, mm: 12.7 mm (+0.0/-0.1 mm)
Coatings: IBS
Protective chamfers: <0.25 mm x 45°
1
€50.00
9620322
NEW
Clear aperture: >90%
Coatings: e-Beam
Diameter, mm: 25.4 mm (+0.0/-0.1 mm)
Edge thickness, mm: 3.0 mm (+/-0.1 mm)
Your part: #
Material: UVFS (Corning 7980 0F)
Paralleslism error: <5 arcmin
Protective chamfers: <0.25 mm x 45°
S1: Silver + SiO₂, R>97%, 45°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: λ/10@633 nm
Surface quality, S1/S2: 20/10 S/D
2
€50.00
9620332
NEW
Clear aperture: >90%
Coatings: IBS
Diameter, mm: 12.7 mm (+0.0/-0.1 mm)
Edge thickness, mm: 3.0 mm (+/-0.1 mm)
Your part: #
Material: UVFS (Corning 7908 0F)
Paralleslism error: <5 arcmin
Protective chamfers: <0.25 mm x 45°
S1: HR(Rs>99.5%)@1450 nm – 1750 nm, AOI=45°
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: λ/4@633 nm (Before coating λ/10@633 nm)
Surface quality, S1/S2: 20/10 S/D
3
€50.00
9621992
NEW
LIDT: >2 J/cm² @ 800 nm; 300 ps; 10 Hz
Coatings on S1: HR(R>99.7%)@750-850nm
Wedge / Parallelism error: <5 arcmin
Thickness, mm: 6 (±0.5)
Surface quality, S-D: 10-5 before coating
Material: UVFS
LIDT: >1 J/cm² @ 800 nm; 300 ps; 10 Hz
Group Delay Dispersion: < ± 100 fs² over 750-850nm
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 @ 632.8 nm
Coatings on S2: AR(R<0.3%)@750-850nm
Clear aperture: >90%
Angle of Incidence (AOI), °: 0
Adhesion and durability: Per MIL-C-675A
Dimensions, mm: Ø25.4 (+0/‐0.5)
25
€50.00
9622392
NEW
Material: BK7
Surface quality, S-D: 20-20
S2: Uncoated
S1: HR (R>99%) @ 1053, AOI=45° (+/- 5°)
Parallelism error: <3 arcmin
LIDT: >0.64 J/cm2 @ 1053 nm, Pulse @ 3ns
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Dimensions, mm: Ø15.0 (+0/-0.5) x 5 (±0.1)
Coatings:
3
€50.00
9622812
S1 Surface quality, S-D: 20-10
Dimensions tolerance, mm: +0/-0.1
Thickness, mm: 10
Thickness tolerance, mm: ±0.1
S2: Uncoated
S2 Surface quality, S-D: 20-10
S1: HR(Rs>99.5%)@343 nm, IBS
Protective chamfers: <0.3 mm x 45˚
Parallelism error: <3 arcmin
Angle of Incidence (AOI), °: 45
Dimensions, mm: Ø50
Clear Aperture: >90
Coatings:
S1 Flatness, PV: <λ/2 @ 632.8 nm
Material: UVFS Corning 7980 0F
1
€280.00
9623352
NEW
Dimensions, mm: -280 x 160 x 20
S2: uncoated
S1: HR(Rsp>99.5%)@1020 nm - 1040 nm, AOI=45°
Material: MgF2
Coatings:
2
€50.00
9623662
NEW
Parallelism error: <1 arcmin
Wavelength, nm: 343-355
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm: Ø38.1 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
Reflectivity, %: Rs>99.5; Rp>99.0
3
€50.00
9623692
NEW
Protective chamfers: <0.25 mm x 45°
Wavelength, nm: 780
S1 Surface quality, S-D: 20-10
Reflectivity, %: Rs>99.5; Rp>99.0
Parallelism error: <1 arcmin
Material: UVFS
Dimensions, mm: Ø25.4 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
S1 Flatness, PV: <λ/8 @ 632.8 nm
5
€50.00
9624552
NEW
Surface flatness S1: Thickness, mm: 3 (±0.1 mm)
S1 Surface quality, S-D: 20-10 S-D after coatings
S2: uncoated
S1: S1(^): HR(Rs>99.7% Rp>99.3%) @ 1060 nm, AOI=45°
Parallelism error: <1 arcmin
Chips: <0.1 mm
Material: BK7
Clear Aperture: 100%
Dimensions, mm: 17 x 20 (+0/-0.1 mm)
Coatings:
S2 Surface quality, S-D: 60-40 S-D commercially polished
Protective chamfers: 0.15-0.25 mm x 45°
1
€50.00
9631373
NEW
S2: uncoated
Thickness, mm: 10 mm (+/-0.1 mm)
S2 Surface quality, S-D: commercially polished
Surface flatness (PV), S1: S1 (^): HR(Rs>99.7%, Rp>99.3%, GDDsp<30 fs^2)@ 1030 nm +/-2.5 nm, AOI=45 deg
Protective chamfers: 0.1-0.3 mm x 45 deg
Perpendicularity error: <1.5 arcmin
Parallelism error: <30 arcsec
Material: UVFS (Corning 7980 0F)
Dimensions A x B x C, mm: 55 mm x 30 mm (+0/-0.1 mm)
Coatings per surface:
Clear aperture: 100 %
S1 Surface quality, S-D: 20-10 S-D (arrow marks)
3
€50.00
9631383
NEW
Coatings per surface:
Surface flatness (PV), S1:
Thickness, mm: 10 mm (+/-0.1 mm)
S2 Surface quality, S-D: commercially polished
S1 Surface quality, S-D: 20-10 S-D (arrow marks)
S2: uncoated
S1 (^): HR(Rs>99.7%, Rp>99.3%, GDDsp<30 fs^2)@ 1030 nm +/-2.5 nm, AOI=45 deg
Protective chamfers: 0.1-0.3 mm x 45 deg
Perpendicularity error: <1.5 arcmin
Parallelism error: <30 arcsec
Dimensions A x B x C, mm: 55 mm x 30 mm (+0/-0.1 mm)
Clear aperture: 100 %
Material: UVFS (Corning 7980 0F)
3
€50.00
9634163
NEW
LIDT: >7 J/cm² @ 1064 nm, 10 ns, 10 Hz
Wedge / Parallelism error: <5 arcmin
Thickness, mm: 5 (±0.1)
Surface quality, S-D: 40-20
S2: uncoated, commercial polishing
Material: BK7
S1 Flatness, PV IR S2 Flatness, PV: <λ/4 @ 632.8 nm
Dimensions, mm: Ø38.1 (+0/‐0.5)
Coatings on S1: HR(Rs>99.5%;Rp>99%)@1064nm + HR(Rs>80%;Rp>80%)@632nm
Clear aperture: >90%
Adhesion and durability: Per MIL-C-675C
Angle of Incidence (AOI), °: 45
6
€50.00
9638593
NEW
Surface flatness S1: S2 Surface quality, S-D: fine grinded
Thickness, mm: 5 mm (+/-0.1 mm)
S1 Surface quality, S-D: 20-10 S-D
Surface flatness S2: not specified
S1: S1(^): HR(Rs>99.7% Rp>99.3%) @ 980 nm, AOI=45 deg
Parallelism error: <1 arcmin
Chips: <0.1 mm
Material: BK7
Clear aperture: 18 mm x 10 mm
Coatings:
Dimensions A x B x C, mm: 20 mm x 10 mm (+0/-0.1 mm)
S2: uncoated
2
€50.00
9638973
NEW
Reflectivity, %: R>99.5
Wavelength, nm: 355
S1 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
Parallelism error: <1 arcmin
Material: UVFS
Dimensions, mm: Ø38.1 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
S1 Surface quality, S-D: 20-10
1
€50.00
9643784
NEW
S1/S2 Surface quality, S-D: 20-10
Thickness, mm: 6 (±0.1)
S1 Flatness, PV IR S2 Flatness, PV: λ/8 @ 633 nm
S1: HRsp(R>99.6%) @ 1030 nm, AOI = 22.5° ± 5°
Protective chamfers: <0.3 mm x 45°
Parallelism error: <30 arcsec
Material: FS (Corning 7980 0F)
Dimensions, mm: Ø12.7 (+0/-0.1)
Coatings:
Clear Aperture: >90
S2: uncoated
34
€50.00
9644084
NEW
Dimensions, mm: 25.4
Coating: HR@1064nm, AOI 45 deg
 1
€50.00
9647244
NEW
Surface quality, S-D: 20-10
AOI, °: 45
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 340-370
Reflectivity (average), %: >99.5
Protective chamfers: <0.25 mm x 45°
Clear Aperture: >90%
GDD, fs²: s-pol: ±10; p-pol: ±20
Material: UVFS
Dimensions, mm: Ø25.4 (+0/-0.1) x 6 (±0.1)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
2
€50.00
9651345
NEW
Drawing: 11078_Rev02
Part Number: 11078
Part Name: MP-25.4-FS-HR980+1040-45
1
€50.00
9651355
NEW
S1: HRsp>99.5% @ 1030nm, AOI = 0-12.5°
Thickness, mm: 6.0 (±0.1)
Sagitta, mm: 6.15 (+0/-0.1)
S2: uncoated
S1 Surface flatness: λ/8 @ 633 nm
Protective chamfers: <0.3 mm x 45°
Parallelism error: <30 arcsec
S1 Surface quality, S-D: 20-10
Clear Aperture: >90
Coatings:
Material: UVFS
Outer dimensions, mm: Ø12.7 (+0/-0.1)
1
€50.00
9652105
NEW
Material: UVFS (C7980)
Wavelength, nm: 2050-2150
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 6 (±0.1)
Surface quality, S-D: 40-20
Protective chamfers: 0.1-0.3 mm x 45°
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings on S2: uncoated
Coatings on S1: HR(R>99%)@2050-2150nm
Angle of Incidence (AOI), °: 0
Clear aperture: >90
S1 Flatness, PV IR S2 Flatness, PV: <λ/2 @ 632.8 nm
1
€50.00
9652125
NEW
Wavelength, nm: 2050-2150
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 6 (±0.1)
Surface quality, S-D: 40-20
Protective chamfers: 0.1-0.3 mm x 45°
Material: UVFS (C7980)
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings on S2: uncoated
Coatings on S1: HR(R>99%)@2050-2150nm
Clear aperture: >90
Angle of Incidence (AOI), °: 45
S1 Flatness, PV IR S2 Flatness, PV: <λ/2 @ 632.8 nm
1
€50.00
9652135
NEW
Dimensions, mm: Ø25.4 (+0/-0.1)
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 1900-2150
Thickness, mm: 6 (±0.1)
Surface quality, S-D: 40-20
Protective chamfers: 0.1-0.3 mm x 45°
Angle of Incidence (AOI), °: 45
S1 Flatness, PV IR S2 Flatness, PV: <λ/2 @ 632.8 nm
Coatings on S2: uncoated
Coatings on S1: HR(R>99%)@1900-2150nm
Clear aperture: >90
Material: UVFS (C7980)
1
€50.00
9652145
NEW
Protective chamfers: 0.1-0.3 mm x 45°
Material: UVFS (Corning 7980)
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 5 (±0.1)
ROC S1, mm: +3000 (±3%)
Irregularity, PV: <λ/4 @ 632.8 nm
Angle of Incidence (AOI), °: 0
Dimensions, mm: Ø25.4 (+0/‐0.1)
LIDT: >10 J/cm² @ 1064 nm, 10 ns, 10 Hz
Coatings on S1: HR(R>99%)@ 2050-2150nm
Clear aperture: >90%
Surface quality, S-D: 40-20
1
€50.00
9652155
NEW
Irregularity, PV: <λ/4 @ 632.8 nm
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 5 (±0.1)
Surface quality, S-D: 40-20
ROC S1, mm: +2000 (±3%)
Protective chamfers: 0.1-0.3 mm x 45°
LIDT: >10 J/cm² @ 1064 nm, 10 ns, 10 Hz
Dimensions, mm: Ø25.4 (+0/‐0.1)
Coatings on S1: HR(R>99%)@ 2050-2150nm
Clear aperture: >90%
Angle of Incidence (AOI), °: 0
Material: UVFS (Corning 7980)
1
€50.00
9652165
NEW
Protective chamfers: 0.1-0.3 mm x 45°
Irregularity, PV: <λ/4 @ 632.8 nm
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 5 (±0.1)
Surface quality, S-D: 40-20
ROC S1, mm: +1000 (±3%)
LIDT: >10 J/cm² @ 1064 nm, 10 ns, 10 Hz
Angle of Incidence (AOI), °: 0
Dimensions, mm: Ø25.4 (+0/‐0.1)
Coatings on S1: HR(R>99%)@ 2050-2150nm
Clear aperture: >90%
Material: UVFS (Corning 7980)
1
€50.00
9652175
NEW
LIDT: >10 J/cm² @ 1064 nm, 10 ns, 10 Hz
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 5 (±0.1)
Surface quality, S-D: 40-20
ROC S1, mm: +500 (±3%)
Material: UVFS (Corning 7980)
Irregularity, PV: <λ/4 @ 632.8 nm
Dimensions, mm: Ø25.4 (+0/‐0.1)
Coatings on S1: HR(R>99%)@ 2050-2150nm
Clear aperture: >90%
Angle of Incidence (AOI), °: 0
Protective chamfers: 0.1-0.3 mm x 45°
1
€50.00
9652185
NEW
Protective chamfers: 0.1-0.3 mm x 45°
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 5 (±0.1)
Angle of Incidence (AOI), °: 0
Surface quality, S-D: 40-20
ROC S1, mm: -3000 (±3%)
LIDT: >10 J/cm² @ 1064 nm, 10 ns, 10 Hz
Irregularity, PV: <λ/4 @ 632.8 nm
Dimensions, mm: Ø25.4 (+0/‐0.1)
Clear aperture: >90%
Coatings on S1: HR(R>99%)@ 2050-2150nm
Material: UVFS (Corning 7980)
1
€50.00
9652195
NEW
LIDT: >10 J/cm² @ 1064 nm, 10 ns, 10 Hz
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 5 (±0.1)
Surface quality, S-D: 40-20
ROC S1, mm: -5000 (±3%)
Material: UVFS (Corning 7980)
Irregularity, PV: <λ/4 @ 632.8 nm
Dimensions, mm: Ø25.4 (+0/‐0.1)
Coatings on S1: HR(R>99%)@ 2050-2150nm
Clear aperture: >90%
Angle of Incidence (AOI), °: 0
Protective chamfers: 0.1-0.3 mm x 45°
1
€50.00
9652975
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Thickness, mm: 5 (±0.1)
Surface quality, S-D: 20-10
S2: uncoated
S1: HRsp>98.5% @ 280-313 nm, AOI = 0-45°
Protective chamfers: <0.25 mm x 45°
Parallelism error: <1 arcmin
Material: UVFS
Dimensions, mm: Ø25.4 (+0/-0.1)
Clear Aperture: >90
Coatings:
9
€50.00
9654665
NEW
Parallelism error: <1 arcmin
Thickness, mm: 5.0 mm (+/-0.1 mm)
S2 Surface quality, S-D: 10/5 S/D
S1 Surface quality, S-D: 10/5 S/D (after coating 20/10 S/D)
Surface flatness, P-V, S2: <λ/8@633 nm
S1 Flatness, PV: <λ/10@633 nm (after coating, and stress compensation, <λ/8@633 nm)
Your part: #
S2: uncoated
Material: UVFS (Corning 7980 0F)
LIDT: >15 J/cm², 10 ns, 10 Hz, 1064 nm
Diameter, mm: 30.0 mm (+0.0/-0.1 mm)
Coatings: IBS
Clear aperture: >90%
S1: HR(R>99.95%)@1030 nm, AOI=0°
Protective chamfers: <0.25 mm x 45°
9
€50.00
9654875
NEW
Wedge / Parallelism error: <1 arcmin
AOI, °: 0-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Clear Aperture: >90%
GDD, fs²: s-pol: ±10; p-pol: ±20
Material: UVFS
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Reflectivity (average), %: >99.5
Wavelength, nm: 760-800
Surface quality, S-D: 20-10
Protective chamfers: <0.25 mm x 45°
1
€50.00
9654995
NEW
Coatings: e-Beam
Thickness, mm: 0.1 mm
Surface quality, S1/S2: n/a
S1 Flatness, PV IR S2 Flatness, PV: n/a
S2: uncoated
S1: HR(R>99.7%)@1064 nm, AOI=0°
Protective chamfers: n/a
Parallelism error: n/a
Diameter, mm: 18.0 mm (+0.0/-0.1 mm)
Clear aperture: >90%
Material: Soda lime glass
10
€50.00
9657735
NEW
Dimensions, mm: 25.4 x 25.4 (+0/-0.1) x 5 (±0.1)
S1 Flatness, PV: <λ/8 @ 632.8 nm
Wavelength, nm: 1053
S1 Surface quality, S-D: 20-10 after coating
Reflectivity, %: R>99.7
Protective chamfers: <0.25 mm x 45°
Parallelism error: <1 arcmin
LIDT: 10J/cm²
Clear aperture: >90
Angle of Incidence (AOI), °: 45
Material: UVFS
1
€50.00
9659685
NEW
S1 Surface quality S -D: 40 - 20 (after coating)
S1 Surface quality S -D: 20 - 10 (before coating)
Thickness, mm: 15
S1 Flatness, PV IR S2 Flatness, PV: S2 Surface: fine ground
Dimensions, mm: according RR-BM drawing
Dimensions, mm: 60 x 60 (one side cut according to drawing)
Dimensions tolerances: +/- 0.127 mm
Coating:
90° angle tolerance: ±1 arcmin
S1: HR (R>99,5%) @ 1000-1060 nm, AOI 54,7° MS (GDDRsp=0±30 fs²)
Material: BK7
2
€50.00
9659705
NEW
Material: BK7
Thickness, mm: 15
S1 Flatness, PV IR S2 Flatness, PV: S2 Surface: fine ground
S1: HR (R>99,5%) @ 1000-1060 nm, AOI 54,7° MS (GDDRsp=0±30 fs²)
S1 Surface quality S -D: 20 - 10 (before coating)
Dimensions, mm: according RR-LM drawing
Dimensions, mm: 60 x 60
Dimensions tolerances: +/- 0.127 mm
Coating:
90° angle tolerance: ±1 arcmin
S1 Surface quality S -D: 40 - 20 (after coating)
1
€50.00
9660586
NEW
Wavelength, nm: 1020-1070
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: 0.1-0.25 mm x 45°
Parallelism error: <1 arcmin
Material: UVFS
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
Reflectivity, %: Rs <99,8%; Rp<99,6%
86
€50.00
9662496
NEW
Dimensions, mm: Ø25 (+0/-0.1)
Wavelength, nm: 532+1064
Thickness, mm: 6 (±0.1)
S1 Surface quality, S-D: 20-10
Material: BK7
Clear aperture%: >90
Angle of Incidence (AOI), °: 45
Reflectivity, %: >99.3
3
€50.00
9662956
NEW
Protective chamfers: <0.25 mm x 45°
Surface quality, S1/S2: 10/5 S/D (after coating 20/10 S/D)
Thickness, mm: 8.0 mm (+/-0.1 mm)
S1 Flatness, PV IR S2 Flatness, PV: <λ/10@633 nm (after coating <λ/8@633 nm)
S2: uncoated
S1: HR(R>99.5%)@1319 nm, AOI=0°
Material: UVFS (Corning 7980 0F)
LIDT: >5J/cm² for 1064 nm, 1 ns, 50 Hz
Diameter, mm: 25.4 mm (+0.0/-0.1 mm)
Clear aperture: >90%
Coatings: e-Beam
Parallelism error: <30 arcsec
3
€50.00
9663306
NEW
Protective chamfers: <0.25 mm x 45°
Surface quality, S-D: 40-20
S1 Flatness, PV IR S2 Flatness, PV: <λ/4 @ 632.8 nm
S2 (plano): uncoated
ROC S1, mm: +68.55
Clear Aperture: >90
Material: UVFS
Focal length, mm: +34.3 (±3%)
Dimensions, mm: Ø25.4 (+0/-0.1)
Wavelength, nm: 632.8
Coatings:
Centration error: <3 arcmin
S1 (CX): BBHR(R>99%)@750-850nm, AOI=17deg
1
€50.00
9663586
NEW
Parallelism error: <30 arcsec
Thickness, mm: 5.0 mm (+/-0.1 mm)
Surface quality, S1/S2: 10/5 S/D (after coating 20/10 S/D)
S1 Flatness, PV IR S2 Flatness, PV: <λ/10@633 nm (After coating <λ/6@633 nm)
S2: Uncoated
S1: HR(Rp>99.0%)@650 nm - 800 nm, AOI=45°
Protective chamfers: <0.25 mm x 45°
Material: UVFS (Corning 7980 0F)
Your part: 00008075
Diameter, mm: 12.7 mm (+0.0/-0.1 mm)
Coatings: E-Beam, Low GDD
Clear aperture: >90%
1
€50.00
9663596
NEW
S1: HR(Rp>99.0%)@650 nm - 800 nm, AOI=45°
Thickness, mm: 5.0 mm (+/-0.1 mm)
Surface quality, S1/S2: 10/5 S/D (after coating 20/10 S/D)
S2: Uncoated
Protective chamfers: <0.25 mm x 45°
Parallelism error: <30 arcsec
Material: UVFS (Corning 7980 0F)
Your part: 00008076
Diameter, mm: 25.4 mm (+0.0/-0.1 mm)
Coatings: E-Beam, Low GDD
S1 Flatness, PV IR S2 Flatness, PV: <λ/10@633 nm (After coating <λ/6@633 nm)
Clear aperture: >90%
1
€50.00
9663876
NEW
Parallelism error: <1 arcmin
Wavelength, nm: 515+1030
Surface quality, S-D: 20-10
Protective chamfers: <0.25 mm x 45°
Material: UVFS
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Dimensions, mm: Ø25.4 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
Reflectivity, %: Rs>99.3; Rp>98.5
1
€50.00
9665586
NEW
S1: Ravg >97% @ 350-370 nm; Rabs >99% @ 370-1100 nm, random polarization, AOI=0 – 50°
Clear Aperture: >90
Wedge / Parallelism error: <3 arcmin
Thickness, mm: 7 (±0.1)
Surface quality:
Shape: Elliptical
S2: Commercially polished
S1, S-D: 60-40
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Flatness S1, PV: <λ/4 @ 632.8 nm
Dimensions, mm: 44 x 32 (+0.0/-0.1)
Coatings:
S2: uncoated
1
€50.00
9665606
NEW
Coatings:
S2: Commercially polished
Thickness, mm: 4 (±0.1)
Surface quality:
Wedge / Parallelism error: <3 arcmin
Shape: Round
S2: uncoated
S1, S-D: 60-40
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm: 20 (+0.0/-0.1)
Clear Aperture: >90
S1: Ravg >97% @ 350-370 nm; Rabs >99% @ 370-1100 nm, random polarization, AOI=0 – 50°
Flatness S1, PV: <λ/4 @ 632.8 nm
1
€50.00
9666016
NEW
Parallelism error: <1 arcmin
Wavelength, nm: 1030
S2: grinded
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Clear aperture: >90
Angle of Incidence (AOI), °: 45
Reflectivity, %: Rs>99.6; Rp>99.0
1
€50.00
9666806
NEW
Material: UVFS (Corning 7980 0F)
Transmitted WFD, P-V: <λ/8@633 nm per CA
Thickness, mm: 1.0 mm (+/-0.05 mm)
Surface quality, S1/S2: 20/10 S/D
S2: uncoated
Protective chamfers: <0.1 mm x 45°
Flatness, P-V, S1/S2: n/a
Coatings: e-Beam
Clear aperture: >90%
S1: HR(R>99.7%)@1064 nm, AOI=0°
10
€50.00
9666886
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/7.5 @ 632.8 nm
Wavelength, nm: 343-355
Surface quality, S-D: 20-10
Reflectivity, %: Rs>99.9, Rp>99.7
Wedge / Parallelism error: <1 arcmin
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45°
Protective chamfers: <0.25 mm x 45°
Material: UVFS
2
€50.00
9667506
NEW
Material: UVFS
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 343-355
Surface quality, S-D: 20-10
Protective chamfers: <0.25 mm x 45°
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45°
Reflectivity, %: Rs>99.9, Rp>99.7
4
€110.00
9667826
NEW
S2: Commercially polished
S1, S-D: 40-20
Wedge / Parallelism error: <3 arcmin
Thickness, mm: 20 (±0.1)
Surface quality:
Clear Aperture: >90
Material: UVFS
Flatness S1, PV: <λ/6 @ 632.8 nm per 80mm
Dimensions, mm: 174 x 130 (+0.0/-0.1)
Coatings: Uncoated
Protective chamfers: <0.25 mm x 45°
Shape: Elliptical
1
€50.00
9669726
NEW
Diameter, mm: 12.7 mm (+0/-0.1 mm)
Thickness, mm: 2 mm (+/-0.1 mm)
S1: HRavg(s+p/2)>99.5%@ 514 nm +/-5 nm, AOI=45 deg
Clear aperture: >90 %
Coatings:
S2: uncoated (polished)
5
€50.00
9670807
NEW
Protective chamfers: <0.25 mm x 45°
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 3 (±0.1)
Surface quality, S-D: 20-20
S1: HR (Ravg>99%) @ 1064 nm
Material: UVFS
LIDT: 30 mJ, 500 ps, 1064 nm when beam diameter >2 mm
S1 Flatness, PV IR S2 Flatness, PV: <λ/2-λ/4 @ 632.8 nm
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings:
Clear Aperture: >90
Angle of incidence (AOI), °: 50-60
S2: uncoated
2
€1,280.00
9671847
NEW
S1 Flatness, PV IR S2 Flatness, PV: Thickness, mm: 5 (+/-0.1)
Surface quality, S-D: 20-10
Reflection Rp, %: 99.3
Wavelength, nm: 1020 - 1040
Protective chamfers: <0.25 mm x 45
Dimensions, mm: 20 mm x 40 mm (+0/-0.1 mm)
Clear aperture: >90 %
Angle of Incidence (AOI), °: 45
GDD, fs²: <20
Material: UVFS
2
€50.00
9674307
NEW
Flatness, P-V, S1/S2: n/a
Transmitted WFD, P-V: <λ/8@633 nm per CA
Thickness, mm: 0.5 mm (+/-0.05 mm)
Surface quality, S1/S2: 20/10 S/D
S2: uncoated
S1: HR(R>99.7%)@1064 nm, AOI=0°
Material: UVFS (Corning 7980 0F)
Coatings: e-Beam
Clear aperture: >90%
Protective chamfers: <0.1 mm x 45°
20
€50.00
9677617
NEW
S1: HR(Rs>99.9%, Rp >99.8%)@1030 nm, AOI= 45°
Your part: 00008390
Thickness, mm: 10.0 mm (+0.0/-0.1 mm)
S1 Surface quality, S-D: 10/5 S/D (after coating 20/10 S/D)
S2: SiO₂ compensating coating
Protective chamfers: <0.25 mm x 45°
Parallelism error: <3 arcmin
Material: UVFS (JGS1)
Dimensions, mm: 45.0 x 25.0 mm (+0.0/-0.1 mm)
Coatings: IBS, High LIDT
Clear aperture: >90%
S1 Flatness, PV: <λ/8@633 nm per CA (after coating and compensation <λ/8@633 nm)
2
€50.00
9678507
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8nm per 1 inch
Surface quality, S-D: 20-10
S2: uncoated
S1: HR(Rs>99,7%, Rp>99.5%)@1030 AOI=40-50°
Material: UVFS
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Coating:
Clear Aperture: 90
Wedge / Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
1
€50.00
9678757
NEW
Protective chamfers: <0.25 mm x 45°
S1 Surface quality, S-D: 20-10
Wavelength, nm: 515
S1 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity, %: Rs>99.5; Rp>99.0
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Angle of Incidence (AOI), °: 45
Clear aperture: >90
Parallelism error: <1 arcmin
1
€50.00
9681348
NEW
Protective chamfers: <0.25 mm x 45°
S1: HRsp>99.5% @ 515+1030 nm, AOI = 45°
S2: uncoated
S1/S2 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Coatings: e-beam
Parallelism error: <1 arcmin
3
€50.00
9681418
NEW
Parallelism error: <1 arcmin
S2: uncoated
S1: H(Rsp>99.5%, Rp>99%) @ 355 nm, AOI = 45°
S1/S2 Surface quality, S-D: 20-10
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm: Ø30 (+0/-0.1) x 6 (±0.1)
Coatings: e-beam
Clear Aperture: >90
S1 Flatness, PV: <λ/8 @ 632.8 nm
2
€50.00
9681438
NEW
S1 Flatness, PV: <λ/8 @ 632.8 nm
S2: uncoated
S1: HRsp>99.5% @ 1064 nm, AOI = 45°
S1/S2 Surface quality, S-D: 20-10
Coatings: e-beam
Parallelism error: <1 arcmin
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Protective chamfers: <0.25 mm x 45°
Clear Aperture: >90
Material: UVFS
3
€50.00
9681458
NEW
Material: UVFS
S2: uncoated
S1: HRsp>99.5% @ 515 nm, AOI = 45°
S1/S2 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Parallelism error: <1 arcmin
Dimensions, mm: Ø30 (+0/-0.1) x 6 (±0.1)
Coatings: e-beam
Clear Aperture: >90
Protective chamfers: <0.25 mm x 45°
3
€50.00
9681468
NEW
S1 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
S2: uncoated
S1: HRsp>99.5% @ 515 nm, AOI = 45°
Material: UVFS
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Coatings: e-beam
Clear Aperture: >90
Parallelism error: <1 arcmin
S1/S2 Surface quality, S-D: 20-10
3
€50.00
9682918
NEW
Material: UVFS (Corning 7980 0F)
Thickness, mm: 6.0 mm (+0.0/-0.1 mm)
S2 Surface quality, S-D: Commercially polished
S1 Surface quality, S-D: 20/10 S/D
S1 Flatness, PV: <λ/10@633 nm per CA (after coating and stress compensation <λ/8@633 nm)
S2: uncoated
S1: HR(Rs>99.9%, Rp>99.6%)@355 nm, AOI= 0°-45°
Parallelism error: <3 arcmin
Coatings: IBS, High LIDT
Clear aperture: >90%
Protective chamfers: <0.25 mm x 45°
16
€50.00
9683448
NEW
S1: HR(Rs>99.9%, Rp>99.6%)@355 nm, AOI= 0°-45°
Weight: 0.002 kg
Thickness, mm: 6.0 mm (+0.0/-0.1 mm)
S2 Surface quality, S-D: Commercially polished
S1 Surface quality, S-D: 20/10 S/D
S2: uncoated
Protective chamfers: <0.25 mm x 45°
Parallelism error: <3 arcmin
Material: UVFS (Corning 7980 0F)
Coatings: IBS, High LIDT
Clear aperture: >90%
S1 Flatness, PV: <λ/10@633 nm per CA (after coating and stress compensation <λ/8@633 nm)
91
€50.00
9687648
NEW
S1: HR(Rs>99.0%, Rp >99.0%)@940 nm, AOI= 45°
Thickness, mm: 8.0 mm (+0.0/-0.1 mm)
S1 Surface quality, S-D: 20/10 S/D
S1 Flatness, PV: <λ/8@633 nm per CA (after coating <λ/4@633 nm)
S2: uncoated
Protective chamfers: <0.25 mm x 45°
Parallelism error: <3 arcmin
Material: UVFS (JGS1)
Your part: 00008310
Dimensions A x B x C, mm: 40.0 x 35.0 mm (+0.0/-0.1 mm)
Clear aperture: >90%
Coatings: e-Beam, High LIDT
2
€50.00
9687658
NEW
LIDT: (1000-on-1) >0,25 J/cm2, 100 fs, 100 Hz, 800 nm
Surface quality, S-D: 20-20
S2: Uncoated
S1: R(s+p)/2>99.5% @ 760-840 nm, AOI=45 deg
Wedge / Parallelism error: <1 arcmin
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 over clear aperture
Dimensions, mm: 50.8 (+0/-0.1) x 6 ( ±0.1)
Coatings:
Clear aperture: >90%
Protective chamfers: <0.25 mm x 45°
Material: UVFS (Corning 7980 0F)
1
€50.00
9687668
NEW
GDD S1: s-pol: <10 fs²; p-pol: <30 fs²
Surface quality, S-D: 20-20
S2: Uncoated
S1: R(p)>99.5% @ 380-420 nm, AOI=45 deg
Material: UVFS (Corning 7980 0F)
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 over clear aperture
Dimensions, mm: 50.8 (+0/-0.1) x 6 ( ±0.1)
Coatings:
Clear aperture: >90%
Wedge / Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
1
€50.00
9687678
NEW
Protective chamfers: <0.25 mm x 45°
Wedge / Parallelism error: <1 arcmin
Surface quality, S-D: 20-20
S2: Uncoated
S1: R(p)>99% @ 252-282 nm, AOI=45 deg
GDD S1: s-pol: <±10 fs²; p-pol: <±30 fs²
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 over clear aperture
Dimensions, mm: 50.8 (+0/-0.1) x 6 ( ±0.1)
Coatings:
Clear aperture: >90%
Material: UVFS (Corning 7980 0F)
1
€50.00
9687698
NEW
GDD S1: s-pol: <10 fs²; p-pol: <30 fs²
Wedge / Parallelism error: <1 arcmin
Surface quality, S-D: 20-20
S2: Uncoated
S1: R(s)=98(±1.5)% @ 385-415 nm, AOI=45 deg
Material: UVFS (Corning 7980 0F)
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 over clear aperture
Dimensions, mm: 50.8 (+0/-0.1) x 6 ( ±0.1)
Coatings:
Clear aperture: >90%
Protective chamfers: <0.25 mm x 45°
1
€50.00
9687708
NEW
Protective chamfers: <0.25 mm x 45°
Material: UVFS (Corning 7980 0F)
Wedge / Parallelism error: <1 arcmin
Surface quality, S-D: 20-20
S2: Uncoated
GDD S1: s-pol: <10 fs²; p-pol: <30 fs²
Clear aperture: >90%
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 over clear aperture
Dimensions, mm: 50.8 (+0/-0.1) x 6 ( ±0.1)
Coatings:
S1: R(s)=98(±1.5)% @ 252-282 nm, AOI=45 deg
1
€50.00
9687738
NEW
GDD S1: <±20 fs2
Surface quality, S-D: 40-20
Surface irregularity (PV), S1/S2: S2: Uncoated
S1: HR (R>99.5%) @ 760-840nm, AOI=0deg
Material: UVFS (Corning 7980 0F)
Edge thickness, mm: 3
Dimensions, mm: 12.7 (+0/-0.1)
Coatings:
Clear aperture: >90%
Centration error: <3 arcmin
ROC S1, mm: +75
1
€50.00
9687758
NEW
Protective chamfers: on both facets: 0.1-0.3mm @ 45°
Material: UVFS (Corning 7980 0F)
Thickness, mm: 3 (+/-0.1)
Wedge / Parallelism error: <1 arcmin
Surface quality, S-D: 20-10
S2: SiO2 compensating coating
S1: HR (Rs>99.5%) @ 800±15 nm + 400±15 nm + HR (Rs>99%) @ 267±10 nm, AOI = 45° IBS
GDD: Shown in spectra
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 over clear aperture
Dimensions, mm: 10 x 10 (+0.0/-0.1)
Clear aperture: >90%
Coatings:
LIDT: > 5 J/cm2, 10 ns, 10 Hz, 800 nm
1
€50.00
9688248
NEW
Protective chamfers: <0.5 mm x 45°
Thickness, mm: 6 (±0.1)
S2: uncoated
S1: HR(Rs>99.7%, Rp>99.0%) @ 1020-1070 nm, AOI = 45°
S1 Flatness, PV: <λ/8 @ 632.8 nm
Parallelism error: <1 arcmin
Material: UVFS
Dimensions, mm: 41 x 25.4 (+0/-0.1)
Coatings:
Clear aperture: >90
S1 Surface quality, S-D: 20-10
1
€50.00
9689278
NEW
S1 Surface quality, S-D: 20-10
S2 Surface quality, S-D: commercially polished
S1 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity, %: Rs>99.8; Rp>99.6
Protective chamfers: 0.1-0.25 mm x 45°
Parallelism error: <1 arcmin
LIDT: >10 J/cm², 10 ns, 10 Hz, 1064 nm
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Coating technology: e-beam
Coating Materials: Ta₂O₅+SiO₂
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
Wavelength, nm: 1020-1070
Material: UVFS
21
€50.00
9689748
NEW
Parallelism error: <1 arcmin
Surface quality, S-D: 20-10
Wavelength, nm: 510-532 +1020-1070
Protective chamfers: <0.25 mm x 45°
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
Reflectivity, %: Rs>99.3; Rp>98.5
Material: UVFS
1
€50.00
9690519
NEW
Material: N-BK7
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 730-800
Thickness, mm: 8
Thickness tolerance, mm: ±0.1
Surface quality, S-D: 20-10
Protective chamfers: 0.1-0.25 mm x 45°
S1 Flatness, PV IR S2 Flatness, PV: <λ/2 @ 632.8 nm per inch
Dimensions, mm: Ø50.8
Dimensions tolerance, mm: +0/-0.1
Clear aperture: >90
Angle of Incidence (AOI), °: 45
Reflectivity S, %: >99.5
2
€50.00
9690579
NEW
ROC S1, mm: +75
Centration error: <3 arcmin
Surface quality, S-D: 40-20
Surface irregularity (PV), S1/S2: S2: Uncoated
S1: HR (R>99.5%, |GDDR|<350 fs2) @ 800±15 nm+ HR (R>99.5%, |GDDR|<50fs2) @ 400±15 nm +HR (R>99%, |GDDR|<10 fs2) @ 267±10 nm, AOI 0° IBS
LIDT: > 5 J/cm2, 10 ns, 10 Hz, 800 nm
Edge thickness, mm: 3
Dimensions, mm: 12.7 (+0/-0.1)
Coatings:
Clear aperture: >90%
Material: UVFS (Corning 7980 0F)
1
€50.00
9691219
NEW
S2: uncoated
S1 Flatness, PV IR S2 Flatness, PV: <λ/4 @ 632.8 nm
ROC2, mm: infinity
ROC S1, mm: -3000 (±3%)
Protective chamfers: 0.1-0.3 mm x 45°
Material: UVFS
Edge thickness, mm: 5.0 (±0.1)
Dimensions, mm: Ø12.7 (+0/-0.1)
Coatings: S1 Concave: HR(R>99%) @ 1064 nm
Clear Aperture: >90
Angle of Incidence, °: 0
Centration error: < 3 arcmin
LIDT: 200 mJ @ 1064 nm; 7 ns; 60 Hz, Beam Ø 5 mm
Surface quality, S-D: 20-10
2
€50.00
9695469
NEW
GDD, fs²: s-pol: ±10; p-pol: ±20
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 270-340
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity (average), %: >99
Protective chamfers: <0.25 mm x 45°
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90%
AOI, °: 45
Material: UVFS
2
€50.00
9695809
NEW
Parallelism error: <1 arcmin
S2: uncoated
S1: HRsp>99.5% @ 1064 nm, AOI = 45°
S1/S2 Surface quality, S-D: 20-10
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Coatings: e-beam
Clear Aperture: >90
S1 Flatness, PV: <λ/8 @ 632.8 nm
1
€50.00
9695819
NEW
Parallelism error: <1 arcmin
S1: HRsp>99.5% @ 1030 nm, AOI = 45°
S1/S2 Surface quality, S-D: 20-10
S2: uncoated
Protective chamfers: <0.25 mm x 45°
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Coatings: e-beam
Clear Aperture: >90
S1 Flatness, PV: <λ/8 @ 632.8 nm
Material: UVFS
3
€50.00
9695829
NEW
Parallelism error: <1 arcmin
S2: uncoated
S1: HRsp>99.5% @ 1030 nm, AOI = 45°
S1/S2 Surface quality, S-D: 20-10
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm: Ø30 (+0/-0.1) x 6 (±0.1)
Coatings: e-beam
Clear Aperture: >90
S1 Flatness, PV: <λ/8 @ 632.8 nm
2
€50.00
9695899
NEW
Dimensions, mm: ∅25.4 (+0/-0.25) x 6 (±0.25)
Wavelength, nm: 720-880
Surface quality, S-D: 20-10
Reflectivity (s+p)/2, %: >99.0
Wedge / Parallelism error: <3 arcmin
Protective chamfers: <0.25 mm x 45°
Damage Threshold: > 50 mJ/cm2, 50fsec @ 800 nm
Clear Aperture: >85
Angle of Incidence (AOI), °: 0
Material: UVFS
S1 Flatness, PV IR S2 Flatness, PV: <λ/10 @ 632.8 nm
1
€50.00
9696659
NEW
Protective chamfers: <0.25 mm x 45°
Parallelism error: <1 arcmin
S2: uncoated
S1: HRsp>99.5% @ 532 + 1064 nm, AOI = 45°
S1/S2 Surface quality, S-D: 20-10
Clear Aperture: >90
Material: UVFS
Dimensions, mm: Ø30 (+0/-0.1) x 6 (±0.1)
Coatings: e-beam
S1 Flatness, PV: <λ/8 @ 632.8 nm
1
€50.00
9696679
NEW
Protective chamfers: <0.25 mm x 45°
S2: uncoated
S1: HRsp>99.5% @ 532 nm, AOI = 45°
S1 Flatness, PV: <λ/8 @ 632.8 nm
Parallelism error: <1 arcmin
Material: UVFS
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Coatings: e-beam
Clear Aperture: >90
S1/S2 Surface quality, S-D: 20-10
1
€50.00
9698749
NEW
Material: UVFS
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 5 (±0.1)
Surface quality, S-D: 20-10
S2: uncoated
Protective chamfers: 0.1-0.3 mm x 45°
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 @ 632.8 nm
Dimensions, mm: 25 x 10 (+0/-0.1)
Clear aperture: >90%
Angle of Incidence (AOI), °: 0
S1: HR(R>99.5%)@940nm + 1030nm
1
€50.00
9700700
NEW
Material: UVFS
Reflection Rs/ Rp/ Ravg, %: 99.7 /99.3 /99.5
Wavelength, nm: 1530-1590
Surface quality, S-D: 20-10
Substrate dimensions, mm: 20 x 40
90° angle tolerance: ±30 arcsec
GDD, fs²: <20
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Angle of Incidence (AOI), °: 45
Pyramidal tolerance: <1 arcmin
Protective chamfers: <0.25 mm x 45°
4
€50.00
9701880
NEW
Parallelism error: <1 arcmin
S2: uncoated
S1/S2 Surface quality, S-D: 20-10
S1(^): HR(Rs>99.5%, Rp>99.0%) @ 343 nm, AOI=45 deg
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Coatings: e-beam
Clear Aperture: >90
S1 Flatness, PV: <λ/8 @ 632.8 nm
2
€50.00
9701890
NEW
Parallelism error: <1 arcmin
Protective chamfers: <0.25 mm x 45°
S2: uncoated
S1/S2 Surface quality, S-D: 20-10
S1(^): HR(Rsp>99.5%) @ 532 nm, AOI=45 deg
Clear Aperture: >90
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Coatings: e-beam
S1 Flatness, PV: <λ/8 @ 632.8 nm
2
€50.00
9701910
NEW
Material: UVFS
S2: uncoated
S1/S2 Surface quality, S-D: 20-10
S1(^): HR(Rsp>99.5%) @ 1030 nm, AOI=45 deg
S1 Flatness, PV: <λ/8 @ 632.8 nm
Parallelism error: <1 arcmin
Dimensions, mm: Ø12.7 (+0/-0.1) x 5 (±0.1)
Coatings: e-beam
Clear Aperture: >90
Protective chamfers: <0.25 mm x 45°
2
€50.00
9701980
NEW
LIDT: >10 J/cm^2, 1064 nm, 10 ns
Thickness, mm: 10 mm (+/-0.1 mm)
Surface quality: 20-10 S-D
S1 Flatness, PV IR S2 Flatness, PV: Pyramidal error: +/-1 arcmin
Material: UVFS
HR Mirrors substrates:
Dimensions, mm: 20 mm x 58 mm (+0/-0.2 mm)
Coatings per surface: HR(Rs>99.7%, Rp>99.3%, GDDrsp<30 fs^2)@ 1030 +/-2.5 nm, AOI=45 deg
Clear aperture: 100%
Chips: <0.2 mm
90 deg angle tolerance: +/-30 arcsec
Protective chamfers: 0.1-0.3 mm x 45 deg excep on S1 along one 58 mm side
3
€50.00
9702000
NEW
Coatings per surface: HR(Rs>99.7%, Rp>99.3%, GDDrsp<30 fs^2)@ 1030 +/-2.5 nm, AOI=45 deg
Material: UVFS
Surface quality: 20-10 S-D
S1 Flatness, PV IR S2 Flatness, PV: Pyramidal error: +/-1 arcmin
Protective chamfers: 0.1-0.3 mm x 45 deg
Thickness, mm: 10 mm (+/-0.1 mm)
Dimensions, mm: 30 mm x 58 mm (+0/-0.2 mm)
Clear aperture: 100%
Chips: <0.2 mm
90 deg angle tolerance: +/-30 arcsec
LIDT: >10 J/cm^2, 1064 nm, 10 ns
HR Mirrors substrates:
2
€50.00
9702090
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8nm
Wedge / Parallelism error: <1 arcmin
Surface quality, S-D: 20-10
S2: uncoated
S1: BBHR (R>99%) @ 700-900nm, AOI = 45 deg. S pol.
Material: BK7
Dimensions, mm: Ø30 (+0/-0.1) x 6 (±0.1)
coating:
Clear Aperture: >90
Protective chamfers: <0.25 mm x 45°
5
€50.00
9703120
NEW
Material: UVFS
Thickness, mm: 5.0 mm (+/-0.1 mm)
S2 Surface quality, S-D: commercially polished
S1 Surface quality, S-D: 10/5 S/D (After coating 20/10 S/D)
S1 Flatness, PV: <λ/10@633 nm (After coating <λ/8@633 nm)
S2: uncoated
S1: HR(R>99.8%)@515 nm, (R>99.7%)@500 nm - 530 nm, AOI=0°
Parallelism error: <5 arcmin
Engraving: TO-M5I0D45
Diameter, mm: 20.0 mm (+0.0/-0.1 mm)
Coatings: e-Beam, HfO₂ + SiO₂, High LIDT
Clear aperture: >90%
Protective chamfers: <0.25 mm x 45°
5
€50.00
9703610
NEW
Protective chamfers: <0.25 mm x 45°
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 1000-1060
Surface quality, S-D: 20-10
Reflectivity (average), %: >99.5
Material: UVFS
GDD, fs²: s-pol: ±10; p-pol: ±20
Dimensions, mm: Ø25.4 (+0/-0.1) x 6.35 (±0.1)
Clear Aperture: >90%
AOI, °: 45
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
5
€50.00
9703940
NEW
Bezeichnung: 514 und 532nm Umlenkspiegel 1",model=
 19
€50.00
9707680
NEW
Material: UVFS
Surface Quality: 20-10
S1 Flatness, PV IR S2 Flatness, PV: λ/8 @ 633 nm per Ø30 mm
S2: uncoated
S1: HR (Rs>99.8; Rp>99.6) @ 1020-1080 nm, AOI: 45°
Parallelism error: <1 arcmin
LIDT: >10 J/cm², 10 ns, 10 Hz, 1064 nm
Dimensions, mm: Ø38.1(+0/-0.1) x 10 (±0.1)
Coatings:
Clear aperture: >95%
Protective chamfers: 0.1-0.25 mm x 45°
33
€50.00
9708070
NEW
S1/S2 Flatness, PV: <λ/10 @ 632.8 nm
Thickness tolerance, mm: ±0.1
S2: Uncoated
Thickness, mm: 1.5
S1/S2 Surface quality, S-D: 10-5
Material: YAG
LIDT: >15J/cm2 10ns 1064nm
Dimensions, mm: 6x6
Dimensions tolerance, mm: +0/‐0.1
Clear aperture: 5 x 5
S1: HR(R>99.8) @ 1064nm, 0degrees AOI + HT @ 780-830nm, <30 degrees AOI
Parallelism error: <10 arcsec
1
€50.00
9708580
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm over inch diamter at any point in clear aperture
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 1030-1064
Surface quality, S-D: 20-10
Reflectivity, %: Rs>99.98, Rp>99.93
Material: UVFS
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 ( ±0.1)
Clear Aperture: >90
Angle of Incidence (AOI), °: 45°
Protective chamfers: 0.1-0.3 mm x 45°
1
€50.00
9710501
NEW
Part Drawing: 13483_Rev.00
Part Name: MP-50x22-FS-HR1020-1045-45
Part Number: 13483
Remarks:
S1 Flatness, PV IR S2 Flatness, PV:
9
€50.00
9710991
NEW
Remarks:
Part Drawing: 13484_Rev00
S1 Flatness, PV IR S2 Flatness, PV: Part Name: MP-90x22-FS-HR1020-1045-15
Part Number: 13484
9
€50.00
9711311
NEW
S1: HR(Rs/Rp/Ravg > 99.7/99.3/99.5%)@ 1020 – 1090nm, AOI=0°, GDD <20 fs²
Thickness, mm: 5
S2, S-D: inspection polish 100-80
S2: uncoated
Wedge / Parallelism error: <10 arcsec
Material: UVFS 7980 0F
Flatness, PV S1: λ-2λ @ 632.8nm
Dimensions, mm: 60 x 12
Coating:
Clear Aperture: >90
Protective chamfers: 0.1-0.25 mm x 45°
Surface quality, S-D S1: 20 – 10
2
€50.00
9711631
NEW
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 ( ±0.1)
Wedge / Parallelism error: <1 arcmin
Surface quality, S-D: 20-10
S2: Stress compensating SiO2 layer
S1: HRu>99.9%@ 515-532 nm + 1030-1064 nm, AOI=45 deg, low phase shift optimized
Protective chamfers: 0.1-0.3 mm x 45°
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Clear Aperture: >90
Material: UVFS
1
€139.00
9712051
NEW
S2 and S3 sides polished: 80-50 S-D
Remarks:
Part Drawing: 13485_Rev00
Part Name: MP-P90-60x14.15-FS-1040-45
S1 Flatness, PV IR S2 Flatness, PV: Part Number: 13485
10
€50.00
9713251
NEW
S1: HRsp>99.5%@ 1030nm, AOI=45°
Thickness, mm: 6 (+/-0.1 mm)
Surface quality: 20-10 S-D
S2: uncoated
Parallelism error: <30 arcsec
Material: UVFS
Diameter, mm: 50.8 (+0/-0.1 mm)
Coatings:
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 633nm
1
€50.00
9714091
NEW
AOI, °: 45
Reflectivity (average), %: >99.5
Wavelength, nm: 1000-1060
Wedge / Parallelism error: <1 arcmin
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
Material: UVFS
GDD, fs²: s-pol: ±10; p-pol: ±20
Clear Aperture: >90%
Dimensions, mm: Ø19 (+0/-0.1) x 5 (±0.1)
1
€50.00
9716341
NEW
Protective chamfers: 0.1-0.3 mm x 45°
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Wedge / Parallelism error: <1 arcmin
Surface quality, S-D: 20-10
S2: uncoated, commercial polish
S1: HR (Ravg>98.5%) @ 257 nm
LIDT: for 2.5 W, 300 fs, 175 kHz laser
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings:
Angle of Incidence (AOI), °: 45
Coating technology: Ion Beam Sputtering
Thickness, mm: 6.35 (±0.1)
Clear Aperture: >90
Material: UVFS
4
€230.00
9717221
NEW
Coating: CW ekperimentams
Protective chamfers: <0.25 mm x 45°
Wedge / Parallelism error: <5 arcsec
Surface quality, S-D: 20-10
Clear Aperture: >90
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
S1 Flatness, PV IR S2 Flatness, PV: Material: UVFS Corning 7980 OF grade
9
€50.00
9718361
NEW
Bezeichnung: 514 und 532nm Umlenkspiegel 1",model=
 2
€50.00
9718491
NEW
GDD, fs²: s-pol: ±10; p-pol: ±20
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 790-810
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity (average), %: >99.5
Material: UVFS
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90%
AOI, °: 0
Protective chamfers: <0.25 mm x 45°
1
€50.00
9721772
NEW
Protective chamfer (S1,S2): <0.25 mm x 45
Index Homogeneity: Grade C-E
Wedge, arcmin: < 3
Configuration: Corning 7979 (IR Grade fused silica)
Transmitted wavefront distortion, PV: λ/5 @ 632.8nm
Thickness, mm: 1 (± 0.05)
Surface quality (S1,S2), S-D: 10 – 5 (superpolished) before coating, 20-10 MIL after coating
S2: uncoated
S1: HR (R > 99.9 %) @ 343 + 355 nm, AOI 45° IBS
OH Content: <1 ppm
Chips, mm: < 0.1
Material: UVFS
Metallic Imp: <100 ppb
Inclusion: Class 0
Diameter, mm: Ø 11.5 (± 0.05)
Coatings:
Clear Aperture: > 90 %
Polishing compound: no metallic particles
1
€50.00
9724322
NEW
Lot NO#: SO190004-1
Material: UVFS
Needed measurements: Absorption @ 355 nm (or @ 343 nm, if possible), AOI 0°
Dimensions, mm: 25.4 x 5 mm
Coating (arrow indicated): HR (R>99.9%) @ 343 nm, AOI 0° IBS
DO Part#: 1021000458
1
€50.00
9725852
NEW
LIDT: >20 J/cm², 10 ns, 10 Hz, 532 nm
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Reflectivity, %: Rs>99.97, Rp>99.93
Wavelength, nm: 515-532
Protective chamfers: <0.25 mm x 45°
Dimensions, mm: Ø30 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >Ø27.8
Angle of Incidence (AOI), °: 45
Parallelism error: <1 arcmin
Material: UVFS
4
€50.00
9726622
NEW
S1 Flatness, PV: <λ/8 @633 nm per CA
Protective chamfers: <0.25 mm x 45°
Thickness, mm: 5.0 mm (±0.1 mm)
S2 Surface quality, S-D: Commercially polished
S1 Surface quality, S-D: 20/10 S/D
Clear aperture: >90%
Parallelism error: <3 arcmin
Material: UVFS (Corning 7980 0F)
Coatings:
S2: stress compensating coating
S1: HR(Rs>99.9%, Rp>99.7%)@355 nm, AOI= 65°
20
€50.00
9729762
NEW
Material: UVFS (Corning 7980 0F)
Thickness, mm: 6 (±0.1)
S2: uncoated
S1/S2 Surface quality, S-D: 20-10
S1/S2 Surface flatness: <λ/10 @ 633 nm
S1(^): HR (Rsp>95%) @282-312 nm + HR (Rsp>98.5%) @ 532 nm, AOI=45°
Parallelism error: <5 arcsec
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings:
Clear Aperture: >90
Protective chamfers: 0.1-0.2 mm x 45°
1
€50.00
9730723
NEW
Material: UVFS
Surface quality: 40-20 S-D after coating
S1 Flatness, PV IR S2 Flatness, PV: λ/2 @ 632.8 nm before coating
S1 Flatness, PV IR S2 Flatness, PV: <6λ @ 632.8 nm after coating
S1: HR(R>98%)@430-700nm, HR(R>93%)@820-880nm, AOI=40-50°
Thickness, mm: 1.05±0.05 mm
Dimensions, mm: 23 x 16.5 mm
Coatings:
S2: Stress compensation coating
1
€50.00
9730743
NEW
Parallelism error: <20 arcsec
S1: HR(^): HR (Ravg>99.5%) @ 313 nm, AOI = 45°
S2: uncoated
Protective chamfers: 0.1-0.3 mm x 45°
Material: UVFS C7980 0F
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm in CA 8 x 18mm
Coatings:
Surface quality, S-D: 20-10
Dimensions, mm: 10 x 20 (+0/-0.1) x 5 (±0.1)
3
€50.00
9731113
NEW
Reflectivity (average), %: >99
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 950-1100
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm: Ø50.8 (+0/-0.1) x 6 (±0.1)
Clear Aperture: >90%
AOI, °: 45
Surface quality, S-D: 20-10
2
€50.00
9731753
NEW
Dimensions, mm: Ø12.7 (+0/-0.1)
Thickness, mm: 6 (±0.1)
Surface quality, S-D: 20-10
S1: HR(Rs>99.6%, Rp>99.0%,)@ 1020 - 1040 nm, AOI = 45°
Protective chamfers: <0.1-0.25 mm x 45°
Parallelism error: <1 arcmin
S1 Flatness, PV IR S2 Flatness, PV: <λ/10 @ 632.8 nm
Coatings:
Clear aperture: >90%
Material: UVFS
1
€50.00
9732273
NEW
Material: UVFS
Clear aperture: 90%
S2: uncoated
Surface quality, S-D: 20-10
S1: HRs > 99.9% @ 730-840 nm + GDD, Rs= < 20fs², AOI=45°
S1 Flatness, PV IR S2 Flatness, PV: < λ/8 @ 632.8 nm
Coatings:
Dimensions, mm: Ø38.1 (+0/-0.1) x 9.5 (±0.1)
LIDT: > 10J/cm2 10ns 10Hz @ 1064 nm
1
€50.00
9732463
NEW
Dimensions, mm: 23 x 16.5 mm
Thickness, mm: 1.05±0.05 mm
Surface quality: 40-20 S-D after coating
S1 Flatness, PV IR S2 Flatness, PV: λ/2 @ 632.8 nm before coating
S1 Flatness, PV IR S2 Flatness, PV: <6λ @ 632.8 nm after coating
S2: Stress compensation coating
Material: UVFS
Coatings:
S1: HR(R>98%)@430-700nm, HR(R>93%)@820-880nm, AOI=40-50°
1
€50.00
9733703
NEW
LIDT: >1 J/cm² @ 266 nm 10 ns
S2: Uncoated
S2 Surface quality, S-D: 20-10
S2 Flatness, PV: <λ/10 @ 632.8 nm
S1 Surface quality, S-D: 20-10
S1: HR (R>99%) @ 257nm. AOI: 45 deg
Thickness, mm: 5 (+/-0.1)
Protective chamfers: <0.25 mm x 45°
Material: UVFS (Corning 7980 0F)
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings:
Clear aperture %: >90
Parallelism error, arcsec: <5
S1 Flatness, PV: <λ/10 @ 632.8 nm
1
€50.00
9733773
NEW
Protective chamfers: 0.1-0.3 mm x 45°
S1: LLHR (Rsp>99.90%) @ 1030 nm; AOI 45 deg
Wedge, S2, °: 1 (+/-0.1)
Thickness (thin side), mm: 8 (+/-0.25)
S2: Uncoated
S2 Surface quality, S-D: Commercially polished
S1 Flatness, PV: <λ/8 @ 1030 nm
Clear aperture %: >90
Material: ULE
Dimensions, mm: Ø25.4 (+0/-0.25)
Coatings:
S1 Surface quality, S-D: 20-10
1
€50.00
9733783
NEW
S1 Flatness, PV: <λ/8 @ 1030 nm
Thickness (thin side), mm: 8 (+/-0.25)
S2: Uncoated
S2 Surface quality, S-D: Commercially polished
S1 Surface quality, S-D: 20-10
Wedge, S2, °: 1 (+/-0.1)
Protective chamfers: 0.1-0.3 mm x 45°
Material: UVFS
Dimensions, mm: Ø25.4 (+0/-0.25)
Coatings:
Clear aperture %: >90
S1: LLHR (Rsp>99.90%) @ 1030 nm; AOI 45 deg
2
€50.00
9733803
NEW
ROC S1, mm: +3000 (+/-5%)
S2: Uncoated
S2 Surface quality, S-D: Commercially polished
S1: LLHR (R>99.90%) @ 1030 nm; AOI 0 deg
S1 Surface quality, S-D: 20-10
S1 Irregularity, PV: <λ/8 @ 1030 nm
Protective chamfers: 0.1-0.3 mm x 45°
Material: UVFS
Edge thickness, mm: 8 (+/-0.25)
Dimensions, mm: Ø25.4 (+0/-0.25)
Clear aperture %: >90
Coatings:
1
€50.00
9733813
NEW
S1 Surface quality, S-D: 20-10
Thickness (thin side), mm: 12 (+/-0.25)
Wedge, S2, °: 1 (+/-0.1)
S2: Uncoated
S2 Surface quality, S-D: Commercially polished
S1: LLHR (Rsp>99.90%) @ 1030 nm; AOI 45 deg
Protective chamfers: 0.1-0.3 mm x 45°
Material: UVFS
Dimensions, mm: Ø50.8 (+0/-0.25)
Clear aperture %: >90
Coatings:
S1 Flatness, PV: <λ/8 @ 1030 nm
1
€50.00
9733843
NEW
Protective chamfers: 0.1-0.3 mm x 45°
S2: Uncoated
S2 Surface quality, S-D: Commercially polished
S1: LLHR (R>99.90%) @ 1030 nm; AOI 0 deg
S1 Surface quality, S-D: 20-10
Clear aperture %: >90
ROC S1, mm: -6000 (+/-10%)
Material: UVFS
Edge thickness, mm: 12 (+/-0.25)
Dimensions, mm: Ø50.8 (+0/-0.25)
Coatings:
S1 Irregularity, PV: <λ/8 @ 1030 nm
1
€50.00
9733853
NEW
Material: UVFS
S2 Surface quality, S-D: Commercially polished
S1: LLHR (R>99.90%) @ 1030 nm; AOI 0 deg
S1 Surface quality, S-D: 20-10
S1 Irregularity, PV: <λ/8 @ 1030 nm
S2: Uncoated
Edge thickness, mm: 12 (+/-0.25)
Dimensions, mm: Ø50.8 (+0/-0.25)
Coatings:
Clear aperture %: >90
Protective chamfers: 0.1-0.3 mm x 45°
ROC S1, mm: +5000 (+/-5%)
1
€50.00
9733863
NEW
Material: UVFS
S2: Uncoated
S2 Surface quality, S-D: Commercially polished
S1: LLHR (R>99.90%) @ 1030 nm; AOI 0 deg
S1 Surface quality, S-D: 20-10
S1 Irregularity, PV: <λ/8 @ 1030 nm
Protective chamfers: 0.1-0.3 mm x 45°
Edge thickness, mm: 12 (+/-0.25)
Dimensions, mm: Ø50.8 (+0/-0.25)
Coatings:
Clear aperture %: >90
ROC S1, mm: +3000 (+/-5%)
1
€50.00
9733883
NEW
S1 Surface quality, S-D: 20-10
S2 Surface quality, S-D: Commercially polished
Wedge, S1, °: 1 (+/-0.1)
S2: Uncoated
S1: LLHR (Rsp>99.90%) @ 1030 nm; AOI 45 deg
Protective chamfers: 0.1-0.3 mm x 45°
Material: UVFS
Clear aperture %: >90
Dimensions, mm: Ø76.2 (+0/-0.25)
Thickness (thin side), mm: 20 (+/-0.5)
Coatings:
S1 Flatness, PV: <λ/6 @ 1030 nm
1
€50.00
9733893
NEW
Protective chamfers: 0.1-0.3 mm x 45°
Wedge, S1, °: 1 (+/-0.1)
Thickness (thin side), mm: 20 (+/-0.5)
S2: Uncoated
S2 Surface quality, S-D: Commercially polished
S1: LLHR (R>99.90%) @ 1030 nm; AOI 0 deg
S1 Flatness, PV: <λ/6 @ 1030 nm
Material: UVFS
Dimensions, mm: Ø76.2 (+0/-0.25)
Coatings:
Clear aperture %: >90
S1 Surface quality, S-D: 20-10
1
€50.00
9777887
NEW
Edge thickness, mm: 5 (+/-0.1mm)
Surface quality: 20-10 S-D
S2: AR(R<0.25%)@740-760nm, AOI=0deg
S1: HR(R>99.7%)@740-760nm, AOI=0deg
S1 Flatness, PV IR S2 Flatness, PV: L/4 @ 633nm per CA
Diameter, mm: 12.7 (+0/-0.1mm)
Coatings:
Clear aperture: >90%
Chamfer: 0.2 - 0.4 mm @ 45°
Centration error: <3 arcmin
Material: UVFS (Corning 7980 0F)
1
€50.00
9778167
NEW
Centration error: <3 arcmin
S1: HR (R>99,5%) @ 547-553 + 629-637 + 772-810 + 1054-1074 + 1525-1565 nm, AOI 0-4° IBS
Thickness, mm: 10 (±0.1)
Surface quality, S-D: 40-20
Surface accuracy, PV: <λ/2 @ 632.8nm per 1 inch
S2: Uncoated
ROC S1, mm: 9 952 (+/- 10)
Protective chamfers: <0.25 mm x 45°Coatings:
Material: C7980
Dimensions, mm: Ø50.8 (+0.0/-0.1)
Clear Aperture: >90
Coatings:
1
€50.00
9778507
NEW
S2: -
Wedge / Parallelism error: <1arcmin
Clear Aperture: >90
Thickness, mm: 5 (+/-0.1)
Surface quality S2, S-D: grinded
Surface quality S1, S-D: 20-20
Protective chamfers: 0.1-0.25 mm x 45°
Material: UVFS
LIDT: >10 J/cm2 @ 1064 nm, 10 ns, 10Hz
Coatings:
Dimensions, mm: 36 (+/-0.3) x 10 (+/-0.1)
S1: HR (R>99.5%) @ 532 + 1064 nm
2
€50.00
9779507
NEW
Parallelism error: <1 arcmin
Chips (D-cut side): <0.05 mm
Thickness, mm: 3 (±0.1)
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
S2: uncoated
Protective chamfers (round side): <0.25 mm x 45°
Width, mm: 12.2 (+0.0/-0.2)
Material: UVFS
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings:
Clear aperture: > 15 x 10 mm
S1: HRsp>98.5% @ 280-313 nm, AOI = 0-45°
4
€50.00
9780088
NEW
S1: HR (Rs>99.0%, Rp>99.0%) @ 630-900 nm, AOI 45°
Thickness, mm: 6 (±0.1)
S2: uncoated
Coatings:
S2 Surface quality: commercially polished
S2 Surface flatness, PV: no requirement
S1 Surface flatness, PV: <λ/6 @ 632.8 nm per CA
Protective chamfers: 0.1-0.25 mm x 45°
Parallelism error: <3 arcmin
Dimensions, mm: Ø12.7 (+0/-0.1)
Clear Aperture: >85
Material: UVFS
S1 Surface quality, S-D: 20-20
5
€50.00
9734033
NEW
Material: BK7
Protective chamfers: <0.25 mm x 45°
Wedge / Parallelism error: <3 arcmin
Wavelength, nm: 352-355
Reflectivity, %: >99.5
Angle of Incidence (AOI), °: 45 (±3)
S1 Flatness, PV IR S2 Flatness, PV: <λ/10 @ 632.8 nm before coating
Dimensions, mm: ∅25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Surface quality, S-D: 10-5
LIDT: 5J/cm2, 10 ns, 20 Hz, 355 nm
1
€50.00
9734833
NEW
Damage threshold: > 7 J/cm2 @ 10 ns, 10 Hz, 1064 nm
Surface figure (S1), PV: λ/4 @ 633 nm
S2: commercial polishing
Required documents: Reflectivity curve
Dimentions, mm: Ø38.1(+0.0/-0.1) x 6 (±0.1)
Surface quality, S-D: 20-10
Clear aperture: > 90 %
Adhesion and durability: Per MIL-C-675C
Material: BK7
1
€50.00
9735153
NEW
Reflectivity, %: >99.8
Wavelength, nm: 355
Surface quality S2, S-D: Commercial polish
Angle of Incidence (AOI), °: 45
Surface quality S1, S-D: 10-5 MIL
S1 Flatness, PV IR S2 Flatness, PV: <λ/10 @ 632.8 nm before coating
Material: UVFS Corning 7980
LIDT: 15 J/cm2, 20ns, 20Hz at 355nm
Clear Aperture: >85
Protective chamfers: 0.35 mm x 45°
Dimensions, mm: ∅12.7 (+0/-0.25) x 6.35 (±0.25)
1
€50.00
9736263
NEW
S2 Surface quality, S-D: 10-5
S2: Uncoated
S1: HR(R>99.5%)@266 I=30, Low GDD
S1,S2 Surface flatness, PV: <λ/10 @ 632.8nm (before coating)
S1 Surface quality, S-D: 10-5 (before), 20-10 (after coating)
S1 Surface flatness, PV: <λ/8 @ 632.8nm (after coating)
Parallelism error/Wedge: <1 arcmin
Material: UVFS (Corning 7980 0F)
LIDT: >1 J/cm2, 10hz, 10ns @266
Dimensions, mm: Ø50.8 (+0/-0.1)
Clear aperture %: >90
Coatings:
Protective chamfers: <0.25 mm x 45˚
Thickness, mm: 10 (±0.1)
1
€50.00
9736853
NEW
Parallelism error: <1 arcmin
S2: uncoated
Surface quality, S-D: 20-10
S1: HR(Ravg>99.5%)@ 500-530 + 1000-1060 nm, AOI = 45°
Protective chamfers: <0.1-0.25 mm x 45°
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 @ 632.8 nm
Dimensions, mm: Ø25.4 (+0/-0.1)
Clear aperture: >90%
Coatings:
Thickness, mm: 5 (±0.1)
Material: UVFS
2
€50.00
9738043
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/10 (before coating), λ/2 (after coating)
Thickness, mm: 3 (±0.1)
Surface quality, S-D: 20-10 (before coating), 20-20 (after coating)
S2: Uncoated
S1: HR>99.8% @2075-2105 nm AOI=40-48
LIDT: >15J/cm2 @2090 nm 10 ns 100 Hz
Dimensions, mm: 12.7 (±0.1)
Coatings:
Material: Infrasil 301
Revised PN: AR19-P2132511-103
4
€50.00
9739813
NEW
Material/Equipment: 600002683
Wedge / Parallelism error: <1 arcmin
Surface quality, S-D: 20-10
S2: Stress compensating SiO2 layer
S1: HRsp>99.5%@ 515 nm + 1030 nm, AOI=45 deg, phase shift <10 deg
Material: UVFS
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 ( ±0.1)
Clear Aperture: >90
Protective chamfers: 0.1-0.3 mm x 45°
16
€50.00
9742074
NEW
Parallelism error: <3 arcmin
Thickness, mm: 6.0 mm (+0.0/-0.1 mm)
S1 Surface quality, S-D: commercially polished
S1 Surface quality, S-D: 20/10 S/D
S1 Flatness, PV: <λ/10@633 nm per CA (after coating <λ/8@633 nm)
S2: uncoated
Protective chamfers: <0.25 mm x 45°
Material: UVFS (JGS1)
Dimensions (elliptical, major/minor axis): 35.9 x 25.4 mm (+0.0/-0.1)
Coatings: e-Beam, Higl LIDT, suitable for fs applications
Clear aperture: >90%
S1: HR(Rs>99.7%, Rp>99.5%)@1030 nm, AOI= 45°
1
€50.00
9742084
NEW
S1: HR(Rs>99.5%, Rp>99.0%)@343 nm, AOI= 45°
S2: uncoated
Thickness, mm: 6.0 mm (+0.0/-0.1 mm)
S1 Surface quality, S-D: commercially polished
S1 Flatness, PV: <λ/10@633 nm per CA (after coating <λ/10@633 nm)
Parallelism error: <3 arcmin
Clear aperture: >90%
Material: UVFS (JGS1)
Protective chamfers: <0.25 mm x 45°
Dimensions (elliptical, major/minor axis): 35.9 x 25.4 mm (+0.0/-0.1)
Coatings: e-Beam, Higl LIDT, suitable for fs applications
S1 Surface quality, S-D: 20/10 S/D
3
€50.00
9742384
NEW
Material: UVFS
Wedge / Parallelism error: <1arcmin
Surface quality, S-D: 20-10
S2: uncoated
Protective chamfers: 0.1-0.25 mm x 45°
Dimensions, mm: 25.4x60 (+0/-0.1) x 12.5 (±0.1)
Damage threshold:  >10J/cm2 10ns 10 Hz @ 1064 nm
Coatings:
Clear Aperture: >90
S1: HR(Rsp>99%)@1064 nm
2
€50.00
9742534
NEW
Protective chamfers: <0.1-0.25 mm x 45°
Clear aperture: >90%
Surface quality, S-D: 20-20
S2: uncoated
Thickness, mm: 6 (±0.1)
S1: HR(Rp>99.0%) @ 600-900 nm (-100 fs2Material: UVFS
LIDT: 1 J/cm2 10 ns 10 Hz @ 600 nm
Coatings:
Before Flatness, PV: <λ/3 @ 632.8 nm
Parallelism error: <1 arcmin
Dimensions, mm: Ø25.4 (+0/-0.1)
1
€50.00
9743194
NEW
Material: Corning 7980 0F
Thickness, mm: 6 (±0.1)
Surface quality, S-D: 20-20
S2: uncoated
S1: HRavg>98% @ 1550+915+660 nm, AOI = 45°
S1 Flatness, PV: <λ/8 @ 632.8 nm per Ø1 inch
Parallelism error: <10 arcsec
Dimensions, mm: Ø50.8 (+0/-0.1)
Coatings: MS
Clear aperture %: >90
Protective chamfers: <0.25 mm x 45°
1
€50.00
9744974
NEW
Parallelism error: <1 arcmin
Thickness, mm: 5 (±0.1)
Surface quality, S-D: 20-10
S2: uncoated
Protective chamfers: <0.1-0.25 mm x 45°
Material: UVFS
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings:
Clear aperture: >90%
S1: HR(R>99.4%) @ 323 nm, AOI = 45°
1
€50.00
9746074
NEW
Material: UVFS
S2: uncoated
S1: HR (Rs>99%, Rp>98%) @ 266nm
Surface quality, S-D: 20-10
Parallelism error: <1 arcmin
Dimensions, mm: 30 x 15 (+0/-0.1) x 5 (±0.1)
Coatings:
Clear Aperture: >90
Protective chamfers: <0.25 mm x 45°
LIDT: 1 J/cm2, 10hz 10 ns @266nm
1
€50.00
9748484
NEW
Parallelism error: <1 arcmin
S2: uncoated
S1: HR(R>95%)@ 760-840 + 380-420 + 250-280 nm
S1 Surface quality, S-D: 40-20
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions, mm:   Ø25.4 (+0/-0.1) x 5 (±0.1)
Coatings:
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
S1 Flatness, PV:   <λ/6 @ 632.8 nm
3
€50.00
9749794
NEW
Material: N-BK7
Thickness, mm: 6 (+/-0.1)
Surface quality S1/S2, S-D: 20-10
Surface flatness S1/S2, PV: <λ/10 @ 632.8 nm
S2: AR(R<0.3%) @ 1064 + 1320 nm, AOI = 0°
S1: PR(R=40±3%) @ 1064 nm + PR(R=76±3%) @ 1320 nm, AOI = 0°
Parallelism error: < 30 arcsec
Diameter, mm: Ø25 (+0/-0.1)
Coatings:
Clear Aperture: >90% (Central area)
Protective chamfers: <0.2 mm x 45°
5
€50.00
9750565
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Wavelength, nm: 515
Surface quality, S-D: 20-10
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Angle of Incidence (AOI), °: 45
GDD, fs²: s-pol: ±10 fs²; p-pol: ±30 fs²
1
€50.00
9751935
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Angle of Incidence, °: 0-10
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 790-810
Surface quality, S-D: 20-10
Reflectivity, %: >99.8
Material: UVFS
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Average GDD, fs²: -400
Protective chamfers: <0.25 mm x 45°
1
€50.00
9752345
NEW
Protective chamfers: <0.25 mm x 45°
Thickness, mm: 5 (±0.1)
S2: uncoated
S1: HR (Ravg>99.5%) @ 355 nm
S1 Flatness, PV: <λ/8 @ 632.8 nm
Parallelism error: <3 arcmin
Material: UVFS
Dimensions, mm: Ø30.0 (+0/-0.1)
Coatings:
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
S1 Surface quality, S-D: 20-10
1
€50.00
9752895
NEW
Protective chamfers: <0.1-0.25 mm x 45°
Surface quality, S-D: 20-10
Thickness, mm: 5 (±0.1)
S2: uncoated
S1: HR(Ravg>99.5%)@ 730 nm, AOI = 0°
Material: UVFS
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Clear aperture: >90%
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings:
Parallelism error: <1 arcmin
1
€50.00
9754525
NEW
Material: UVFS
Wavelength, nm: 517+1035
Surface quality, S-D: 20-10
Reflectivity, %: R>99.5
Angle of Incidence (AOI), °: 45
Parallelism error: <1 arcmin
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Dimensions, mm: Ø30 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Protective chamfers: <0.25 mm x 45°
2
€50.00
9758975
NEW
Protective chamfers: 0.25 mm x 45°
Thickness, mm: 5 (±0.1)
S2: uncoated
S2 Surface quality, S-D: 20-10
S1: HR (Ravg>99%) @ 775 nm + 1550 nm; AOI 22.5 deg
S1 Flatness, PV: <λ/6 @ 632.8 nm
Parallelism error: <5 arcesc
Material: UVFS (7980 OF)
Dimensions, mm: Ø25.4 (+0/-0.1)
Clear aperture %: >90
S1 Surface quality, S-D: 20-10
1
€50.00
9760426
NEW
S2: uncoated
Material: FS
Thickness, mm: 5 mm (+/-0.1 mm)
S2 Surface quality, S-D: commercially polished
S1 Surface quality, S-D: 20-10 S-D
S1 Flatness, PV: Clear Aperture: 26 x 18
Parallelism error: <1 arcmin
Coatings:
Dimensions, mm: 30 mm x 20 mm (+0/-0.1 mm)
Protective chamfers: 0.2-0.3 mm x 45 deg
S1(^ IBS): HRsp>99.9%@ 1010-1050 nm, AOI=45 deg
1
€50.00
9761256
NEW
Remarks:
Drawing: 14242_DRAFT
Part Name: MP-P90-FS 5x5x4.75-1040-45
Part Number: 14242
1
€50.00
9761266
NEW
Drawing: 14243_DRAFT
Part Name: MP-P90-FS 5x5x15-FS-1040-45
Part Number: 14243
Remarks:
2
€50.00
9761276
NEW
Part Number: 14275
Remarks:
Part Name: MP-P90-15x8-FS-1040-45
Drawing: 14275_DRAFT
1
€50.00
9761286
NEW
Part Name: MP-P90-4.75x8-FS-1040-45
Part Number: 14276
Remarks:
Drawing: 14276_DRAFT
4
€50.00
9763856
NEW
Material: Lithotec CaF2
S2: AR (Rs<0.65%) @ 2080-2100nm, AOI=40-48°
S1: HR (Rs>99%) @ 2080-2100nm, AOI=40-48°
S1, S2 Surface quality, S-D: 40-20
Clear Aperture: >Ø 10.7mm
Parallelism error: <10 arcsec
LIDT: >15 J/cm2 @ 2090nm, 10ns, 100Hz
S1 Flatness, PV IR S2 Flatness, PV: λ/6 (before coating), λ/2-λ (after coating)
Dimensions, mm: 12.7 (±0.1)
Coatings:
Protective chamfers: <0.2mm x 45°
Thickness, mm: 3 (±0.1)
Perpendicularity: <2 arcmin
10
€50.00
9764736
NEW
Thickness, mm: 6 mm (+/-0.1 mm)
S1: HR(R>99.8%)@ 1534 nm, AOI=45 deg, IBS
S2 Surface quality, S-D: polished
Clear aperture: 90 %
S1 Surface quality, S-D: 20-10 S-D
Surface flatness S1: S2: uncoated
Parallelism error: <1 arcmin
Material: N-BK7
LIDT: >50 J/cm^2, 1540 nm, 20 ns, 100 Hz
Coatings:
Chips: <0.2 mm
Protective chamfers: 0.1-0.3 mm x 45 deg
Diameter, mm: 12.7 mm (+0/-0.1 mm)
6
€50.00
9764746
NEW
LIDT: >50 J/cm^2, 1540 nm, 20 ns, 100 Hz
S1 Surface quality, S-D: 20-10 S-D
Surface flatness S1: S2: uncoated
Material: N-BK7
Surface quality S2/S3: polished
Dimensions, mm: 10 mm x 10 mm x 10 mm (+/-0.1 mm) (before chamfers)
Coatings:
Clear aperture of hypotenuse, S1: 8.1 mm x 14.14 mm, central area
Aperture of hypotenuse, S1: 10 mm x 14.14 mm (before chamfers)
S1: HR(R>99.8%)@ 1534 nm, AOI=45 deg, IBS
2
€50.00
9764856
NEW
Reflectivity, %: Rs>99.8; Rp>99.6
Wavelength, nm: 1020-1070
S1 Surface quality, S-D: 20-10
S1 Flatness, PV: <λ/8 @ 632.8 nm
Protective chamfers: 0.1-0.25 mm x 45°
Parallelism error: <1 arcmin
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1) x 3 (±0.1)
Angle of Incidence (AOI), °: 45
Clear Aperture: >90
1
€50.00
9764956
NEW
Parallelism error: <1 arcmin
Thickness, mm: 6 mm (+/-0.1 mm)
S2 Surface quality, S-D: polished
S1 Surface quality, S-D: 20-10 S-D
Surface flatness S1: S2: uncoated
Protective chamfers: 0.1-0.3 mm x 45 deg
Material: N-BK7
LIDT: >50 J/cm^2, 1540 nm, 20 ns, 100 Hz
Diameter, mm: 25.4 mm (+0/-0.1 mm)
Coatings:
Clear aperture: 90 %
Chips: <0.2 mm
S1: HR(R>99.8%)@ 1534 nm, AOI=45 deg, IBS
1
€50.00
9765266
NEW
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Surface quality, S-D: 20-10
S2: -
S1: HR(R>98.5%)@266nm
Material: UVFS (Corning 7980 0F)
Coatings:
Clear Aperture: >90
Wedge / Parallelism error: <1arcmin
Protective chamfers: 0.1-0.25 mm x 45°
2
€50.00
9765276
NEW
S1: HR(R>98.5%)@266nm
Wedge / Parallelism error: <1arcmin
Surface quality, S-D: 20-10
S2: -
Material: UVFS
Dimensions, mm: Ø19.1 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Coatings:
Protective chamfers: 0.1-0.25 mm x 45°
1
€50.00
9765636
NEW
S2: uncoated, commercial polish
Surface quality: 60-40 S-D after coating
Thickness, mm: 5 (+/-0.1mm)
S1 Flatness, PV IR S2 Flatness, PV: <λ @ 632.8 nm after coating
Protective chamfers: <0.25 mm x 45°
Material: Corning 7972
Clear Aperture: >90%
Diameter, mm: 25.4 (+0/-0.1mm)
Coatings:
S1: MS - single layer 325 nm Ta2O5, uniformity of layer 1%, annealed after coating
2
€50.00
9766156
NEW
Thickness, mm: 3 (±0.1)
S2: HRavg>99.8% @ 1029-1080 nm + HRavg>99% @ 1100-1120 nm + HRavg>98% @ 650 nm, AOI = 44-46°
S1/S2 Surface quality: 3 x 0.25; L1 x 0.04
Perpendicularity of top to A side: <17 arcmin
S1(^): HRavg>99.8% @ 1029-1080 nm + HRavg>99% @ 1100-1120 nm + HRavg>98% @ 650 nm, AOI = 44-46°
Protective chamfers: 0.1-0.3 mm x 45°
Parallelism error: <5 arcmin
Material: N-BK7 or H-K9L
LIDT: 5 J/cm² @ 1030 nm, 10 ns, 100 Hz
Dimensions, mm: 25 x 18 (±0.1), according to drawing
Coatings: MS
Clear Aperture: 22 x 15 ellipse
Perpendicularity of bottom to A side: <12 arcmin
S1/S2 Surface form error, fr: 0.17 (0.2) @ 633 nm in reduced test area 20 x 13 ellipse
48
€50.00
9766446
NEW
Dimensions, mm: 45.0 x 45.0 mm (+0.0/-0.1 mm)
Suface quality, S1: 20/20 S/D
Substrate thickness: 8.0 mm (±0.1 mm)
S2: Compensating SiO₂ might be applied to control flatness
S1: HR(Rs,p>99.7%)@1030 nm, AOI=54.7°
Material: UVFS
Cut off on one edge: 12.0 mm (±0.1 mm) x 45°
Coatings: MS
Coated area: 100% of the surface
Clear aperture: >90%
Protective chamfers: <0.25 mm x 45°
1
€50.00
9766646
NEW
LIDT: >500 MW/cm2 or >10J/cm2, 10 ns, 10 kHz, 1064 nm
Thickness, mm: 6.5 (±0.1)
S2 Surface quality, S-D: matte (sanded)
Surface quality S1, S-D: 20-10
S2: -
S1: HR (R>99.9%) @ 1064 + 1159 + 1180 nm
Protective chamfers: <0.25 mm x 45°
Material: JGS1
S1 Flatness, PV IR S2 Flatness, PV: < λ/8 @ 632.8 nm
Dimensions, mm:   Ø12.7 (+0/-0.1)
Coatings:
Clear Aperture of S1: 100%
Parallelism error: <3 arcmin
3
€50.00
9766666
NEW
ROC tolerance: 3 fringes
S1: -
S2: HR (R>99.9%) @ 579.5 + 590 + 1064 + 1159 + 1180 nm
S1 Flatness, PV IR S2 Flatness, PV:   <λ/4 @ 632.8 nm
ROC of S1: infinity
Surface quality, S-D S2: 40-20
Protective chamfers: <0.25 mm x 45°
Surface quality, S-D S1: matte (sanded)
Centration error: <3 arcmin
Material: UVFS
LIDT: > 800 MW/cm2 or > 10J/cm2, 10 ns, 10 kHz, 1064 nm
Dimensions, mm:   Ø12.7 (+0/-0.1)
Wavelength, nm: 632.8
Coatings:
Clear Aperture: > 90%
Center thickness, mm: 6.5 (±0.1)
ROC of S2: 180 mm
1
€50.00
9766676
NEW
ROC of S1: infinity
ROC tolerance: 3 fringes
S1: -
S2: HR (R>99.9%) @ 579.5 + 590 + 1064 + 1159 + 1180 nm
S1 Flatness, PV IR S2 Flatness, PV:   <λ/4 @ 632.8 nm
Surface quality, S-D S2: 40-20
Protective chamfers: <0.25 mm x 45°
Surface quality, S-D S1: matte (sanded)
Center thickness, mm: 6.5 (±0.1)
LIDT: > 800 MW/cm2 or > 10J/cm2, 10 ns, 10 kHz, 1064 nm
Dimensions, mm:   Ø12.7 (+0/-0.1)
Wavelength, nm: 632.8
Coatings:
Clear Aperture: > 90%
Centration error: <3 arcmin
Material: UVFS
ROC of S2: 190 mm
1
€50.00
9766686
NEW
ROC of S2: 200 mm
ROC tolerance: 3 fringes
S1: -
S2: HR (R>99.9%) @ 579.5 + 590 + 1064 + 1159 + 1180 nm
S1 Flatness, PV IR S2 Flatness, PV:   <λ/4 @ 632.8 nm
Surface quality, S-D S2: 40-20
Material: UVFS
Surface quality, S-D S1: matte (sanded)
Center thickness, mm: 6.5 (±0.1)
LIDT: > 800 MW/cm2 or > 10J/cm2, 10 ns, 10 kHz, 1064 nm
Dimensions, mm:   Ø12.7 (+0/-0.1)
Wavelength, nm: 632.8
Coatings:
Clear Aperture: > 90%
Centration error: <3 arcmin
Protective chamfers: <0.25 mm x 45°
ROC of S1: infinity
1
€50.00
9766696
NEW
ROC of S2: 210 mm
ROC of S1: infinity
S1: -
S2: HR (R>99.9%) @ 579.5 + 590 + 1064 + 1159 + 1180 nm
S1 Flatness, PV IR S2 Flatness, PV:   <λ/4 @ 632.8 nm
Surface quality, S-D S2: 40-20
Surface quality, S-D S1: matte (sanded)
Center thickness, mm: 6.5 (±0.1)
ROC tolerance: 3 fringes
Centration error: <3 arcmin
Clear Aperture: > 90%
Coatings:
Wavelength, nm: 632.8
Dimensions, mm:   Ø12.7 (+0/-0.1)
LIDT: > 800 MW/cm2 or > 10J/cm2, 10 ns, 10 kHz, 1064 nm
Material: UVFS
Protective chamfers: <0.25 mm x 45°
1
€50.00
9768336
NEW
S1/S2 Surface flatness: <λ/10 @ 633 nm before coating
Thickness, mm: 12.7 (±0.1)
S2: AR (Ravg<3%) @ 450-820 nm + AR (Ravg<1.5%) @ 1070 nm, AOI = 45° + stress compensating layer
Coatings: MS + annealing
S1/S2 Surface quality, S-D: 40-20
S1/S2 Surface flatness: <λ/8-λ/7 @ 633 nm after coating
S1(^): HR (Ravg>85%) @ 450-820 nm + HR (Ravg>99.9%) @ 1070 nm, AOI = 45°
Protective chamfers: 0.1-0.3 mm x 45°
Parallelism error: <5°
Dimensions, mm: Ø76.2 (+0/-0.1)
Clear Aperture: >95
Material: ULE (Corning 7972)
1
€50.00
9768346
NEW
S2: AR (Ravg<3%) @ 450-820 nm + AR (Ravg<1.5%) @ 1070 nm, AOI = 45° + stress compensating layer
S1/S2 Surface flatness: <λ/10 @ 633 nm before coating
Thickness, mm: 8 (±0.1)
S1/S2 Surface quality, S-D: 40-20
S1/S2 Surface flatness: <λ/8-λ/7 @ 633 nm after coating
Protective chamfers: 0.1-0.3 mm x 45°
Parallelism error: <5°
Material: ULE (Corning 7972)
Clear Aperture: >95
Dimensions, mm: Ø50.0 (+0/-0.1)
Coatings: MS + annealing
S1(^): HR (Ravg>85%) @ 450-820 nm + HR (Ravg>99.9%) @ 1070 nm, AOI = 45°
1
€50.00
9768636
NEW
S2: Uncoated
Parallelism error: <30 arcsec
Thickness, mm: 6 (+/-0.1 mm)
Surface quality: 20-10 S-D
S1 Flatness, PV IR S2 Flatness, PV: <λ/10 @ 633 nm per CA
Protective chamfers: 0.1-0.3 mm x 45 deg
Clear aperture: >90 %
Material: UVFS Corning 7980
Diameter, mm: 25.4 (+0/-0.1mm)
Coatings:
S1: HR (Rs>99.9%; Rp>99.7) @ 343 nm, AOI=45°
1
€80.00
9768856
NEW
S1 Surface quality, S-D: 20/20 S/D
Thickness, mm: 5.0 mm (±0.1 mm)
S1 Flatness, PV: S2: stress compensation coating
S1: HR(Rs>99.8%, Rp>99.5%, GDDRsp |<20 fs^2|) @ 1020-1040 nm, AOI=45 deg
Perpendicularity error: <5 arcmin
Parallelism error: <5 arcsec
Material: UVFS Corning 7980 OF grade
Chips: <0.2 mm
Dimensions, mm: 40.0 (+0.0/-0.15) x 14.0 mm (+0.0/-0.15 mm)
Clear aperture: ≥40.0 x 12.0 mm
Protective chamfers: 0.1-0.25 mm x 45°
4
€50.00
9769066
NEW
LIDT: 1 J/cm2, 10 ns, 10 Hz, 266 nm
Wedge / Parallelism error: <1arcmin
Surface quality, S-D: 20-10
S2: uncoated
S1: HR (Rs>99%, Rp>98%) @ 266 nm
Clear Aperture: >90
Material: UVFS
Dimensions, mm: 30 x 15 (+0/-0.1) x 5 (±0.1)
Coatings:
Protective chamfers: 0.1-0.25 mm x 45°
2
€50.00
9769076
NEW
S1: HR (R>98.5) @ 266nm
Protective chamfers: 0.1-0.25 mm x 45°
Wedge / Parallelism error: <1arcmin
Surface quality, S-D: 20-10
S2: uncoated
Material: UVFS
Clear Aperture: >90
LIDT: 1 J/cm2, 10 ns, 10 Hz, 266 nm
Dimensions, mm: 12.7 (+0/-0.1) x 6 (±0.1)
Coatings:
2
€50.00
9769856
NEW
S1: HR(R>95%) @ 390-470 + HT(T>95%) @ 780-940 nm, AOI = 45°
Thickness, mm: 6 (±0.1)
Surface quality, S-D: 20-10
Dimensions, mm: Ø25.4 (+0/-0.1)
S2: AR(R<0.9%) @ 780-940 nm, AOI = 45°
Protective chamfers: <0.1-0.25 mm x 45°
Parallelism error: <1 arcmin
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Coatings:
Clear aperture: >90%
Material: UVFS
1
€50.00
9770257
NEW
Dimensions, mm: Ø12.7 (+0/-0.1) x 6 (±0.1)
S1: HR (Rsp>99.5%)@1625nm, AOI=45° (e-beam coating)
Wedge / Parallelism error: <1 arcmin
Surface quality, S-D: 20-10
S2: uncoated
Clear Aperture: >90
Flatness, PV, before coating: <λ/10 @ 632.8nm
Coatings:
Material: BK7
Protective chamfers: 0.1-0.25 mm x 45°
5
€50.00
9770357
NEW
Material: N-BK7
S1 Surface quality, S-D: 20-10 S-D
S1 Flatness, PV: <λ/10@ 632.8 nm
S2: Uncoated
S1: HRs>99.5%, HRp>99% @ 413 nm, AOI=40°-50°
Parallelism error: <30 arcsec
Dimensions, mm: Ø25.4 (+0/-0.1) x 6 (±0.1)
Coatings:
Clear aperture: >90 %
Protective chamfers: 0.2-0.4 mm x 45°
2
€50.00
9770427
NEW
Remarks:
Part Number: 13121
Part Name: MP-16x16x3-1040+520-45
Aperture dimensions: 20 mm x 20 mm (+0/-0.1 mm)
Drawing: 13121_Rev.02
S1(^): HRsp>99.5% @ 1020-1040 nm + 510-520 nm, AOI=44.5-45.5° IAD
3
€50.00
9770487
NEW
Protective chamfers: 0.1-0.3 mm x 45 deg
Thickness, mm: 5 mm (+/-0.1 mm)
S2 Surface quality, S-D: polished
S1 Surface quality, S-D: 20-10 S-D
Surface flatness S1: S1(^): HR(R>99.8%) @ 1534 nm, HT(T>99.7%) @ 1000-1030 nm, AOI=0 deg
Parallelism error: <1 arcmin
Material: Fused Silica
Coatings:
Clear aperture: >90 %
Chips: <0.2 mm
Aperture: 40 mm x 10 mm (+0/-0.1 mm)
S2: AR(R<0.1%) @ 1000-1030 nm, AOI=0 deg
4
€50.00
9771867
NEW
Angle of Incidence (AOI), °: 45
Protective chamfers: <0.25 mm x 45°
Wavelength, nm: 400+800
Surface quality, S-D: 20-10
Reflectivity, %: Rs>99.3; Rp>98.5
Parallelism error: <1 arcmin
Material: UVFS
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Clear Aperture: >90
Dimensions, mm: Ø38.1 (+0/-0.1) x 5 (±0.1)
2
€50.00
9774397
NEW
S2: -
Wedge / Parallelism error: <1arcmin
Thickness, mm: 5 (±0.1)
Surface quality, S-D: 20-10
Protective chamfers: 0.1-0.25 mm x 45°
Material: UVFS (Corning 7980 0F)
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings:
Clear Aperture: >90
S1: HR (Ravg>96%) @ 250-450 nm
1
€50.00
9774407
NEW
Protective chamfers: 0.1-0.25 mm x 45°
Thickness, mm: 5 (±0.1)
Surface quality, S-D: 20-10
S1: HR (Ravg>96%) @ 250-450 nm
Wedge / Parallelism error: <1arcmin
Material: UVFS (Corning 7980 0F)
Dimensions, mm: Ø12.7 (+0/-0.1)
Coatings:
Clear Aperture: >90
S2: -
2
€50.00
9774467
NEW
S2: polished
Thickness, mm: 5 mm (+/-0.1 mm)
S1: HR(Ravg>99.9%) @ 1030 nm, AOI=55.5 deg, sputtering coatings
Deviation from drawing:
Coatings:
1
€50.00
9777227
NEW
Material: UVFS (Corning 7980 0F)
Centration error: <3 arcmin
Surface quality: 20-10 S-D
S2: uncoated
S1: HR(R>99%)@370-400nm, AOI=0deg
Edge thickness, mm: 5 (+/-0.1mm)
Diameter, mm: 25.4 (+0/-0.1mm)
Coatings:
Chamfer: 0.2 - 0.4 mm @ 45°
S1 Flatness, PV IR S2 Flatness, PV: L/4 @ 633nm per CA
Clear aperture: >90%
1
€50.00
9781348
NEW
Protective chamfers: <0.25 mm x 45°
Thickness, mm: 6.0 mm (+/-0.1 mm)
Surface quality, S1/S2: 10/5 S/D (after coatings 40/20 S/D)
S1 Flatness, PV IR S2 Flatness, PV: <λ/10@633 nm (after coatings <λ/6@633 nm)
S1: HR(Ravg>99.5%)@514 nm + 1028 nm, AOI= 45°
Parallelism error: <5 arcmin
Material: UVFS (Corning 7980 0F)
Diameter, mm: 50.8 mm (+0.0/-0.1 mm)
Coatings: e-Beam
Clear aperture: >90%
S2: uncoated
2
€50.00
9781358
NEW
Clear aperture: >90%
S2: BBAR(Ravg<2.0%)@400 nm - 700 nm, AOI= 45°
WFD, P-V: <λ/10@633 nm
Thickness, mm: 6.0 mm (+/-0.1 mm)
Surface quality, S1/S2: 10/5 S/D (after coatings 40/20 S/D)
S1 Flatness, PV IR S2 Flatness, PV: <λ/10@633 nm (after coatings <λ/6@633 nm)
S1: HR(Ravg>99.5%)@514 nm + 1028 nm, AOI= 45°
Protective chamfers: <0.25 mm x 45°
Parallelism error: <5 arcmin
Material: UVFS (Corning 7980 0F)
Coatings: e-Beam
Diameter, mm: 38.1 mm (+0.0/-0.1 mm)
2
€50.00
9781628
NEW
Thickness, mm: 3 mm (+/-0.1 mm)
S2 Surface quality, S-D: inspection polished
S1 Surface quality, S-D: 40-20 S-D
S1: PR(R=85% +/-1%) @ 1064 nm, AOI=0 deg
Surface flatness S1: S2: uncoated
Parallelism error: < 1 arcmin
Material: UVFS
Diameter, mm: 6 mm (+0/-0.1 mm)
Coatings:
Clear aperture: >5 mm diameter, central area
Chips: <0.2 mm
Protective chamfers: 0.1-0.2 mm x 45 deg
Surface flatness S2: not specified
3
€50.00
9781638
NEW
Parallelism error: < 1 arcmin
Thickness, mm: 3 mm (+/-0.1 mm)
S2 Surface quality, S-D: inspection polished
S1 Surface quality, S-D: 40-20 S-D
Surface flatness S2: not specified
Surface flatness S1: S2: uncoated
Protective chamfers: 0.1-0.2 mm x 45 deg
Material: UVFS
Dimensions, mm: 6 mm x 6 mm (+0/-0.1 mm)
Coatings:
Clear aperture: 5 mm x 5 mm, central area
Chips: <0.2 mm
S1: PR(R=85% +/-1%) @ 1064 nm, AOI=0 deg
3
€50.00
9788728
NEW
Clear aperture: >90%
S2: uncoated
Wedge / Parallelism error: <1 arcmin
Thickness, mm: 6.35 (±0.1)
S2 Surface quality, S-D: 60-40
S1 Surface quality, S-D: 20-10
Protective chamfers: 0.1-0.3 mm x 45°
Material: UVFS
LIDT: >5 J/cm² @ 1064 nm, 10 ns, 10 Hz
S1 Flatness, PV IR S2 Flatness, PV: <λ/4 @ 632.8 nm
Coatings on S1:
Dimensions, mm: Ø25.4 (±0.1)
9
€50.00
9789778
NEW
Protective chamfers: <0.1-0.25 mm x 45°
Clear aperture: >90%
S2: Uncoated
S2 Surface quality: Commercially polished
S1: HR(Rs>99.0%, Rp>99.0%) @ 370-430 nm, AOI = 45°
S1 Flatness, PV: <λ/8-λ/10 @ 632.8 nm per CA
Thickness, mm: 6 (±0.1)
Parallelism error: <3 arcmin
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1)
Coatings:
S1 Surface quality, S-D: 20-10
20
€50.00
9789788
NEW
S1 Surface flatness, PV: <λ/8 @ 632.8 nm per CA
Thickness, mm: 6 (±0.1)
S2: Uncoated
S2 Surface quality: Commercially polished
S1: HR (Rsp>99%) @ 400-550 nm
S1 Surface quality, S-D: 20-10
Protective chamfers: <0.1-0.3 mm x 45°
Parallelism error: <3 arcmin
Material: UVFS
Dimensions, mm: Ø12.7 (+0/-0.1)
Coatings:
Angle of Incidence (AOI), °: 45
Clear Aperture: >85
1
€50.00
9790849
NEW
S1: PR(Rp=99.0%(+0.5%,-1.0%))@770-795 nm, AOI= 45°
Thickness, mm: 6.0 mm (+/-0.1 mm)
Surface quality, S1/S2: 10/5 S/D (after coatings 20/10 S/D)
S1 Flatness, PV IR S2 Flatness, PV: <λ/10@633 nm (after coatings <λ/6@633 nm)
S2: ARsp@400-795 nm, AOI= 45°
Protective chamfers: <0.25 mm x 45°
Parallelism error: <5 arcmin
Material: UVFS (Corning 7980 0F)
Diameter, mm: 25.4 mm (+0.0/-0.1 mm)
Clear aperture: >90%
Coatings: e-Beam, low GDD, Rp @780 nm
16
€50.00
9790859
NEW
S2: ARsp@400-795 nm, AOI= 45°
S1: PR(Rp=99.0%(+0.5%,-1.0%))@770-795 nm, AOI= 45°
Thickness, mm: 6.0 mm (+/-0.1 mm)
Surface quality, S1/S2: 10/5 S/D (after coatings 20/10 S/D)
Clear aperture: >90%
Parallelism error: <5 arcmin
Coatings: e-Beam, low GDD, Rp @780 nm
Material: UVFS (Corning 7980 0F)
Diameter, mm: 38.1 mm (+0.0/-0.1 mm)
S1 Flatness, PV IR S2 Flatness, PV: <λ/10@633 nm (after coatings <λ/6@633 nm)
Protective chamfers: <0.25 mm x 45°
4
€50.00
9790959
NEW
Thickness (thinnest part, marked with engraved square): 5.0 mm (+/-0.1 mm)
Wedge / Parallelism error: 0.5° (±0.05°) (wedge is on S1)
Surface quality, S1/S2: 10/5 S/D (after coating 20/10 S/D)
S1 Flatness, PV IR S2 Flatness, PV: <λ/10@633 nm (after coating <λ/8@633 nm)
S2: AR(Rs<0.65%)@343 + (R<1.2%)@515 + (R<0.8%)@1030 nm, AOI=42°-48°
Protective chamfers: <0.25 mm x 45°
Material: UVFS (Corning 7980 0F)
Item: 00014517
Diameter, mm: 25.4 mm (+0.0/-0.1 mm)
Coatings: IBS
Clear aperture: >90%
S1: HR(Rs>99.9%, Rp>99.8%)@343 nm, HT(Ts>98%, Tp>98%)@515 nm + 1030 nm, AOI=42°-48°
15
€50.00
9791509
NEW
Surface quality, S-D: 10-5 (after coatings 20-10)
Thickness, mm: 5 (±0.1)
S2: Uncoated
S1: HR (R(s+p)/2>99.5%) @ 1480-1550 nm, AOI 45°
Protective chamfers: <0.25 mm x 45°
Material: UVFS (Corning 7980 0F)
S1 Flatness, PV IR S2 Flatness, PV: <λ/10 @ 632.8 nm (after coatings <λ/7- λ/8)
Clear aperture %: >90
Dimensions, mm: Ø25.4 (+0/-0.1)
Coatings, EB:
Parallelism error: <5 arcsec
2
€50.00
9798849
NEW
S1: HR (Rs>99.5%, Rp>99.0%) @ 343-355 nm, AOI 45°
Wedge / Parallelism error: <3 arcmin
Thickness, mm: 9.5 (±0.1)
Surface quality, S-D: Grounded (S2)
S2: Uncoated
Protective chamfers: <0.25 mm x 45°
Material: UVFS C7980
S1 Flatness, PV IR S2 Flatness, PV: Dimensions, mm: Ø38.1 (+0.0/-0.1)
Coatings:
Clear Aperture: >90
Surface quality, S-D: 20-10 (S1)
1
€50.00
9798859
NEW
Clear Aperture: >90
S2: Uncoated
Wedge / Parallelism error: <3 arcmin
Thickness, mm: 3 (±0.1)
Surface quality, S-D: Grounded (S2)
Surface quality, S-D: 20-10 (S1)
S1: HR (Rs>99.5%, Rp>99.0%) @ 343-355 nm, AOI 45°
Protective chamfers: <0.25 mm x 45°
Material: UVFS C7980
S1 Flatness, PV IR S2 Flatness, PV: Coatings:
Dimensions, mm: 20.0 x 25.0 (+0.0/-0.1)
2
€50.00
9798999
NEW
Reflectivity (average), %: >99.5
Wedge / Parallelism error: <1 arcmin
Wavelength, nm: 760-840
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
GDD, fs²: s-pol: ±10; p-pol: ±20
LIDT: 0.4 J/m² @800 nm
AOI, °: 45
Dimensions, mm: Ø25.4 (+0/-0.1) x 7 (±0.1)
Clear Aperture: >90%
Protective chamfers: <0.25 mm x 45°
Material: UVFS
2
€50.00
9799029
NEW
Protective chamfers: 0.1-0.3 mm x 45°
Thickness, mm: 6 (±0.1)
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 @ 632.8 nm
S1: HR (Ravg>99.5%) @ 343-355 nm
Wedge / Parallelism error: <1 arcmin
Material: UVFS
Dimensions, mm: Ø50.8 (+0/-0.1)
Coatings:
Clear Aperture: >90
Angle of Incidence (AOI), °: 45
S2: uncoated
5
€50.00
9799269
NEW
S1: HR(Rsp>99.5%)@1550nm
Wedge / Parallelism error: <5 arcsec
Surface quality, S-D: 20-10
S2: -
Protective chamfers: <0.25 mm x 45°
Material: UVFS Corning 7980 OF grade
Dimensions, mm: Ø25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Coatings:
1
€50.00
9800210
NEW
Coatings: HR (Rs>99.0; Rp>99.0) @ 1140 nm ± 20 nm,
Rear Surface: Polished
Material: UVFS
Dimensions, mm: Ø25.4 x 6mm
Surface Quality, S-D: 20-10
Clear Aperture: 90%
LIDT: >10 J/cm², 10 ns, 10 Hz, 1140 nm
3
€50.00
9800220
NEW
Material: UVFS
Surface Quality, S-D: 20-10
Rear Surface: Polished
LIDT: >10 J/cm², 10 ns, 10 Hz, 1140 nm
Dimensions, mm: 20 x 40 x 5 mm
Clear Aperture: 90%
Coatings: HR (Rs>99.0; Rp>99.0) @ 1140 nm ± 20 nm,
1
€50.00
9801510
NEW
Material: UVFS (Corning 7980 0F)
Thickness, mm: 6.0 mm (+/-0.1 mm)
Surface quality, S1/S2: 20/10 S/D (40/20 S/D after coating)
S1 Flatness, PV IR S2 Flatness, PV: <λ/8@633 nm (before coating)
S2: uncoated
S1: HR(R>99.0%)@343 nm + HR(R>99.5%)@515 nm + 1030 nm, AOI=45°
Parallelism error: <1 arcmin
Diameter, mm: 50.8 mm (+0.0/-0.1 mm)
Coatings:
Clear aperture: >90%
Protective chamfers: <0.25 mm x 45°
1
€50.00
9801670
NEW
Protective chamfers: 0.1-0.3 mm x 45 deg
S2 Surface quality, S-D: commercially polished
S1 Surface quality, S-D: 20-10 S-D
Surface flatness (PV), S1: < L/10 @ 632.8 nm per 17x12 ellipse, any point in clear aperture
S1(^): HRp > 99.9% GDDRp <50 fs^2 @ 511-516 + 1022-1032 nm, AOI=45 deg, IBS, high LIDT design
Thickness, mm: 9 mm (+/-0.1 mm)
Perpendicularity error: +/- 5 arcmin between S1 and base A (28 mm x 9 mm)
Parallelism error between S1 and S2: < 30 arcsec
Material: UVFS
Dimensions, mm: 28 mm x 25 mm (+0/-0.1 mm)
Coatings:
Clear aperture: 27 mm x 24 mm rectangular
base A (28 mm x 9 mm): Cr+Gold coating, minimum coated area 28 mm x 7.5 mm
S2: stress compensation
1
€50.00
9801690
NEW
Protective chamfers: 0.1-0.3 mm x 45 deg
Thickness, mm: 9.5 mm (+/-0.1 mm)
Surface quality, S1/S2: 20-10 S-D
Surface flatness (PV), S1: < L/10 @ 632.8 nm per 17x12 ellipse, any point in clear aperture
S2: HRp > 99.9% GDDRp <50 fs^2 @ 511-516 + 1022-1032 nm, AOI=45 deg, IBS high LIDT design
S1(^): HRs >99.9%, GDDRs <50 fs^2 @ 341-344 nm, AOI=45 deg, IBS high LIDT design
Perpendicularity error: +/- 5 arcmin between S1 and base A (40 mm x 9.5 mm)
Parallelism error between S1 and S2: < 30 arcsec
Material: UVFS
Dimensions, mm: 40 mm x 25 mm (+0/-0.1 mm)
Coatings:
base A (40 mm x 9.5 mm): Cr+Gold coating, minimum coated area 40 mm x 7.5 mm
Clear aperture: 38 mm x 23 mm rectangular
1
€50.00
9802150
NEW
Parallelism error: < 1 arcmin
Thickness, mm: 3 mm (+/-0.1 mm)
Surface quality: 20-10 S-D
S1 Flatness, PV IR S2 Flatness, PV: < L/8 @ 632.8 nm
S2: uncoated
Protective chamfers: 0.1-0.3 mm x 45 deg
Material: FS
Diameter, mm: 12.7 mm (+0/-0.1 mm)
Coatings:
Clear aperture: >85 %
Chips: < 0.3 mm
S1(^): HR(Rs>99.7, Rp>99.3%) @ 515 nm, AOI=45 deg, high LIDT design
4
€50.00
9803720
NEW
S2: uncoated, polished
Protective chamfers, S1: 0.4-0.6 mm x 45 deg
Wedge, S1: 1 deg +/-30 arcmin
Thickness, mm: 9.5 mm (+/-0.1 mm) thin edge
S2 Surface quality, S-D: commercial polish
S1 Surface quality, S-D: 20-10 S-D
Surface flatness (PV), S1: Protective chamfers, S2: 0.1-0.2 mm x 45 deg
Chips: <0.3 mm
Material: UVFS
Diameter, mm: 18 mm (+0/-0.1 mm)
Coatings:
Clear aperture: 16 mm diameter, central area
S1: HR(Rsp>99.95%) @ 1020-1050 nm, AOI=35-55 deg, GDDRsp +/-20 fs^2 @ 1035 nm, AOI=45 deg, IBS, field-node optimized
3
€50.00
9805530
NEW
ROC S1, mm: -1000 (±3%)
Surface quality: 20-10 S-D
Surface irregularity, PV: <λ/8 @ 632.8 nm
S2: AR (R<0.5%) @ 400-550 nm, AOI 0°
ROC2, mm: ∞
Protective chamfers: <0.25 mm x 45°
Material: BK7
Diameter, mm: 25.4 (+0/-0.1)
Clear aperture: > 90%
Centration error: <3 arcmin
Center thickness, mm: 5 (±0.1)
S1: PR (R=99.94±0.04%) @ 400-550 nm, AOI 0°
5
€50.00
9806890
NEW
Centration error: <3 arcmin
S1 ROC, mm: -114.25 ±0.5%
S2: Uncoated
S2 Surface flatness, PV: <λ/4 @ 632.8 nm
S1: PR(R=95 +2/-3%) @ 397 nm + PR (R=95 +2/-4%) @ 854 nm + PR (R=95 +2/-4%) @ 866 nm
S1/S2 Surface quality, S-D: 40-20
S1 Surface irregularity, PV: <λ/4 @ 632.8 nm (before coatings)
Protective chamfers: <0.25 mm x 45°
Material: UVFS (Corning 7980 0F)
Focal length, mm: -250
Dimensions, mm: Ø12.7 (+0/-0.1)
Wavelength, nm: 632.8
Clear Aperture: >90
Center thickness, mm: 2 (±0.1)
Coatings:
2
€50.00
9810771
NEW
S1: HR (R>99.5%) @ 740-840 nm, AOI 0°
S1 Flatness, PV IR S2 Flatness, PV: <λ/6 @ 632.8nm per CA
Surface quality, S-D: 20-10
S2: -
Material: UVFS
Dimensions, mm: 25.4 (+0/-0.1) x 6 (±0.1)
|GDDR| @ 800nm: <7 fs²
Coatings:
Clear Aperture: >90
Protective chamfers: 0.1-0.25 mm x 45°
Wedge / Parallelism error: <1arcmin
1
€50.00
9811921
NEW
Material: UVFS
Wavelength, nm: 500-532
Surface quality, S-D: 20-10
Reflectivity (average), %: >99.5
Wedge / Parallelism error: <1 arcmin
GDD, fs²: s-pol: ±10; p-pol: ±20
Dimensions, mm: 12.7 x 12.7 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90%
AOI, °: 45
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
2
€50.00
9812251
NEW
S2: uncoated
Thickness, mm: 4 mm (+/-0.1 mm)
S2 Surface quality, S-D: inspection polished
S1 Surface quality, S-D: 40-20 S-D
Surface flatness S2: not specified
S1: HR(R>90%) @ 1064 nm, AOI=0 deg
Protective chamfers: 0.1-0.2 mm x 45 deg
Parallelism error: < 1 arcmin
Material: N-BK7
Dimensions, mm: 6 mm x 6 mm (+0/-0.1 mm)
Coatings:
Clear aperture: 5 mm x 5 mm, central area
Chips: <0.2 mm
Surface flatness S1:
5
€50.00
9812371
NEW
S1 Flatness, PV IR S2 Flatness, PV: <λ/8-λ/10 @ 632.8 nm per CA
Surface quality, S-D: 20-10
S2: -
S1: HR (Rs>99%, Rp>98.5%) @ 257.5 nm
Material: UVFS
LIDT: >0.9 J/cm2 @ 257.5 nm, 10 ns, 100 Hz
Clear Aperture: >90
Dimensions, mm: 25.4 (+0/-0.1) x 5 (±0.1)
Coatings:
Protective chamfers: 0.1-0.25 mm x 45°
Wedge / Parallelism error: <1arcmin
1
€50.00
9812631
NEW
Material: UVFS
Wedge / Parallelism error: <1arcmin
Surface quality, S-D: 20-10
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8nm per CA
S2: -
Protective chamfers: 0.1-0.25 mm x 45°
Dimensions, mm: 30 (+0/-0.1) x 9.5 (±0.1)
Coatings:
Clear Aperture: >90
S1: HR (Rs>99%, Rp>98.5%) @ 266 nm, AOI 45°
3
€50.00
9813351
NEW
S2: Uncoated
Substrate Thickness, mm: 10 (±0.1)
S1: HR(Rs>99.8%, GDDRs <20 fs^2) @ 1024-1036 nm, AOI = 45°
S1 Surface quality, S-D: 40-20
S1 Surface Flatness, PV: <λ/8 @ 632.8nm per inch
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions of first subtrate, mm: 45 x 24 (+0/-0.1)
Coatings:
Clear aperture: >90%
90° angle tolerance: ±30 arcsec
Pyramidal error: <5 arcmin
2
€50.00
9813401
NEW
Protective chamfers: <0.25 mm x 45°
Substrate Thickness, mm: 10 (±0.1)
S2: Uncoated
S1: HR(Rs>99.8%, GDDRs <20 fs^2) @ 1024-1036 nm, AOI = 45°
S1 Surface quality, S-D: 40-20
90° angle tolerance: ±30 arcsec
Pyramidal error: <5 arcmin
Material: UVFS
Dimensions of first subtrate, mm: 35 x 15 (+0/-0.1)
Coatings:
Clear aperture: >90%
S1 Surface Flatness, PV: <λ/8 @ 632.8nm per inch
2
€50.00
9813411
NEW
Substrate Thickness, mm: 10 (±0.1)
S2: Uncoated
S1: HR(Rs>99.8%, GDDRs <20 fs^2) @ 1024-1036 nm, AOI = 45°
S1 Surface quality, S-D: 40-20
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions of first subtrate, mm: 45 x 15 (+0/-0.1)
Coatings:
Clear aperture: >90%
90° angle tolerance: ±30 arcsec
Pyramidal error: <5 arcmin
S1 Surface Flatness, PV: <λ/8 @ 632.8nm per inch
2
€50.00
9813421
NEW
Protective chamfers: <0.25 mm x 45°
S2: Uncoated
S1: HR(Rs>99.8%, GDDRs <20 fs^2) @ 1024-1036 nm, AOI = 45°
S1 Surface quality, S-D: 40-20
Pyramidal error: <5 arcmin
Substrate Thickness, mm: 10 (±0.1)
Material: UVFS
Dimensions of first subtrate, mm: 50 x 15 (+0/-0.1)
Coatings:
Clear aperture: >90%
90° angle tolerance: ±30 arcsec
S1 Surface Flatness, PV: <λ/8 @ 632.8nm per inch
2
€50.00
9813431
NEW
S1 Surface Flatness, PV: <λ/8 @ 632.8nm per inch
Substrate Thickness, mm: 10 (±0.1)
S2: Uncoated
S1: HR(Rs>99.8%, GDDRs <20 fs^2) @ 1024-1036 nm, AOI = 45°
S1 Surface quality, S-D: 40-20
Pyramidal error: <5 arcmin
Protective chamfers: <0.25 mm x 45°
Material: UVFS
Dimensions of first subtrate, mm: 60 x 15 (+0/-0.1)
Coatings:
90° angle tolerance: ±30 arcsec
Clear aperture: >90%
2
€50.00
9815771
NEW
Surface quality, S-D: 20-10
Wavelength, nm: 515-532
Reflectivity, %: Rs>99.97, Rp>99.93
Protective chamfers: <0.25 mm x 45°
S1 Flatness, PV IR S2 Flatness, PV: <λ/8 @ 632.8 nm
Angle of Incidence (AOI), °: 45°
Dimensions, mm: ∅25.4 (+0/-0.1) x 5 (±0.1)
Clear Aperture: >90
Material: UVFS
Wedge / Parallelism error: <1 arcmin
12
€50.00
9819651
NEW
LIDT: >10 J/cm2 @ 1342 nm, 100 Hz, 10 ns
Wedge / Parallelism error: <5 arcsec
Surface quality, S-D: 20-10
S2: -
S1: HR(R>99.5%)@1342nm
Material: UVFS Corning 7980 OF grade
Dimensions, mm:   Ø25.4 (+0/-0.1) x 6 (±0.1)
Coatings:
Clear Aperture: >90
Protective chamfers: <0.25 mm x 45°
3
€50.00
Page: first prev next last

HR laser line mirrors (HR) provide optimized performance at certain wavelength and certain angle of incidence (AOI). Mirror consists of substrate and multilayer coating stacks which help to achieve very high reflectivity at specific laser line wavelength at any designed angle of incidence. Laser line HR coatings are used for external beam manipulation applications where even slight losses may be intolerable. Coatings are provided by electron beam evaporation with/without ion assistance coating technique.

  • Provide an optimised performance at certain wavelength and certain angle of incidence (AOI)
  • "Coatings are provided by ion beam sputtering (IBS) or electron beam evaporation with/without ion assistance coating techniques"
  • HR laser line coatings (HR) highly reflect wavelength range of <10% of the central wavelength (CWL). For instance, HR @ 800 nm will reflect wavelength range of 760-840 nm

Is a formal quotation necessary to order?

If so, please fill the following form. Do not forget to specify SKUs of the items and Your billing information:

Did not find what you need?

Please fill this form and we will get back to You:


 Secure payment

Copyright © 2013-present Opticus, UAB. All rights reserved.
